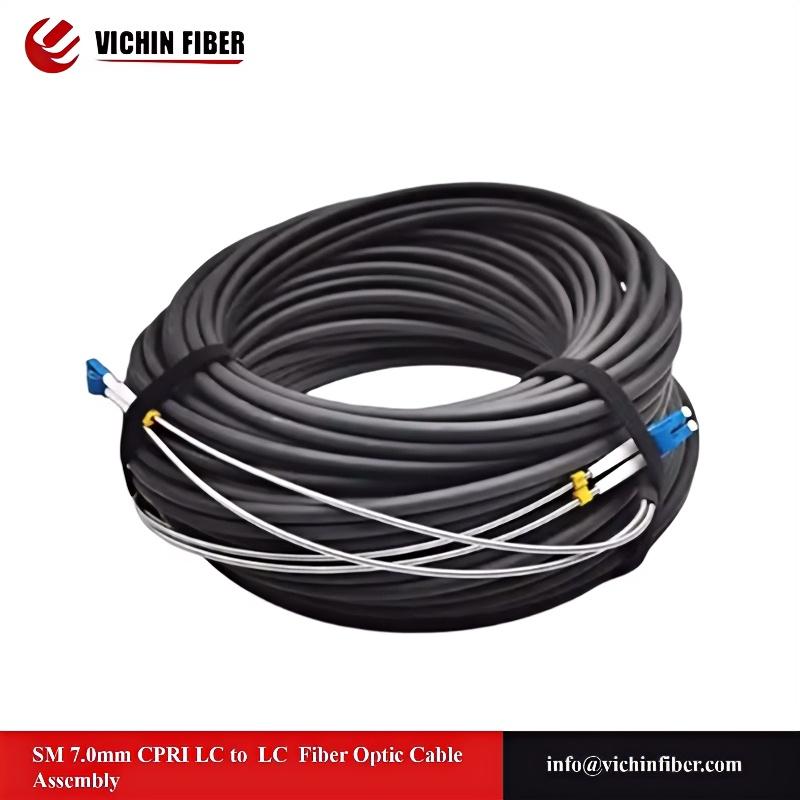

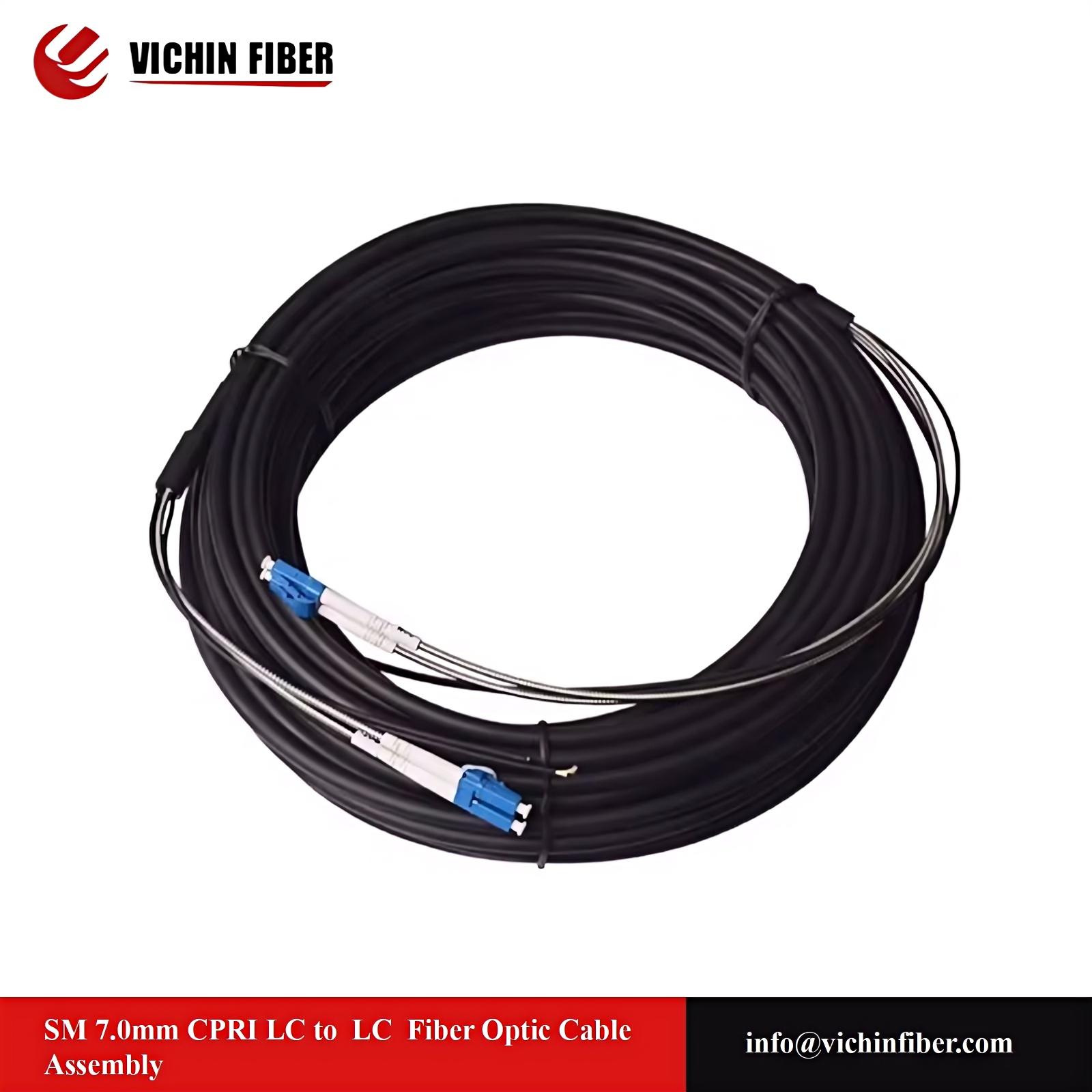

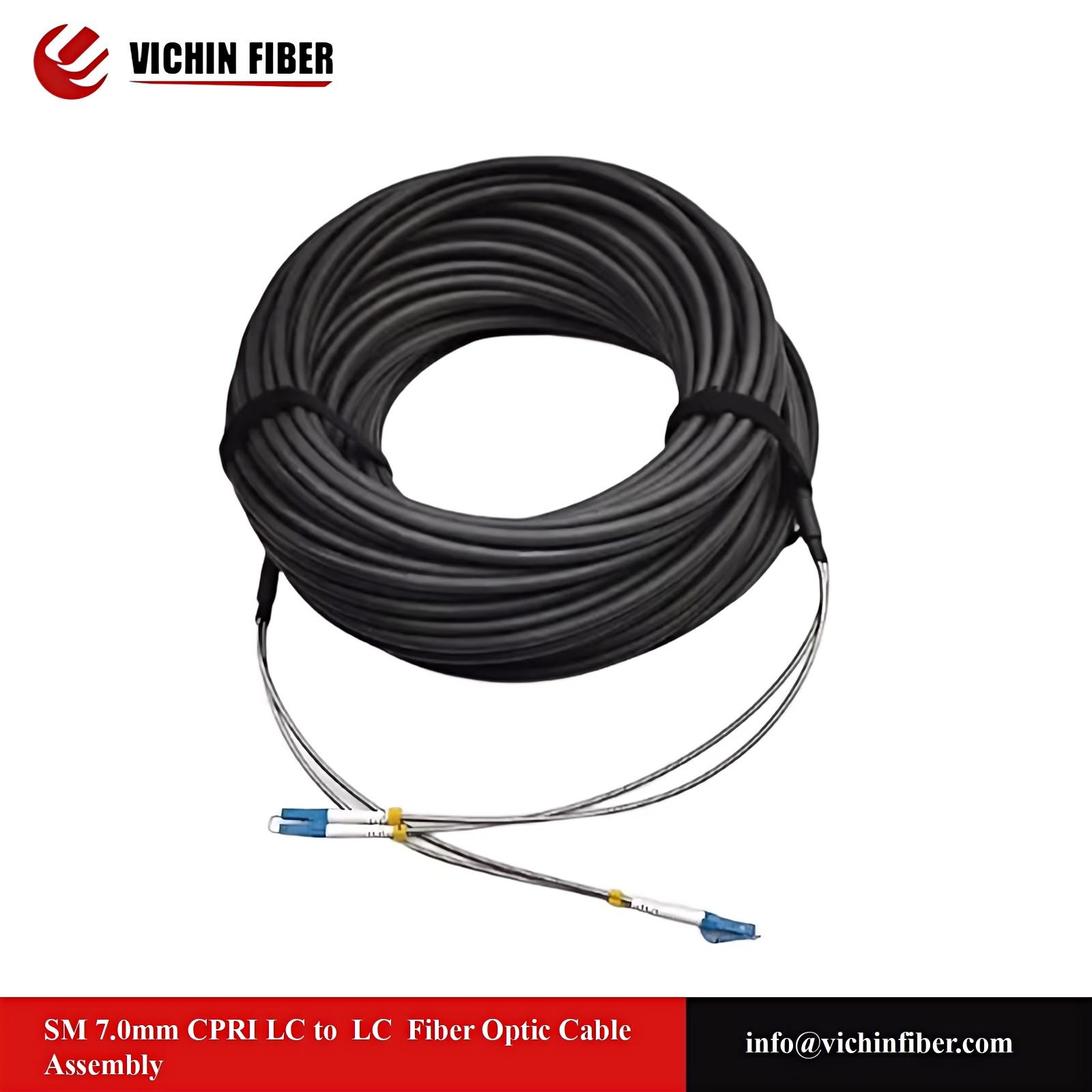

SM 7.0mm CPRI LC to LC Fiber Optic Cable Assembly
The CPRI patch cords are standard size for Duplex LC Connectors, widely used in FTTA,Base station, and the outdoor waterproof condition. we supplies FTTA (Fiber to the Antenna) DLC (Dual LC Connector) SM MM GYFJH 2G.657A patch cord for TD-SCDMA, WCDMA,CDMA2000, Wimax, 2G, 3G, 4G and 5G Base Station BBU-RRU outdoor. Ces produits conviennent à l’application CPRI.
Description
1.PRODUCT DESCRIPTION
| Cable Count | OD (mm) | Weight | Tensile strength | General attenuation | Minimal Bending radius | Storage temperature | ||
| Short term | Long term | Singlemode | Multimode | |||||
| 2 | 7.0±0.2 | 45kg | 900N | 450N | 1310nm ≤0.4dB/km | 850nm ≤3.0dB/km | 20D | –20℃~+70℃ |
2.FEATURES
The CPRI patch cords are used for outdoor RRU transmitting optical signal
and remote fiber feeder etc. Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode and Multimode
500cycles Mechanical life
Widely used in FTTA & FTTH
Used for 4G 5G base station
BBU, RRU, RRH, LTE
