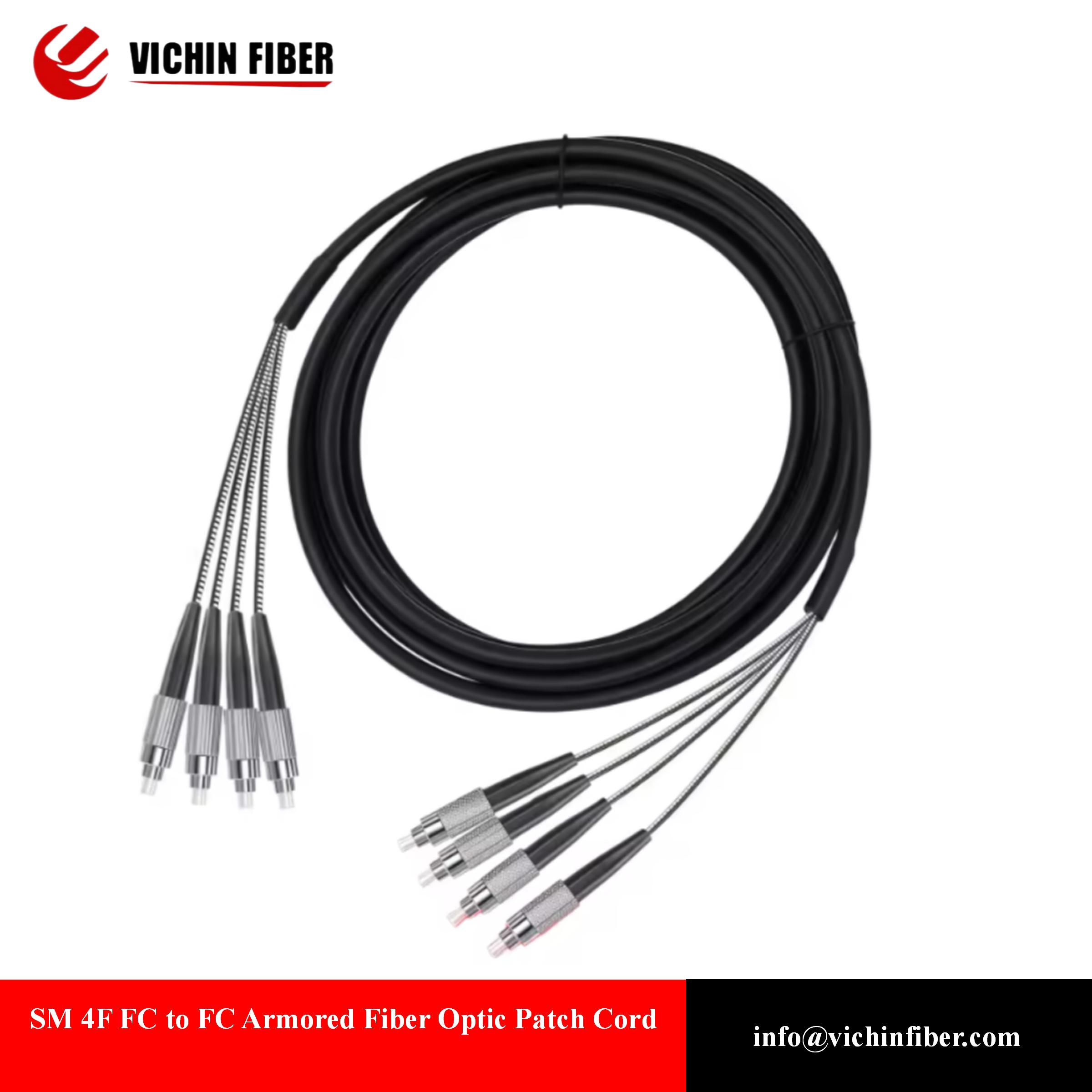

SM 4F FC to FC Armored Fiber Optic Patch Cord
Construire un réseau de fibre optique stable et robuste.High-quality tight-buffered cable protects the fiber optic core, and increases the strength and durability of the fiber.
Description
Specifications
|
Model Number:
|
Armored Fiber Optic Patch Cord
|
Connector Type:
|
FC
|
|
Use:
|
FTTX
|
Length:
|
Customized
|
|
Place of Origin:
|
Ningbo, China
|
Brand:
|
OEM/ODM
|
|
Network:
|
Wireless Lan
|
Fiber Type:
|
OS2
|
|
Min. Bend Radius
(Fiber Core) |
10mm
|
Min. Bend Radius
(Fiber Cable) |
10/5D (Dynamic/Static)
|
|
Fiber count:
|
4 Strand
|
Polish:
|
UPC
|
|
Insertion loss:
|
≤0.3dB
|
Return loss:
|
≥50dB;
|
|
Jacket:
|
PVC/OFNR/LSZH/Plenum(OFNP)
|
Jacket Color:
|
Black
|
|
Cable Diameter
|
3.0mm
|
Laying Method:
|
outdoor cabling
|
|
Operating Temperature (° C)
|
-10~ + 70
|
Storage Temperature (° C)
|
-40 ~ +85
|
|
Exchangeability
|
≤ 0.2dB
|
||
Features
Low insertion loss, high return loss Small, light, high dense connection Standard exact plastic material High credibility and
stability Good in repeatability and exchangeability
