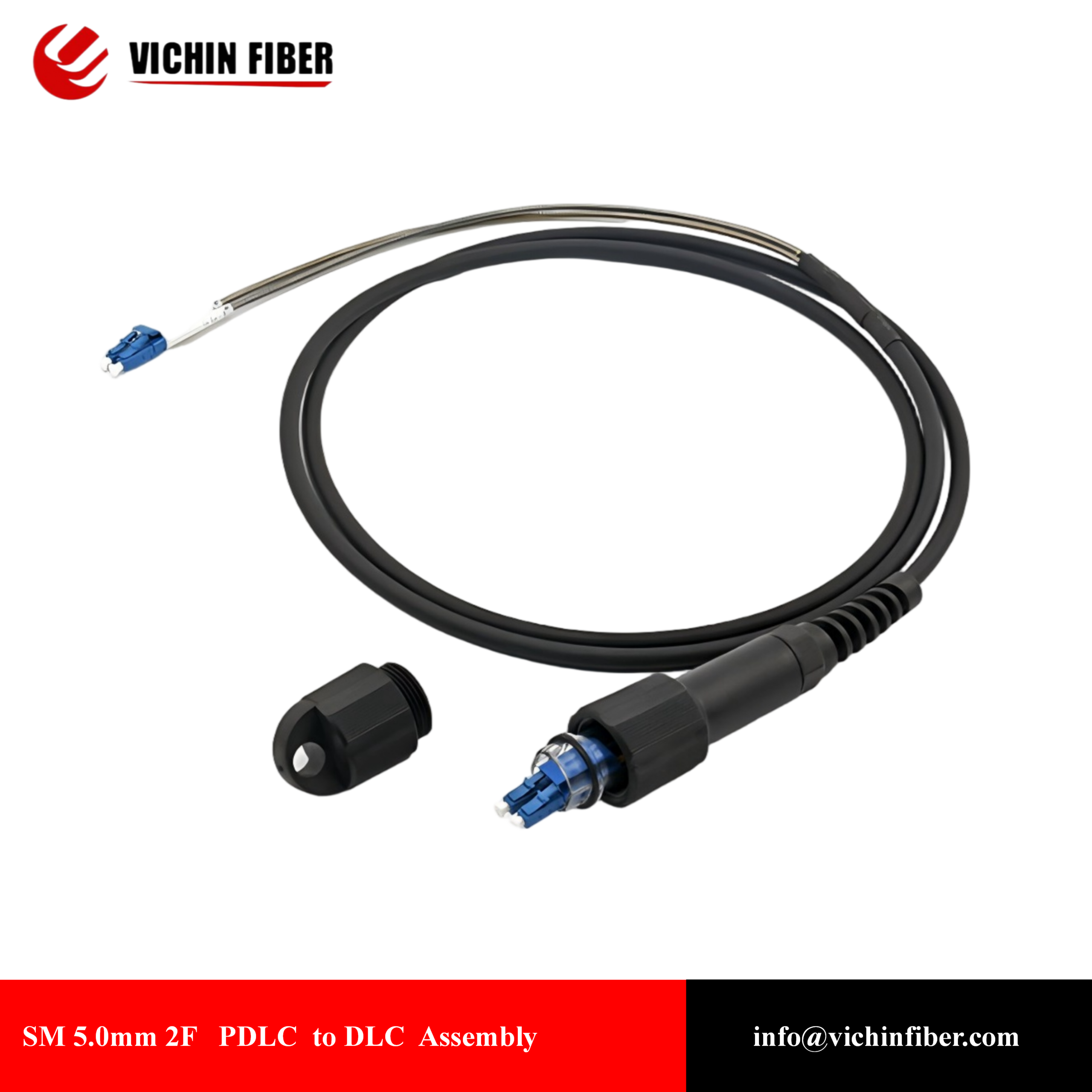

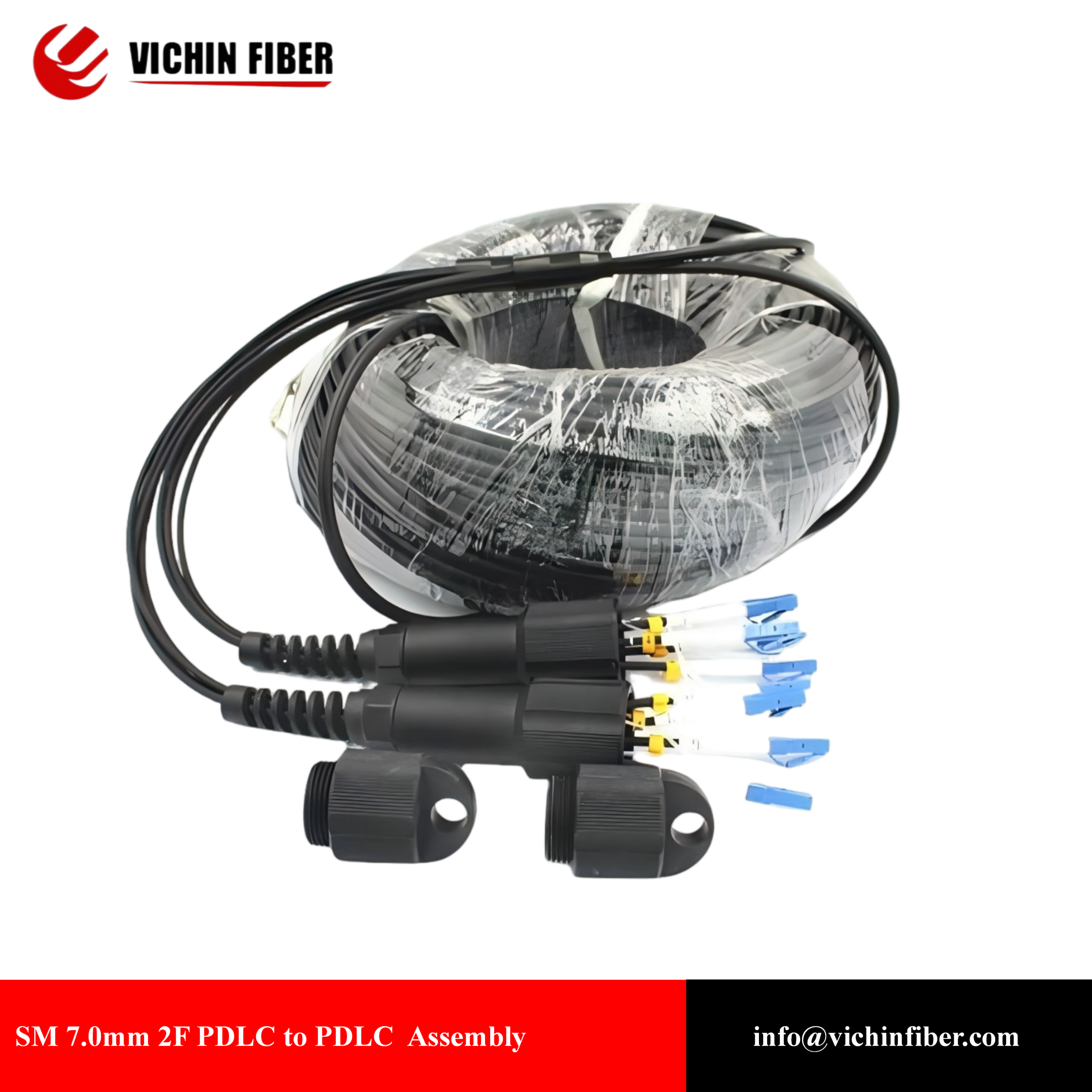

PDLC Outdoor Cable Assembly
Le câble d’extérieur PDLC est une solution de fibre optique haut de gamme et durable, conçue pour des performances fiables dans les environnements extérieurs et industriels difficiles. It features a robust physical design combined with optical precision to ensure stable data transmission for critical network links.
Description
Features
* Standard DLC connector, well connected with standard LC adaptor
* Available Single mode and Multimode
* IP68 water and dust protection
* Compact design
* Broad temperature range and wide range of indoor and outdoor cables
* Easy Operation, reliable and cost-effective installation
Product Parameters
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to+85℃ | |||||
