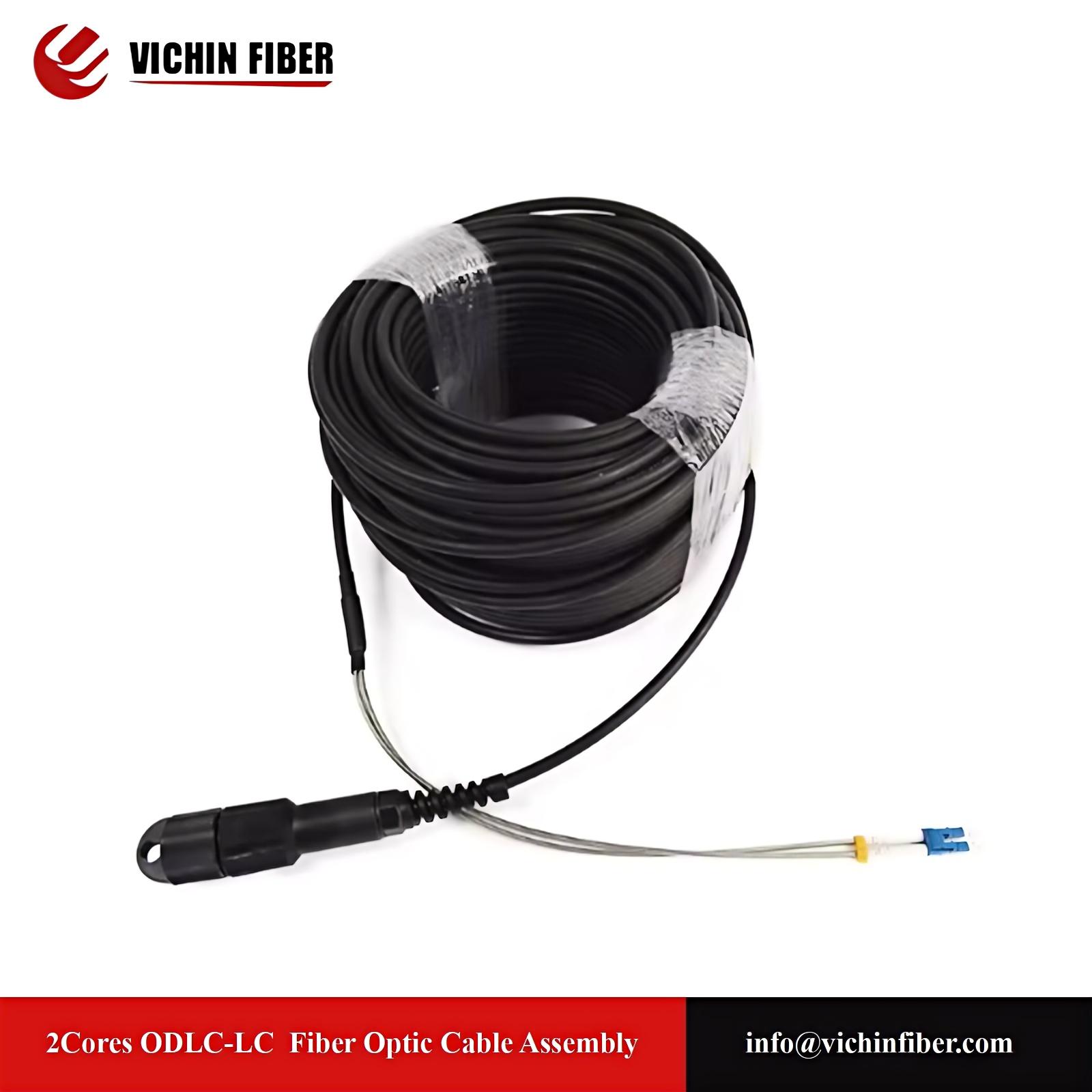

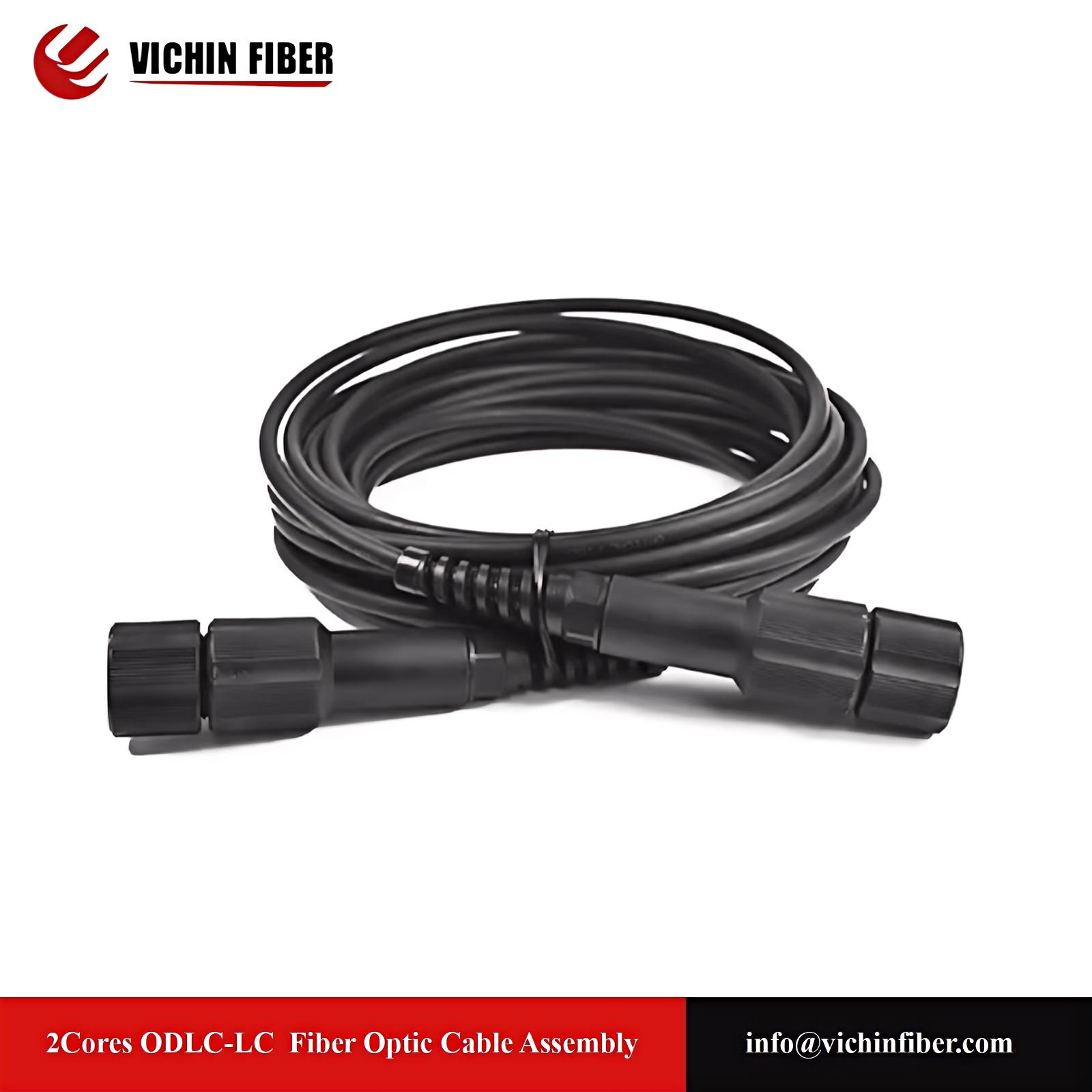

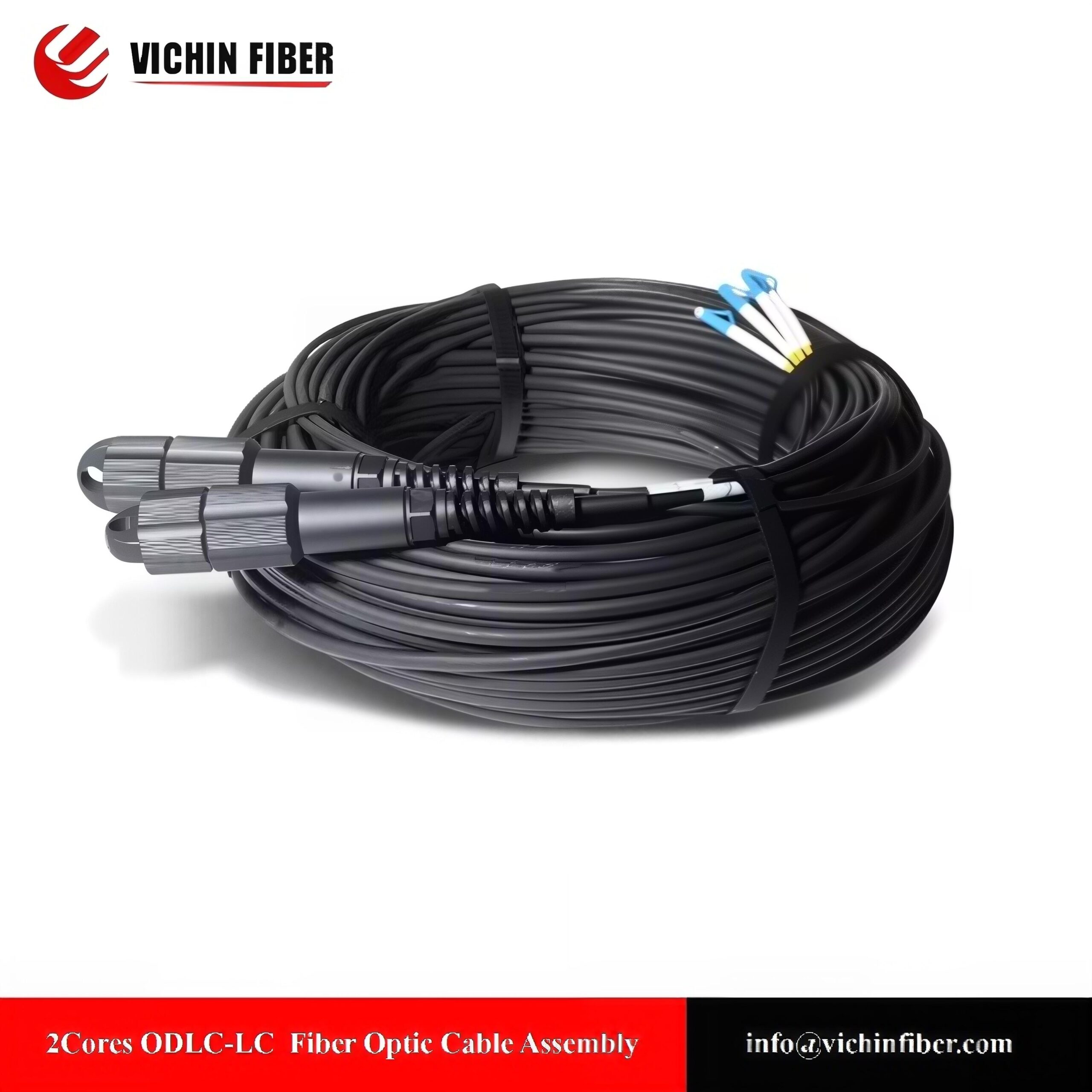

2Cores ODLC-LC Fiber Optic Cable Assembly
Assemblage de câble à fibres optiques ODLC-LC à 2 cœurs
Description
APPLICATION
Multi-purpose Outdoor
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications
FEATURES
Standard DLC connector, well connected with standard LC adaptor
Available Single mode and Multimode
IP67 water and dust protection
Compact design
Broad temperature range and wide range of indoor and outdoor cables
Easy Operation, reliable and cost-effective installation
|
Type
|
SM-UPC
|
SM-APC
|
MM-UPC
|
|||
|
Typical
|
MAX
|
Typical
|
MAX
|
Typical
|
MAX
|
|
|
Insertion loss
|
≤0.1
|
≤0.3dB
|
≤0.15
|
≤0.3dB
|
≤0.05
|
≤0.3dB
|
|
Return loss
|
≥50dB
|
≥30dB
|
≥30dB
|
|||
|
Durability
|
500 mating cycles
|
|||||
|
Working temperature
|
-40 to + 85℃
|
|||||
