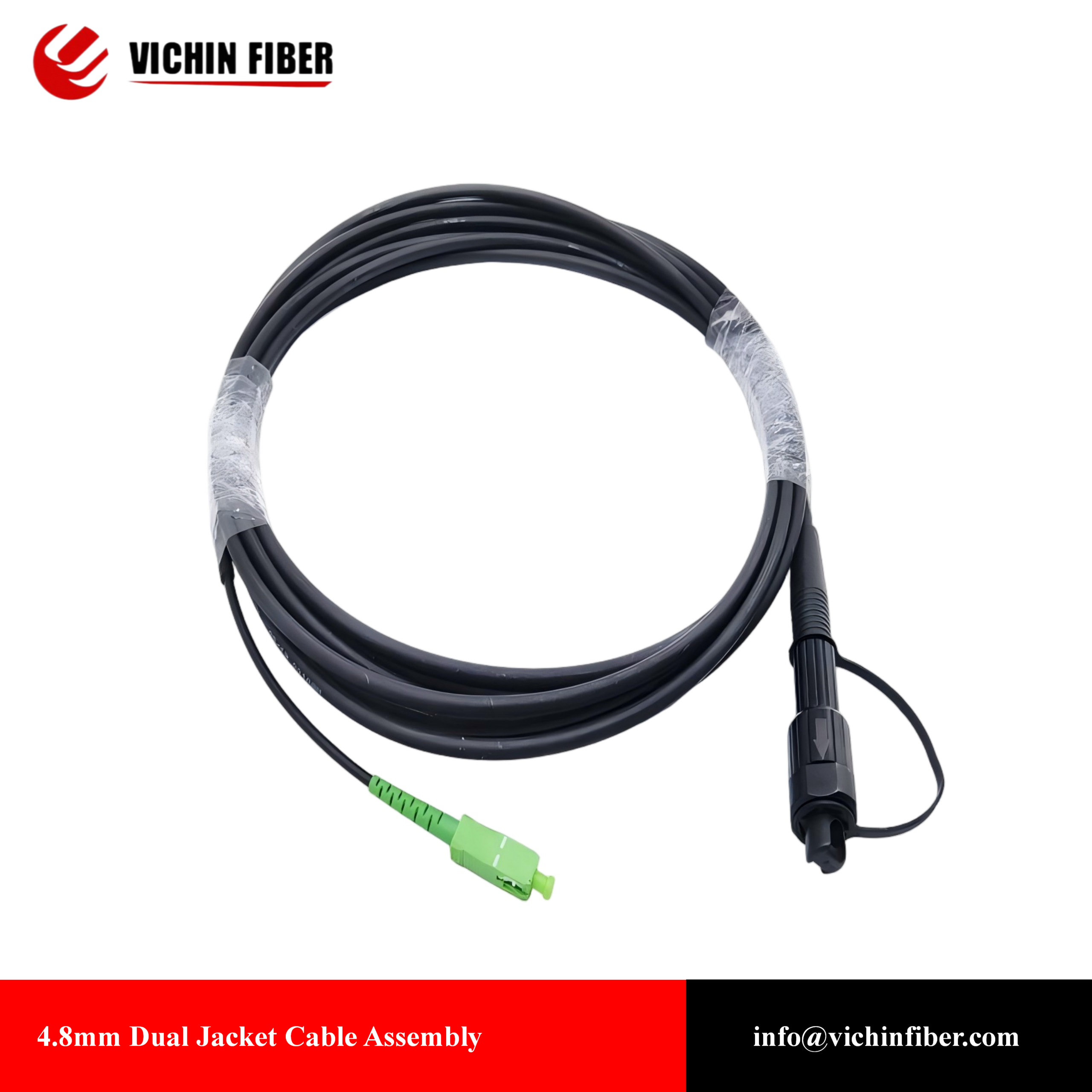

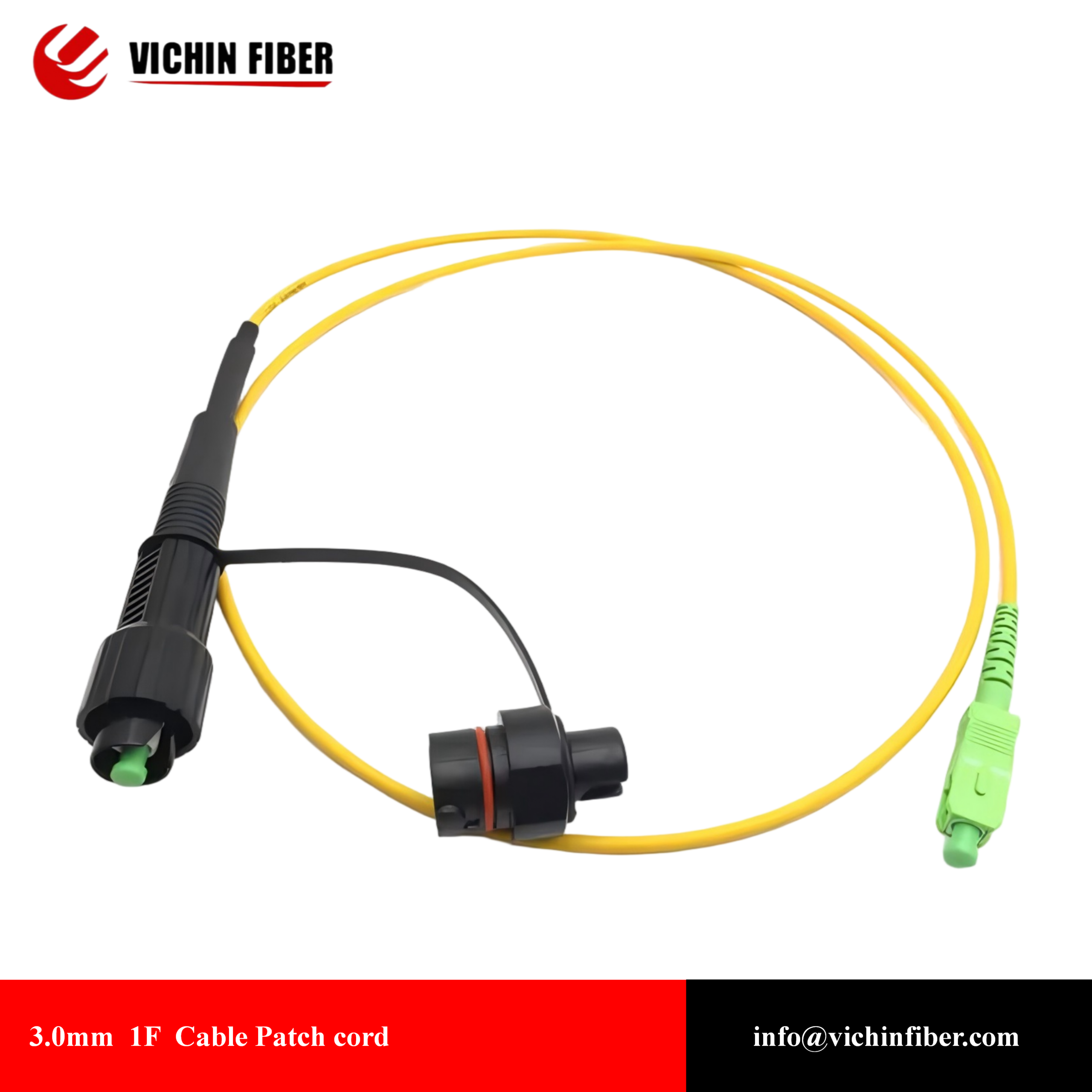

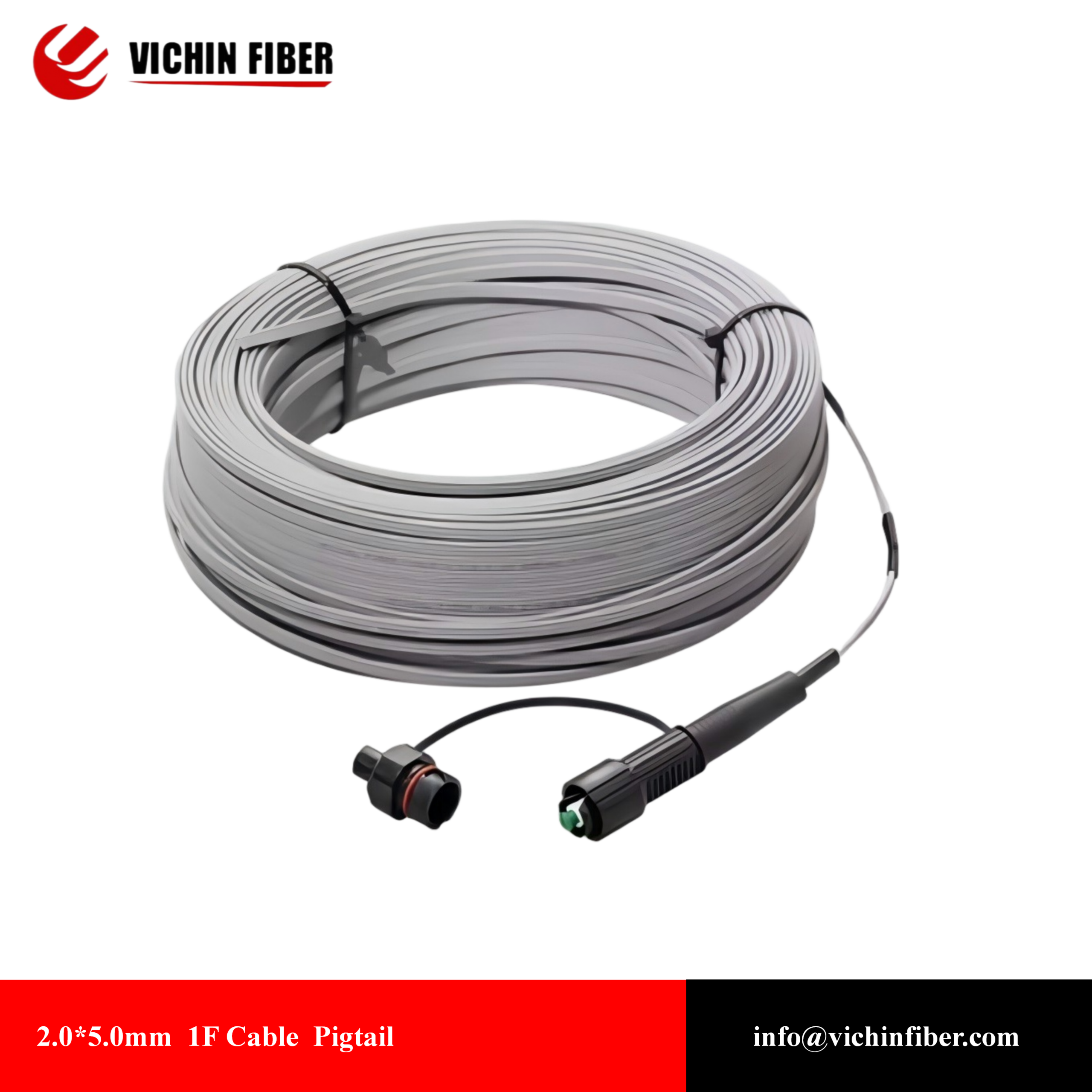

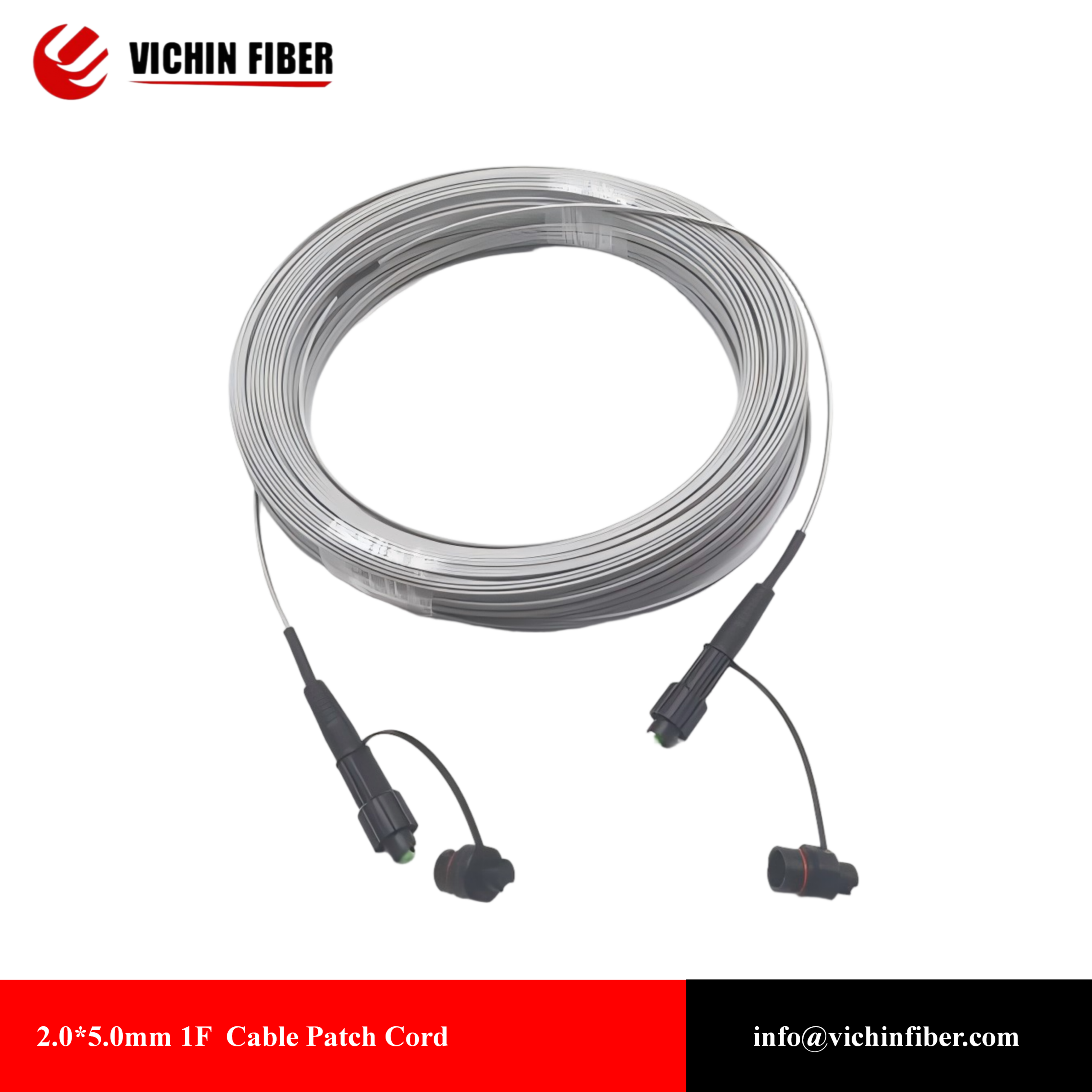

HW Mini IP SC Outdoor Cable Assembly
Offre une résistance supérieure aux intempéries pour les applications FTTA et autres applications extérieures.
Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies;
Description
Features
* Cost effective solution for in house termination.
* B.Low insertion loss and added loss.
* Height of attenuation.
* IP67 water, dust proof and corrosion resistant
* The material in the jumpel cable are all-weather and UV-resistant.
* Mechanical performance: IEC 61754-4 standard.
* RoHS and REACH materials compliant.
* Cable diameter Range: 2.0*3.0mm, 2.0*5.0mm, 3.0mm, 5.0mm to 4.0* 7.0mm
Product Parameters
| Item | Parameter | Reference | |||
| Single mode | Multimode | ||||
| Standard | Elite | Standard | Elite | ||
| Insertion loss | Typical≤0.30dB Max≤0.75dB |
Typical<0.15dB Max≤0.35dB |
Typical≤0.50dB Max≤0.25dB |
Typical≤0.10dB Max≤0.35dB |
IEC61300-3-34 |
| Return loss | ≥50dB(PC) ≥60dB(APC) |
≥55dB(PC) ≥65dB(APC) |
≥30dB(PC) | ≥30dB(PC) | IEC 61300-3-6 |
