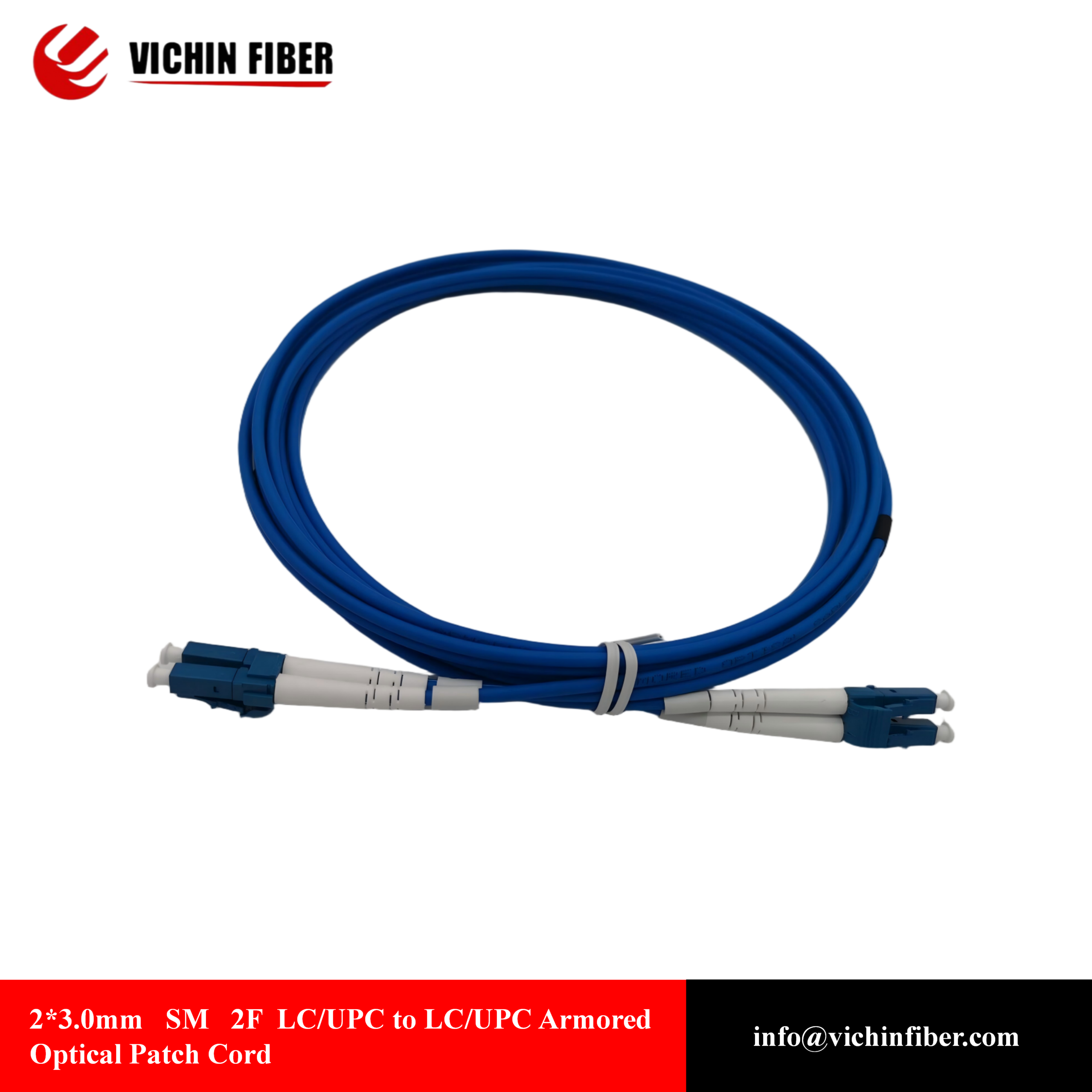

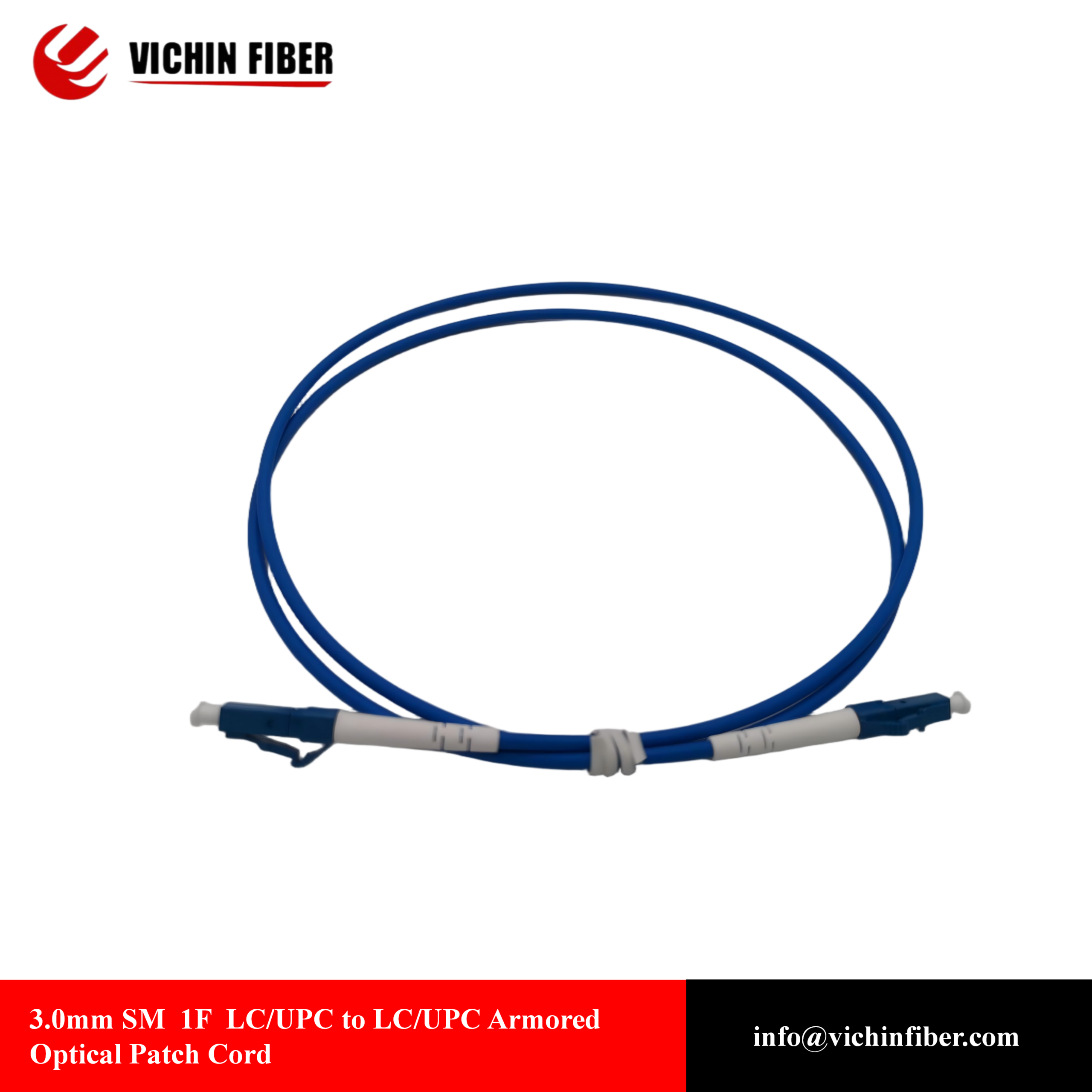

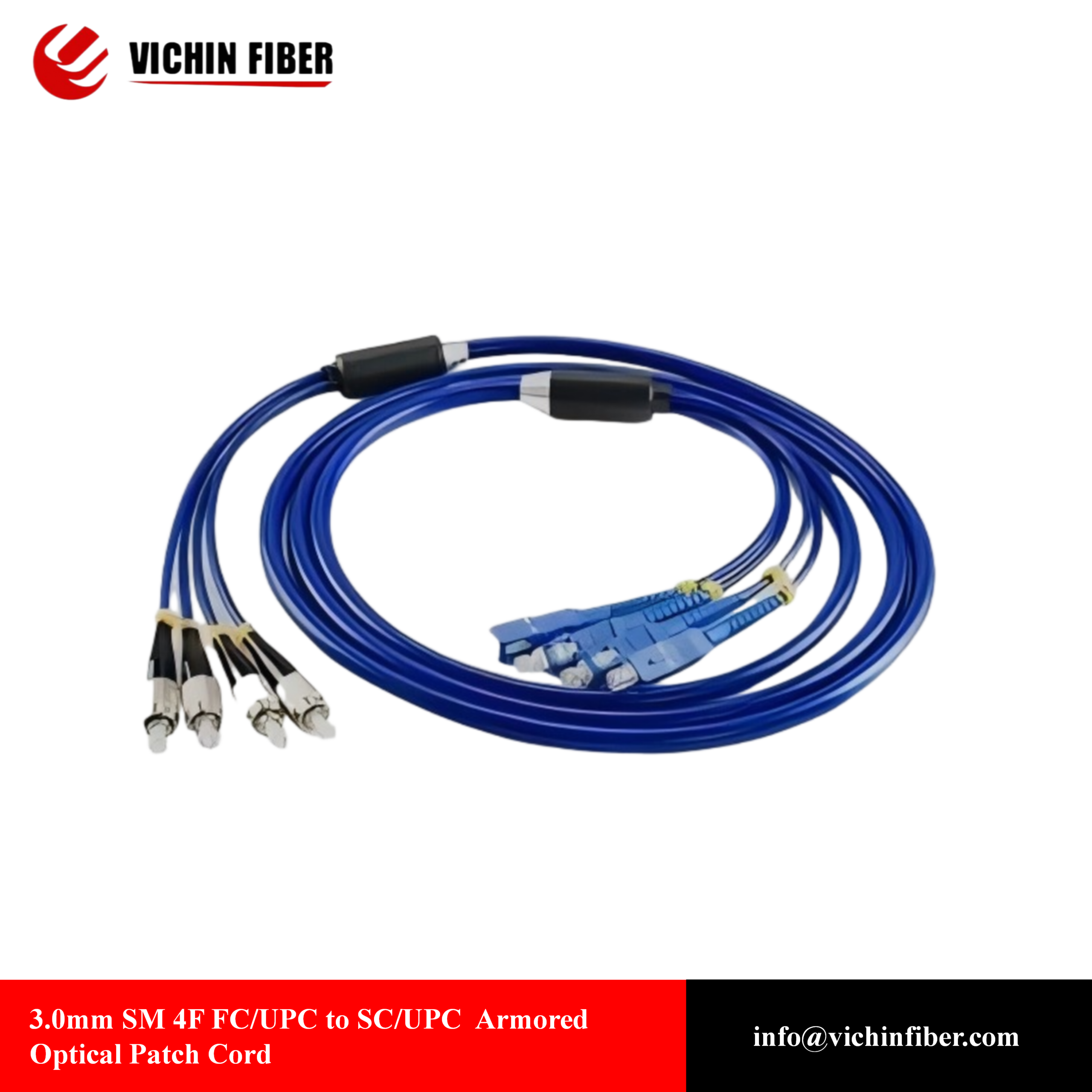

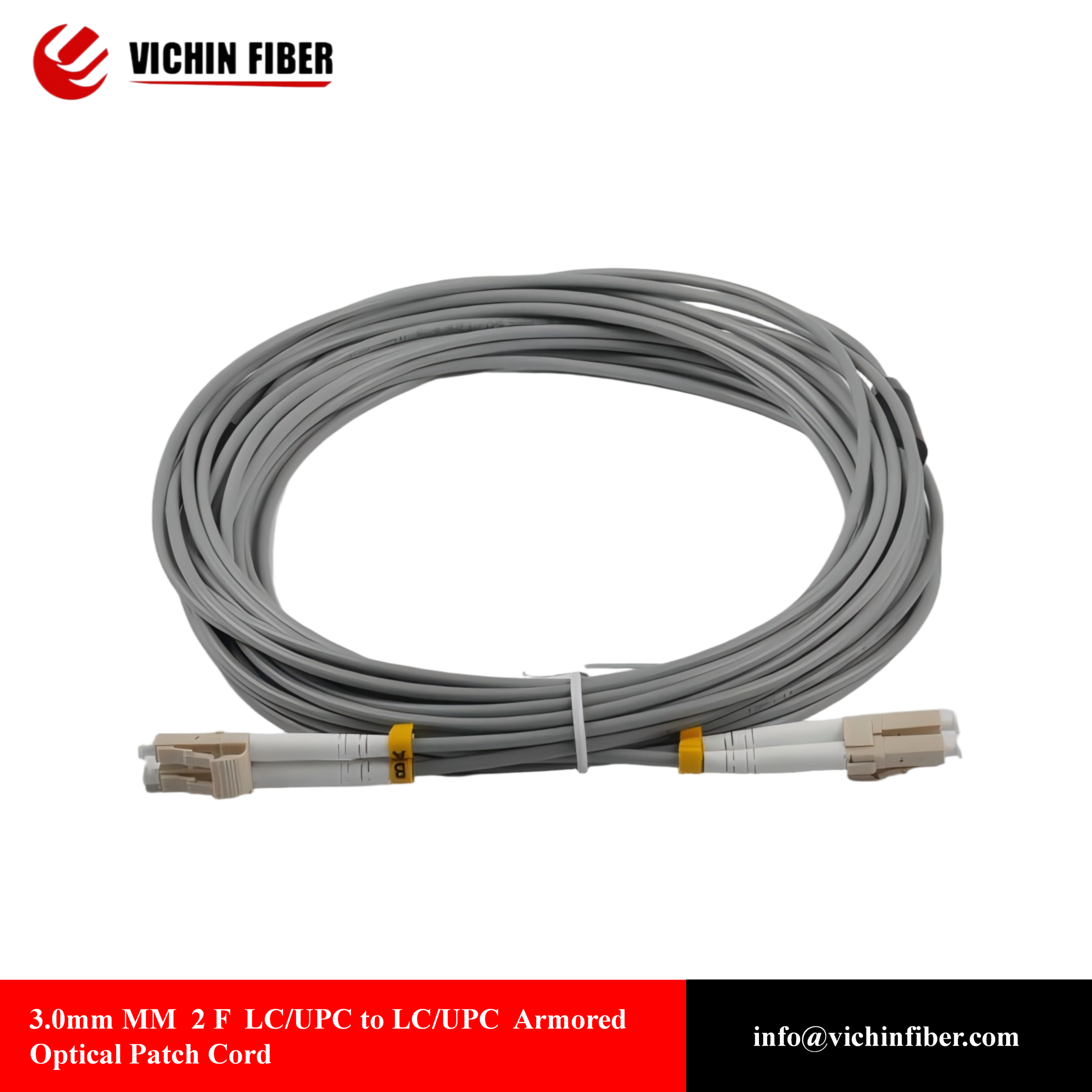

Armored Optical Cable Patch Cord
Les câbles de brassage blindés sont constitués d’une gaine métallique logée dans une enveloppe extérieure robuste. Providing greater protection than standard cables, it enables installation in special environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.
Description
Application
Armored fiber optic cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with slight dust, oil, gas, moisture, or even damage-causing rodents. Please note: E2000 is an LSH connector with a dust-proof cover.
PRODUCT PARAMETERS
| Fiber Count | Cable Diameter (mm) |
Tensile Strength (N) |
Crush Resistance (N/100mm) |
Bending Radius (mm) |
Cable Weight (kg/km) |
| 1 | 2.85 | 200 | 3,000 | 25 | 18 |
| 2(zipcord duplex,2 fibers in 2 tubes) |
5.7 | 200 | 3,000 | 25 | 38 |
| 2(duplex,2 fibers in 1 tube) |
3.2 | 200 | 3,000 | 25 | 20 |
| 4 | 6.4 | 800 | 3,000 | 65 | 70 |
| 6 | 6.4 | 800 | 3,000 | 65 | 75 |
| 8 | 7.4 | 800 | 3,000 | 75 | 80 |
| 10 | 7.4 | 800 | 3,000 | 75 | 82 |
| 12 | 7.4 | 800 | 3,000 | 75 | 85 |
