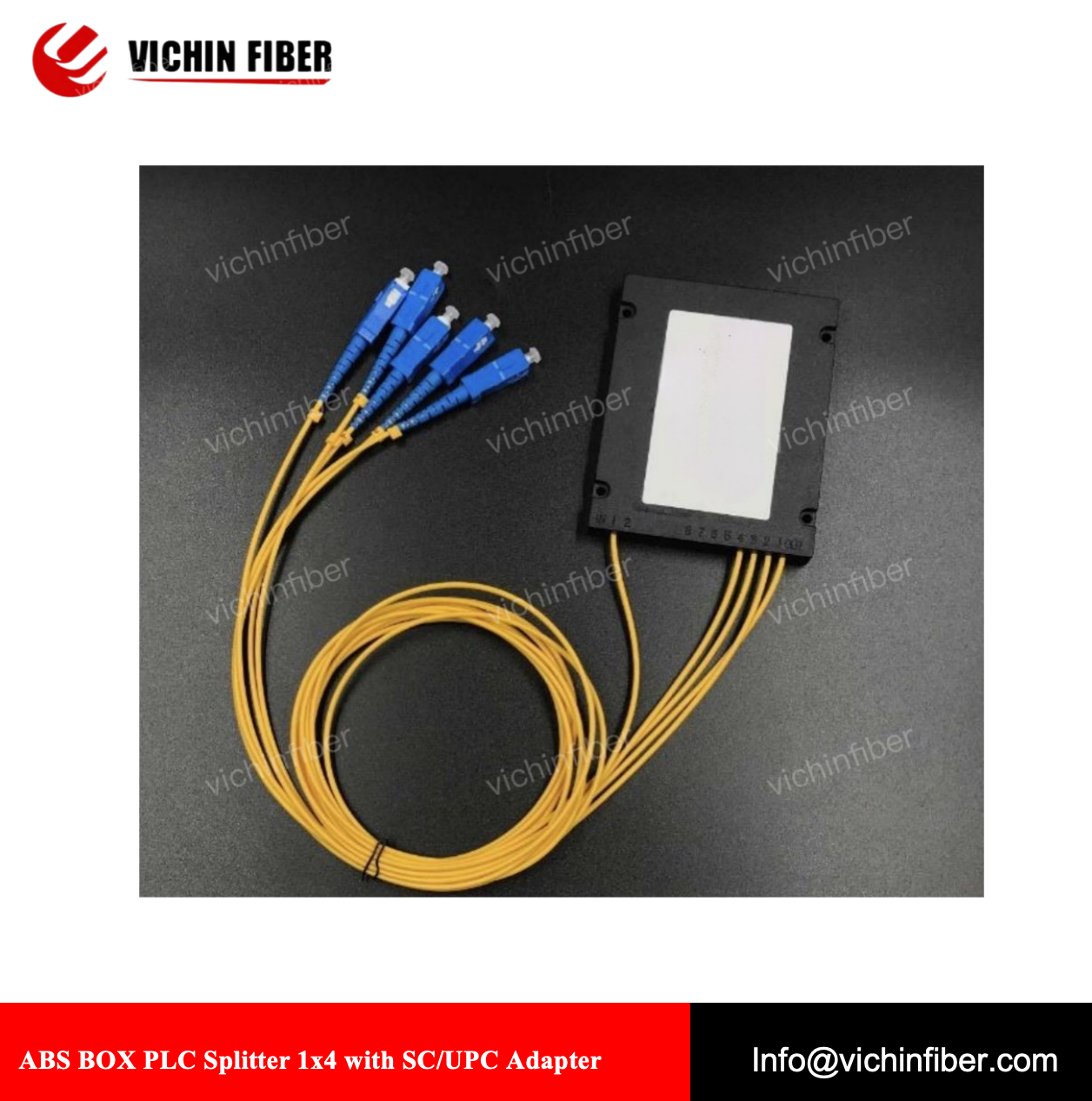

ABS BOX FBT PLC Splitter 1x4 with SC/UPC Connector

ABS BOX FBT PLC Splitter 1×4 with SC/UPC Connector

Categories: FBT Coupler /FBT Splitter, Fiber Optic Splitter

Description

Description
ABS BOX PLC Splitter 1×4 with SC/UPC Connector

ABS BOX FBT PLC Splitter 1×4 مع وصلة SC/UPC
Features
⊙FTTH
⊙Reliable
⊙Monitoring
⊙Smaller size
⊙CATV System
⊙Good Uniformity
⊙Network Protection
⊙Low Polarization loss
⊙Access/PON Distribution
⊙Not Sensitive to wavelengths

Optical performance
Test can be performed on any channel to meet the following requirement:

Category		Specification		Remarks
Working Wavelength		NM	1260~1650
Test Wavelength		nm	1310&1490&1550
Insertion Loss	exclude connector	dB	≤4.0
Insertion Loss	With connector	dB	≤4.3
Channel Uniformity		dB	≤0.6
Polarization Dependent Loss-PDL		dB	≤0.2
Directivity		dB	UPC≥50;APC≥55	With connector
Return Loss		dB	UPC≥50;APC≥55	With connector
Operating Temperature		ºC	-40~+85
