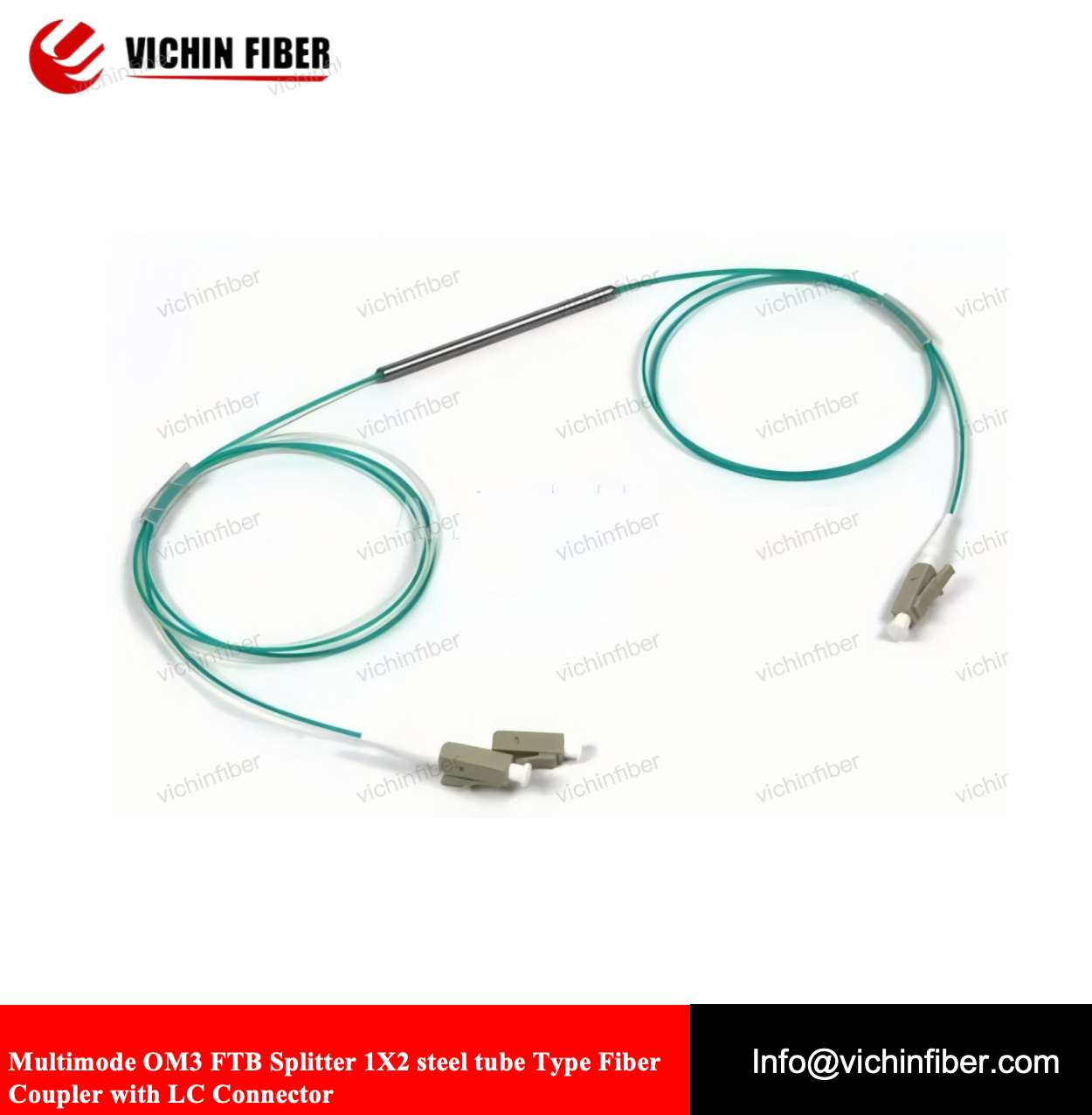

Multimode OM3 FTB Splitter 1X2 steel tube Type Fiber Coupler with LC Connector

Categories: FBT Coupler /FBT Splitter, Fiber Optic Splitter

Description

أنبوب فولاذي متعدد الأوضاع (OM3 FTB Splitter 1X2) قارنة ألياف من النوع مع موصل LC.

Description
PLC fiber splitter is an integrated waveguide optical power distribution device based on quartz substrate, which is particularly suitable for connecting office terminal equipment in optical passive network (PON) and dividing optical information in optical fiber system into multiple outputs. The product has the characteristics of small size, compact structure, low insertion loss, uniform power distribution and good environmental adaptability.

Characteristics
FTTX (FTTB, FTTH, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV Systems
Test Equipments

Product Parameters

Operating Wavelength(nm)	820±40/980±40/ 1310±40/1550±40		980&1550±40/ 1310&1490&1550±40		Parameter	Unit	Value
Coupling Ratio (%)	Insertion Loss (dB)				Fiber Type	/	Hi 780/ Flex 1060/ SMF-28e/ SMF-28e XB
Coupling Ratio (%)	Tap	Signal	Tap	Signal	Fiber Type	/	Hi 780/ Flex 1060/ SMF-28e/ SMF-28e XB
01/99	19.0-21.0	≤0.20	18.5-21.5	≤0.25	PDL	dB	Typ.:<0.1 Max.:<0.15
03/97	14.6-16.2	≤0.30	14.5-16.5	≤0.30	Directivity	dB	>55
05/95	12.4-13.8	≤0.35	12.0-14.5	≤0.45	Return Loss	dB	>50
10/90	9.70—10.7	≤0.60	9.70-11.2	≤0.60	Excess Loss	dB	Typ.:<0.1 Max.:<0.2
20/80	6.70—7.60	≤1.15	6.60—7.80	≤1.15	Pigtail Dia.	mm	0.25 /0.9 / 2 / 3
33/67	4.65—5.65	≤1.70	4.50—5.85	≤1.80	Pigtail Length	cm	>100
40/60	3.95—4.30	≤2.50	3.70—4.70	≤2.70	Operating Tem.	ºC	-10~ +70
50/50	2.85—3.30		2.80—3.40		Storage Tem.	ºC	-40~ +85
