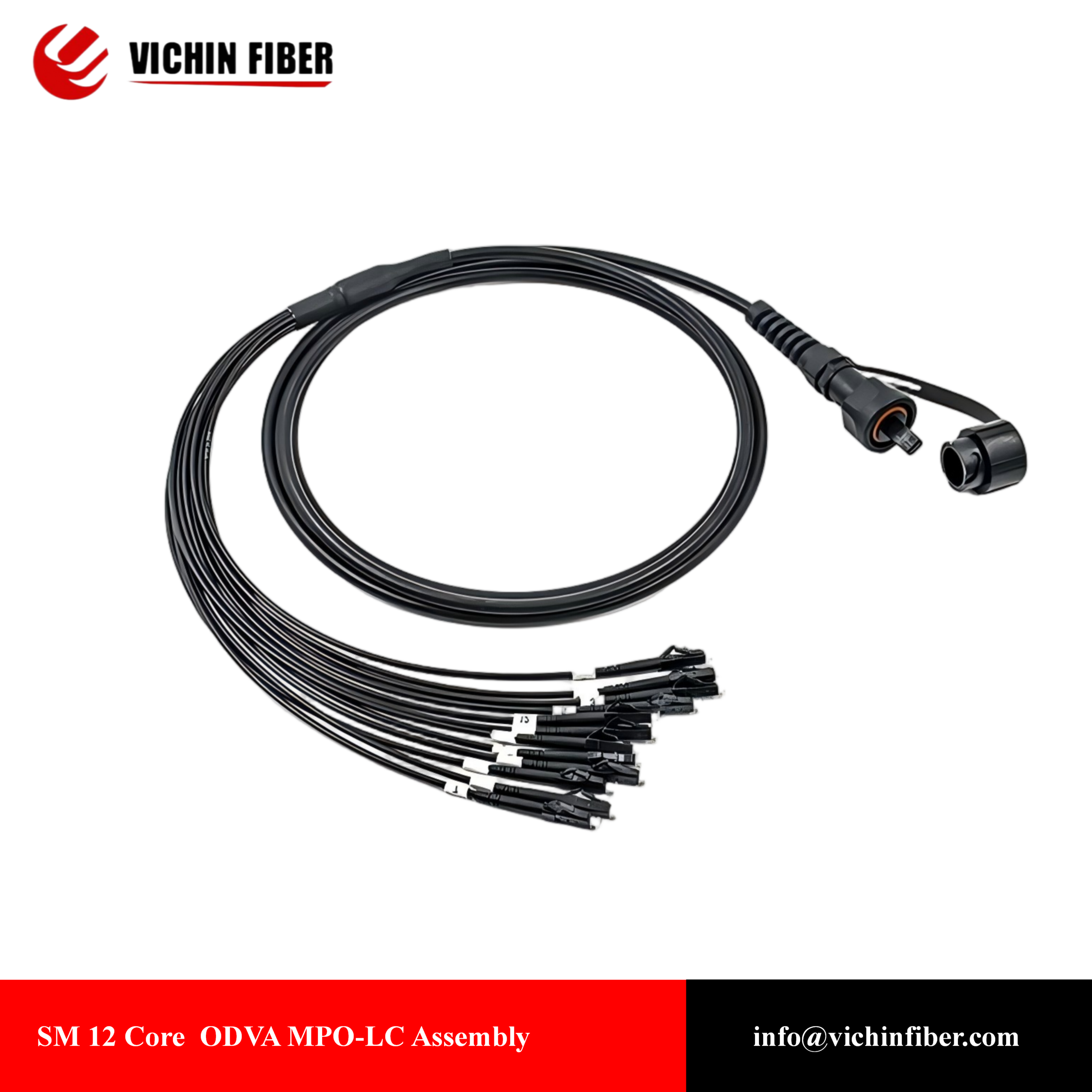

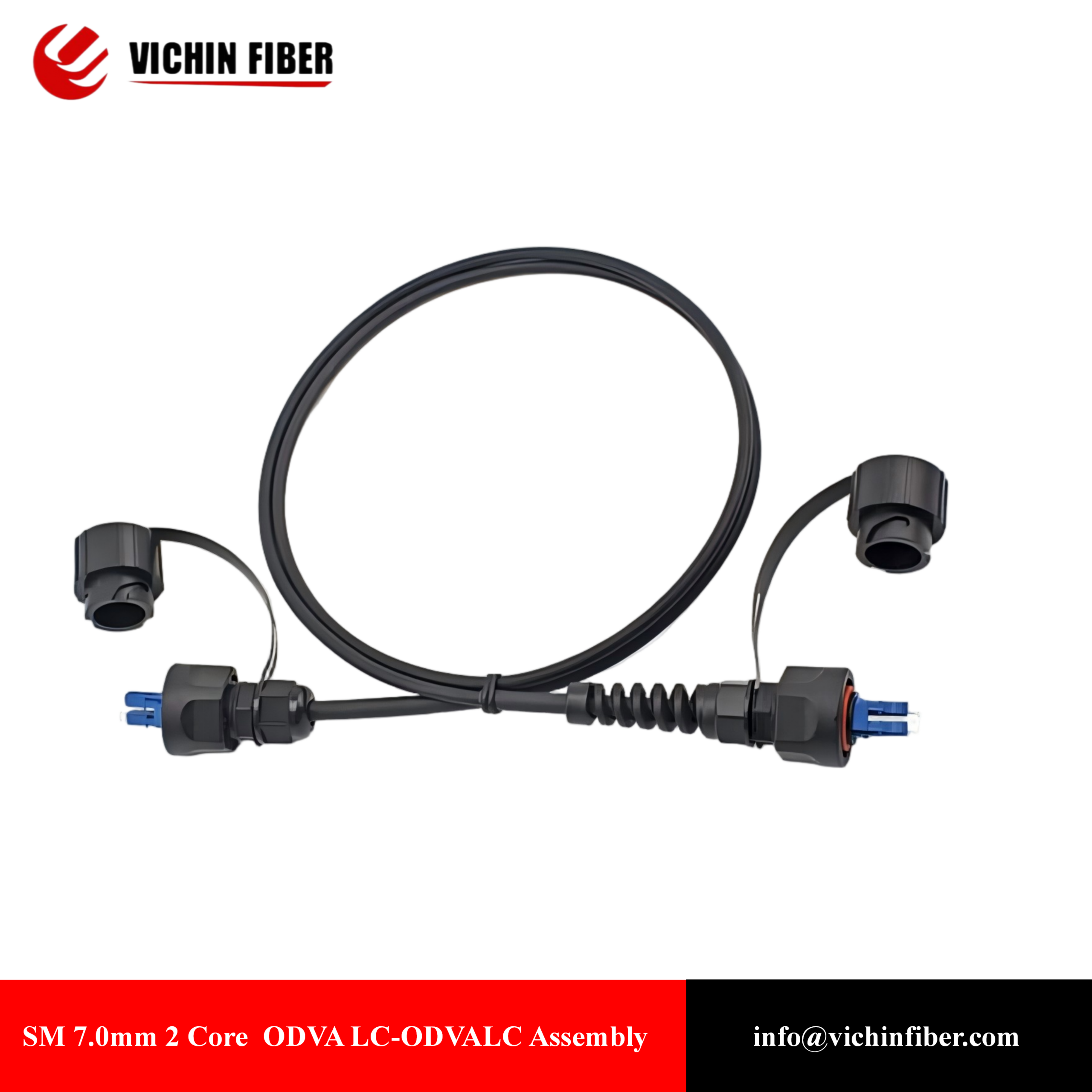

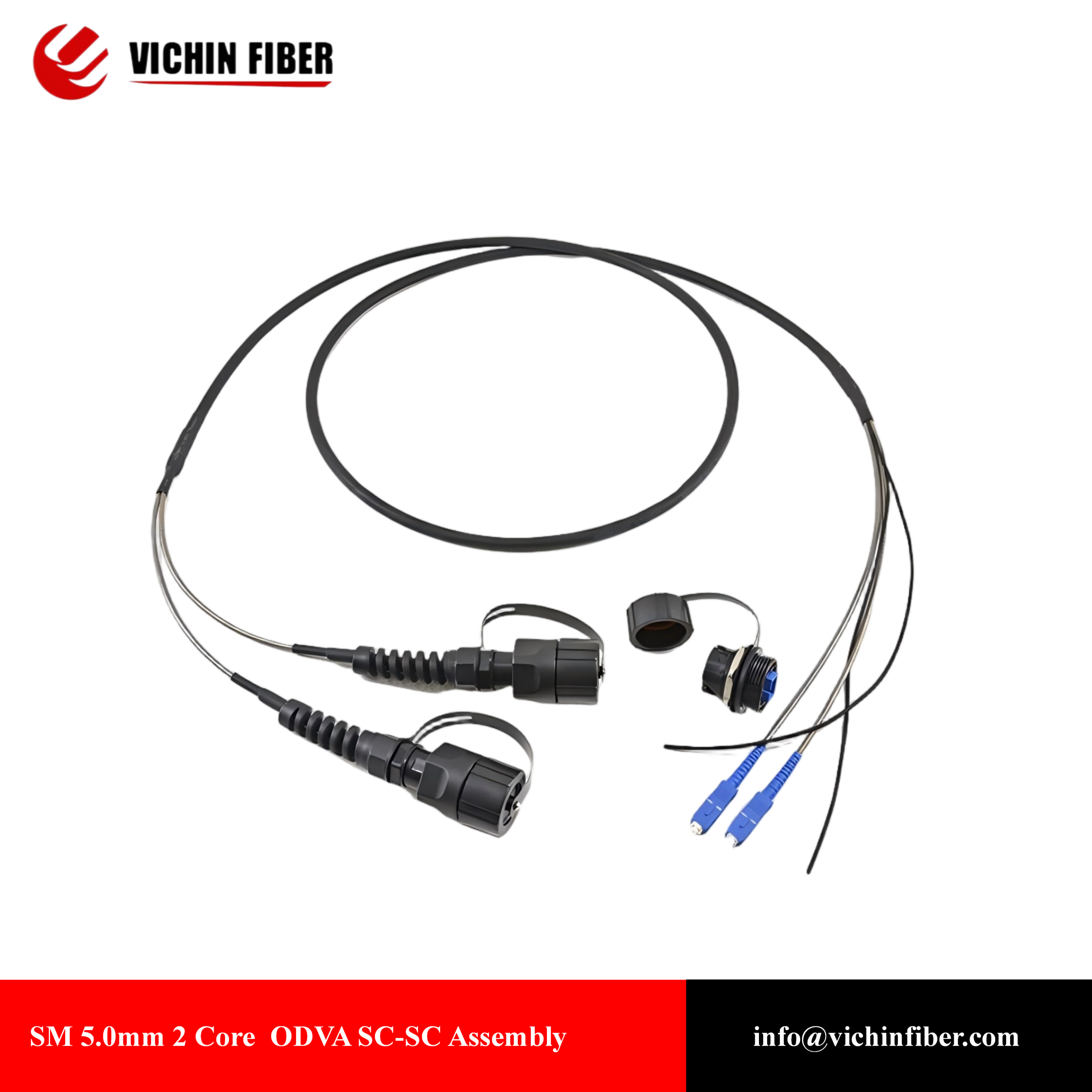

ODVA Outdoor Cable Assembly（SC,LC,MPO）
Le câble extérieur ODVA est une solution à fibre optique haute fiabilité et étanche, conçue pour la connectivité extérieure longue distance dans les réseaux de télécommunications, de services publics et d’entreprise. It combines industrial-grade optical performance with robust mechanical protection for deployment in exposed or buried environments.
Description
Features
* Cost effective solution for in house termination
* IP68 water and dust protection
* Wide range of operational temperature for outside plant -40 to +85
* Different cable diameter can be available
* Intermatable to other Industrial LC adaptor per IEC 61076-3-106
* No need special tools for assembly
Product Parameters
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to+85℃ | |||||
