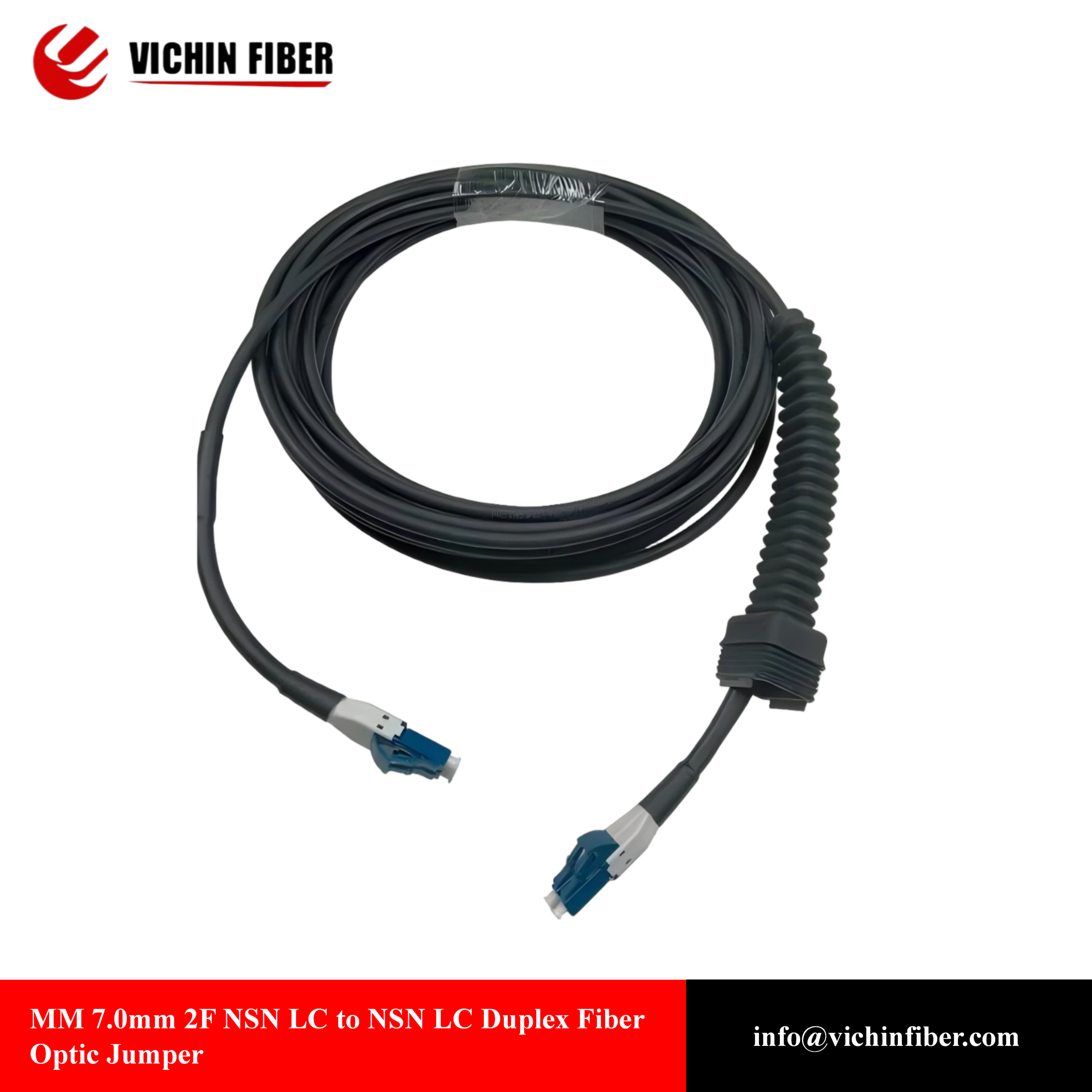

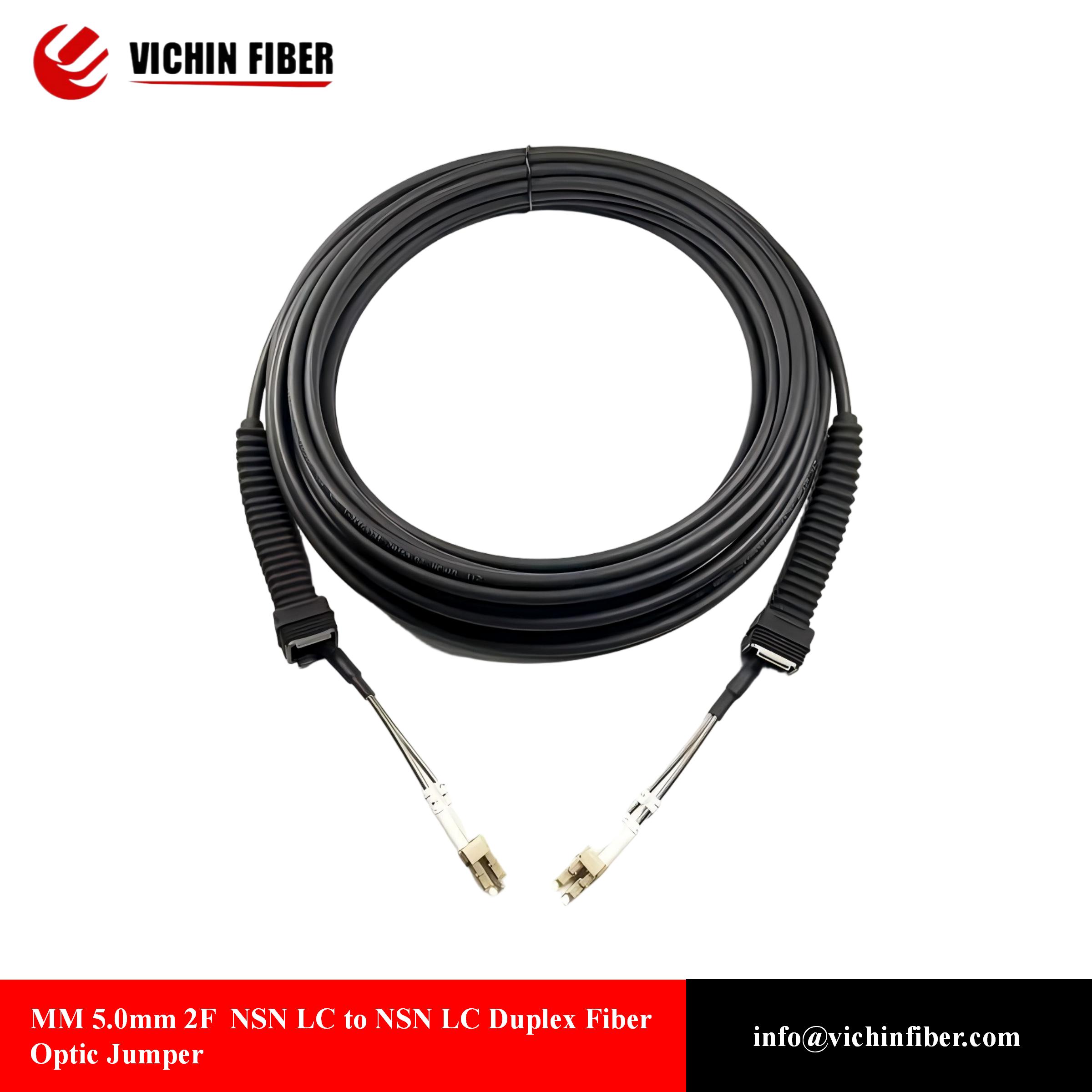

NSN Boot duplex LC Fiber Optic Jumper
Provides moisture and dust protection for use in harsh industrial environments.
IP67 protection, salt-mist proof, humidity proof, dust proof.
Réduit considérablement les épissures sur le terrain grâce à une perte prédéterminée à chaque point d’accès de câble étanche.
Description
FEATURES
* Easily add/install jumper cables for a future expansion
* Factory-assembled cables for a fast on-site installation
* Flexibility with small bending radius and excellent cable routing properties
* Equipped with customer specific power and fiber-optic connectors
PRODUCT PARAMETERS
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to+85℃ | |||||
