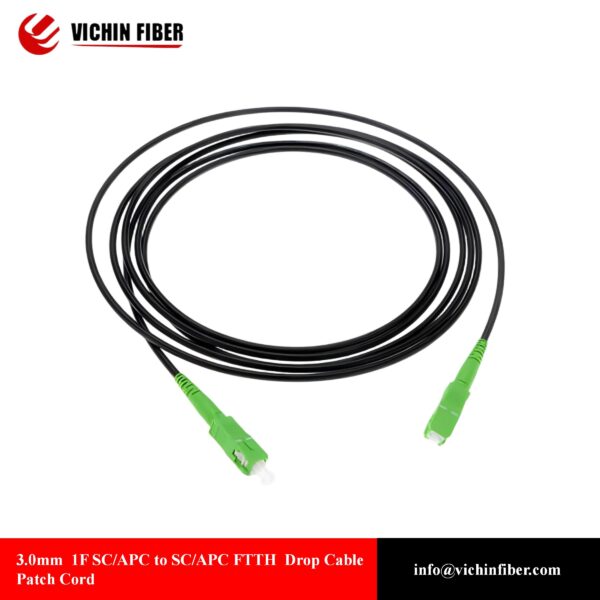

FTTH Drop Cable Patch Cord
Le cordon de brassage à fibre optique est un élément important du réseau optique.They have same or different connectors which are installed on the end of fiber optic cable.The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Description
Features：
* Low insertion loss, high return loss

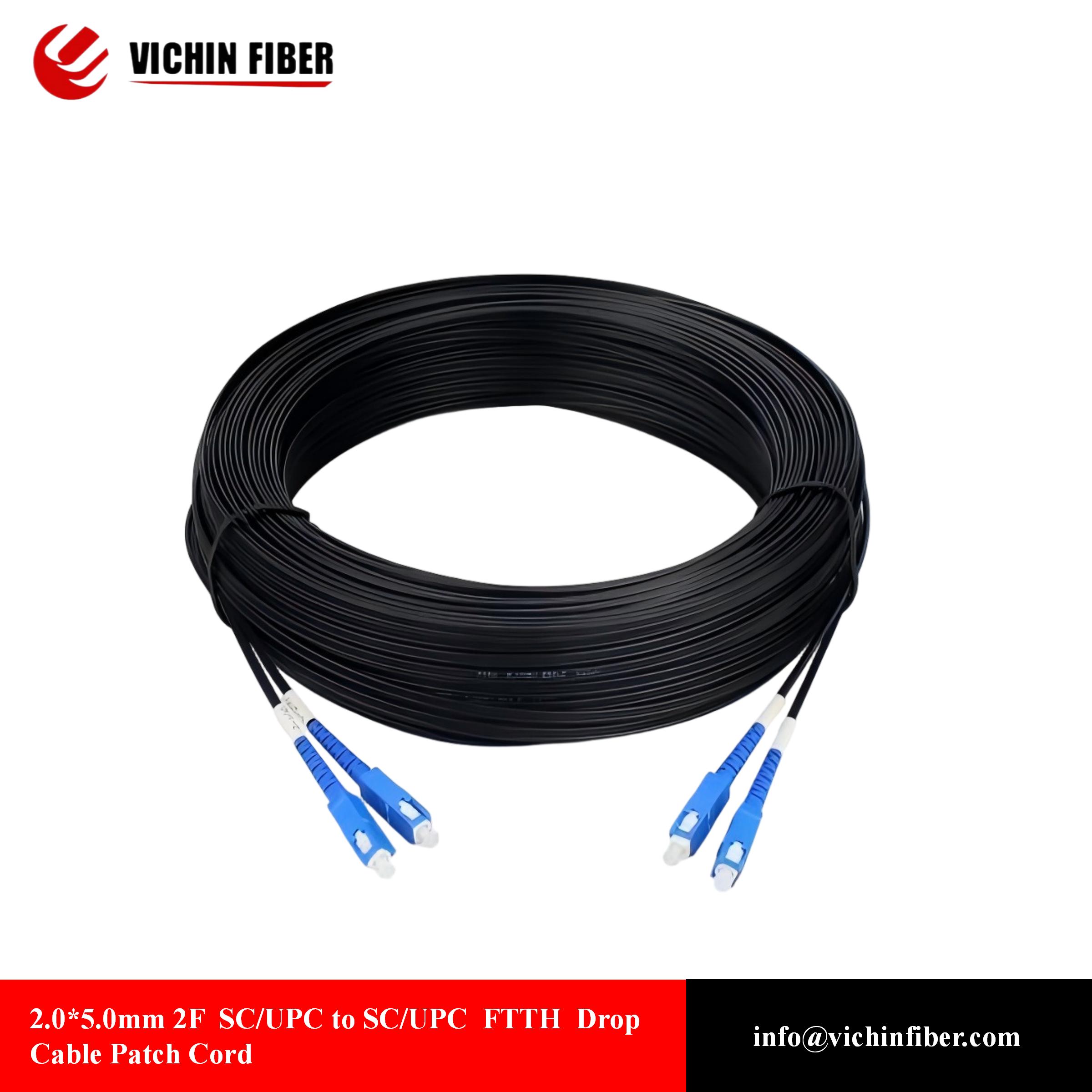

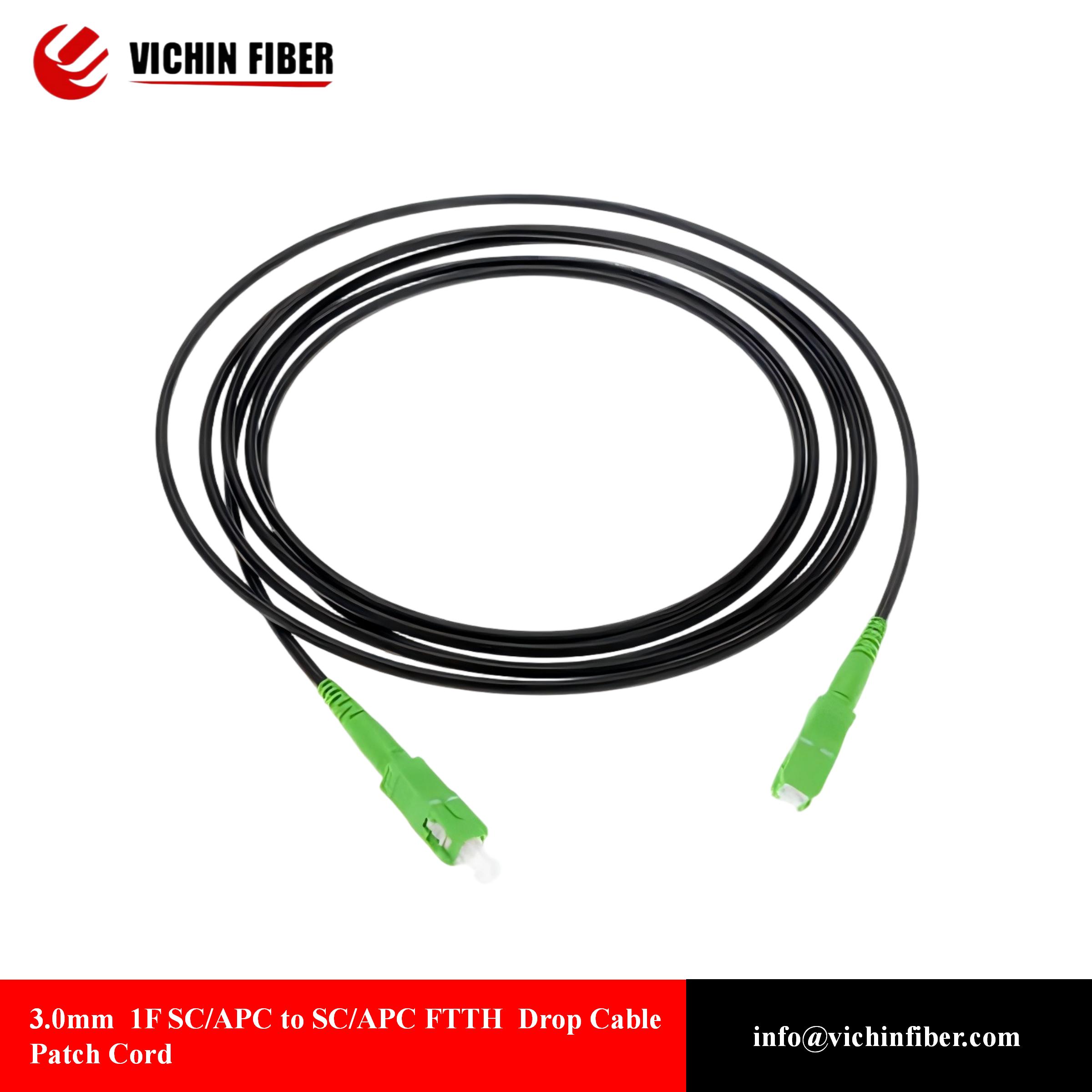

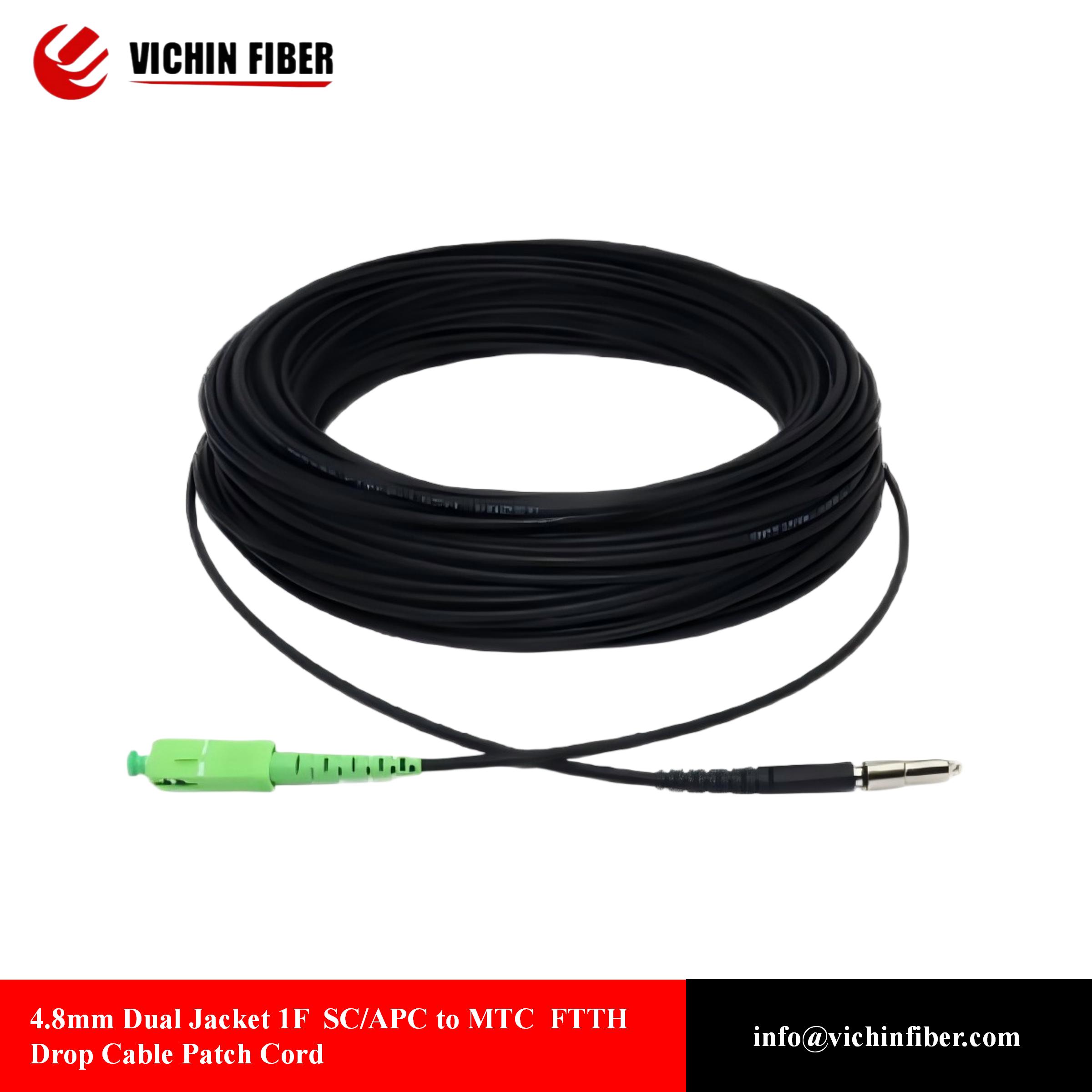

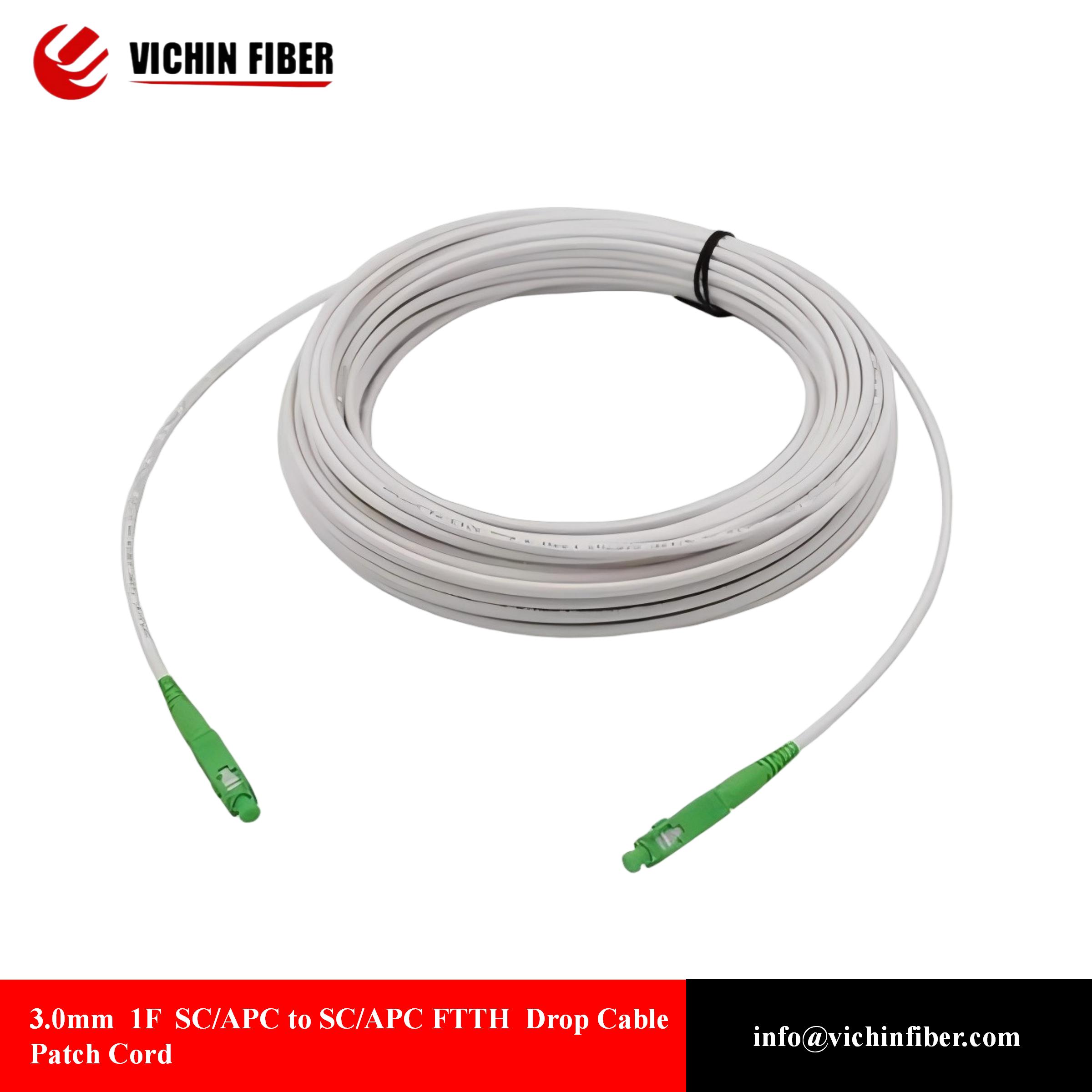

* Available FTTH Drop cable diameters: Φ2.0*5.0mm; Φ2.0*3.0mm, Φ3.0mm, Φ4.8mm dual jacket
* Connector Types: LC, FC, SC,ST for option * Fiber Mode: G652D, G.657A1, G657A2, G657B3
* Ferrule Interface Type: UPC to UPC, APC to APC, APC to UPC * Compliant to IEC standard
Parameters：
| Item | Parameter | Reference | |||
| Single mode | Multimode | ||||
| Standard | Elite | Standard | Elite | ||
| Insertion loss | Typical≤0.30dB Max≤0.75dB |
Typical≤0.15dB Max≤0.35dB |
Typical≤0.50dB Max≤0.25dB |
Typical≤0.10dB Max≤0.35dB |
IEC 61300-3-34 |
| Return loss | ≥50dB(PC) ≥60dB(APC) |
≥55dB(PC) ≥65dB(APC) |
≥30dB(PC) | ≥30dB(PC) | IEC 61300-3-6 |
