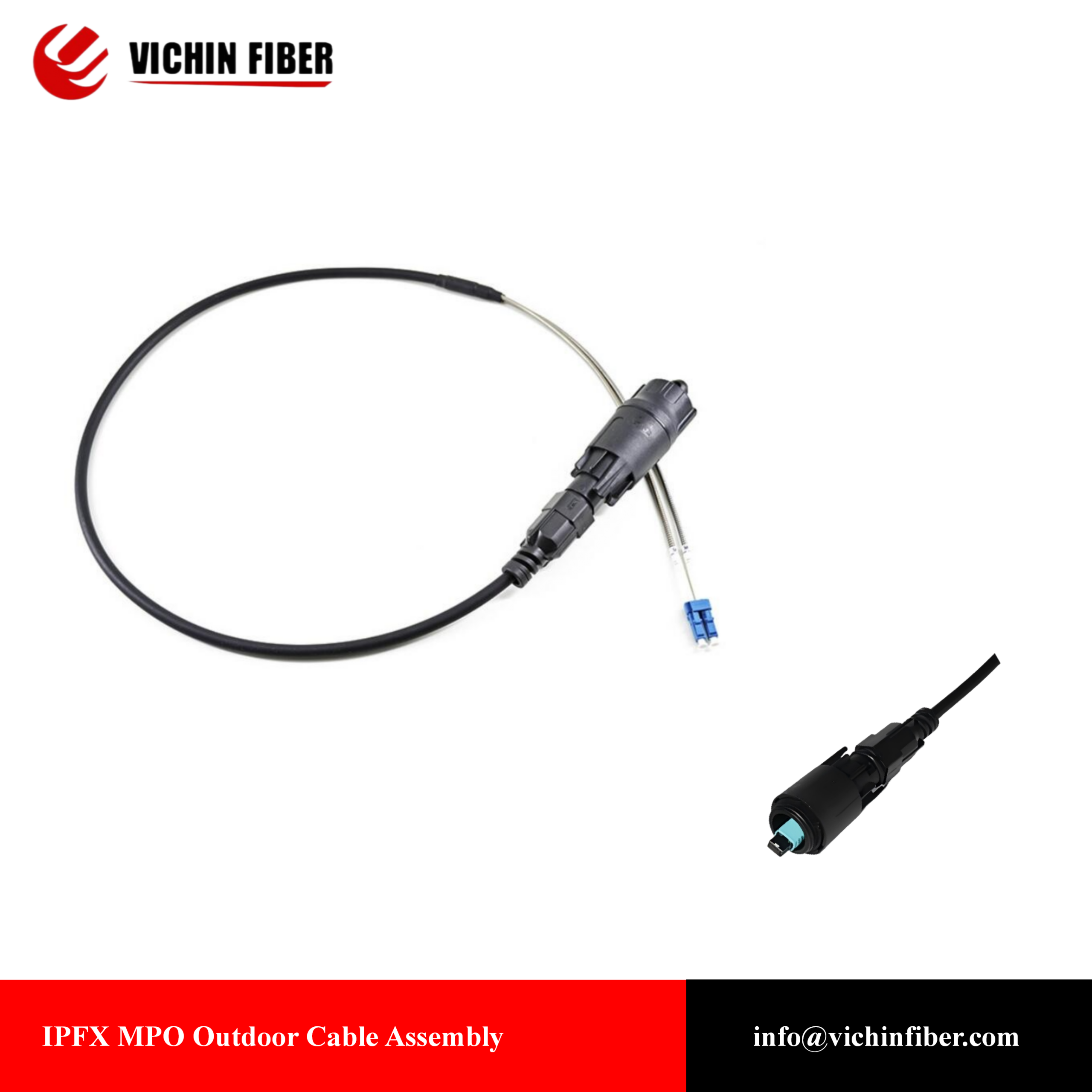

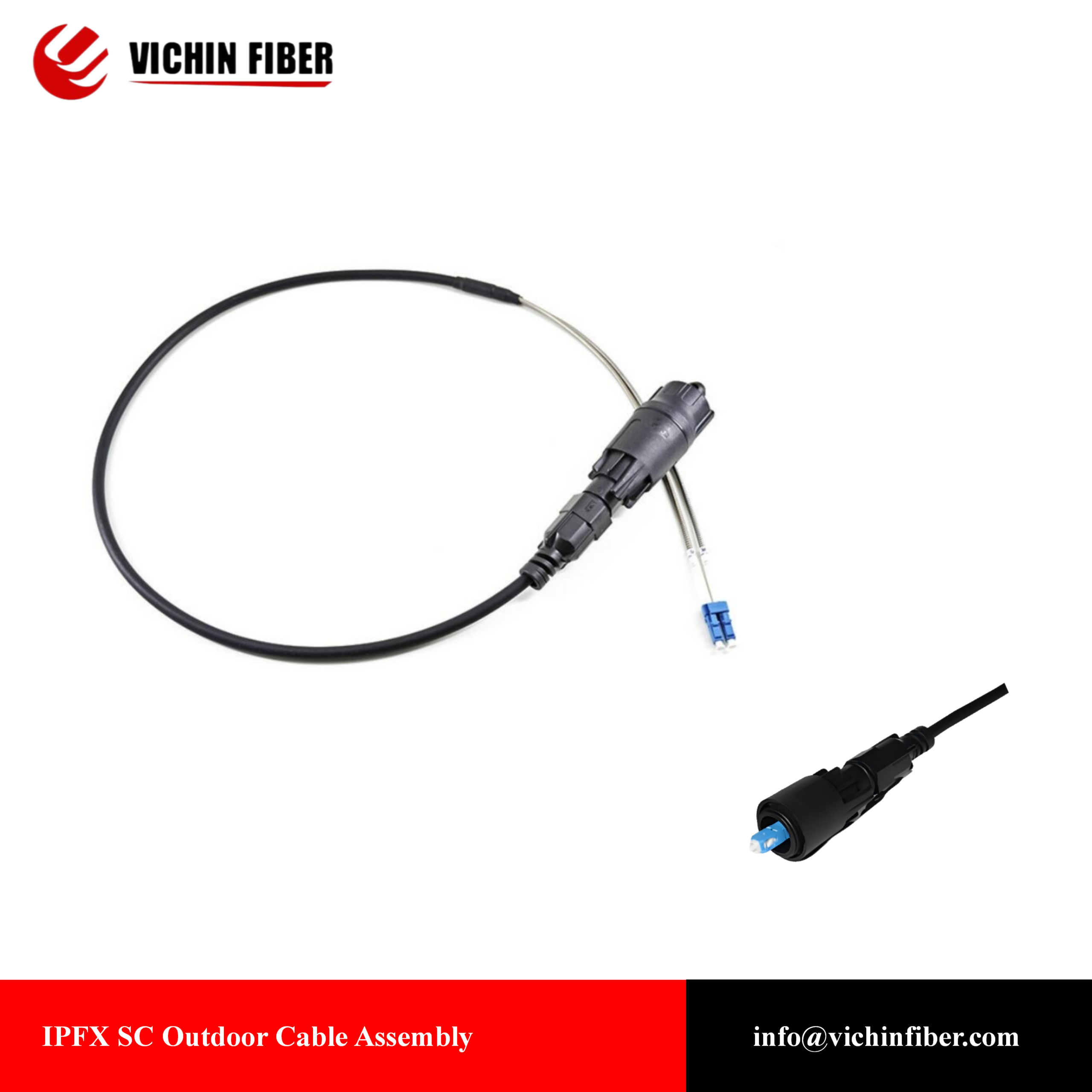

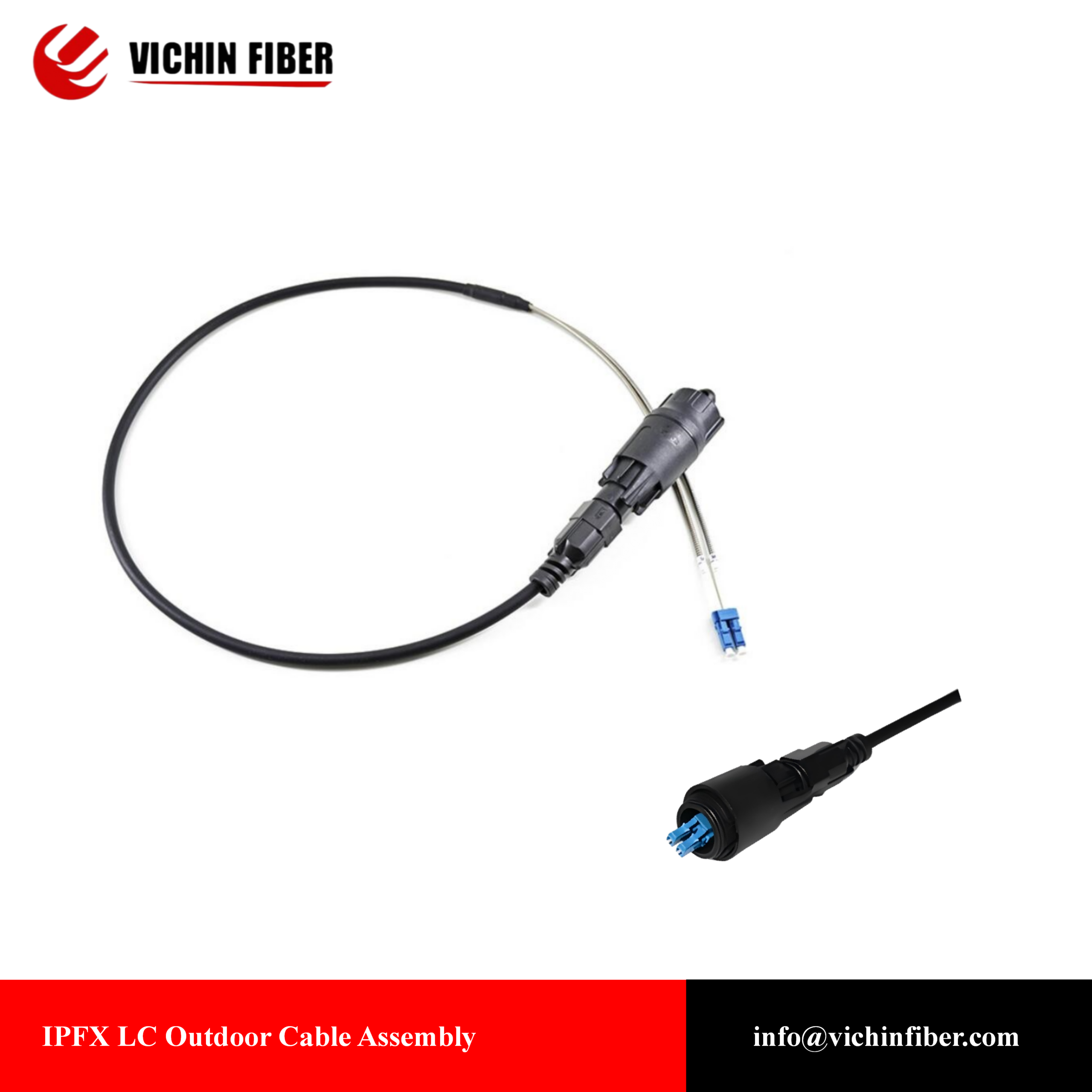

IPFX Outdoor Cable Assembly（SC,LC,MPO）
Le câble d’extérieur IPFX est une solution d’interconnexion à fibre optique haute performance et robuste, conçue pour les applications de réseau industrielles et extérieures critiques.It delivers robust environmental protection, superior optical performance, and reliable plug-and-play connectivity in demanding conditions.
Description
Features
* Factory terminated (tested cables) or Field installable version available
* Pre-fitted with the IPFX receptacle
* Water proof, dust proof
* IP68 water and dust protection
* Designed to meet 150N cable retention
Product Parameters
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to+85℃ | |||||
