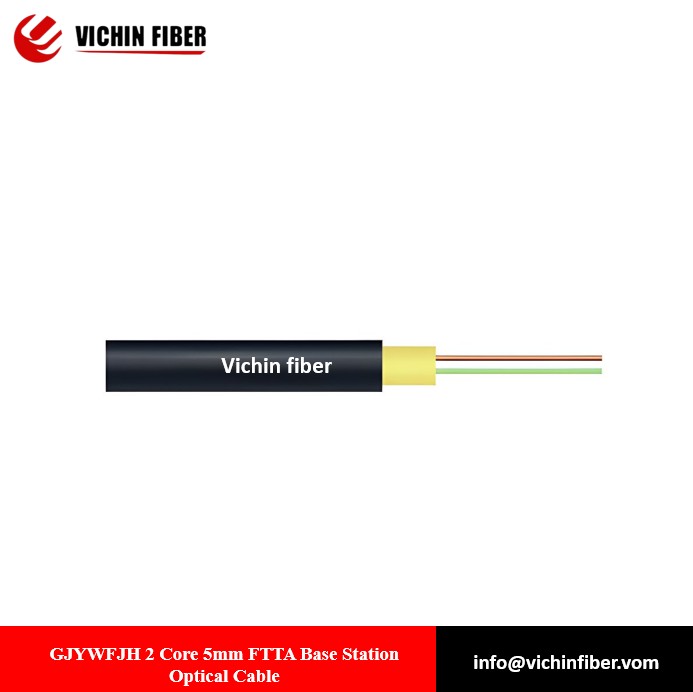

GJYWFJH 2 Core 5mm FTTA Base Station Optical Cable
GJYWFJH 2 Core 5mm FTTA Base Station Optical Cable is soft,flexible, easy to lay and splice, and with big capacity data transmission.
Description
Kabel Optik Stasiun Basis FTTA 2 Inti 5mm GJYWFJH
GJYWFJH 2 Core 5mm FTTA Base Station Optical Cable.PDF

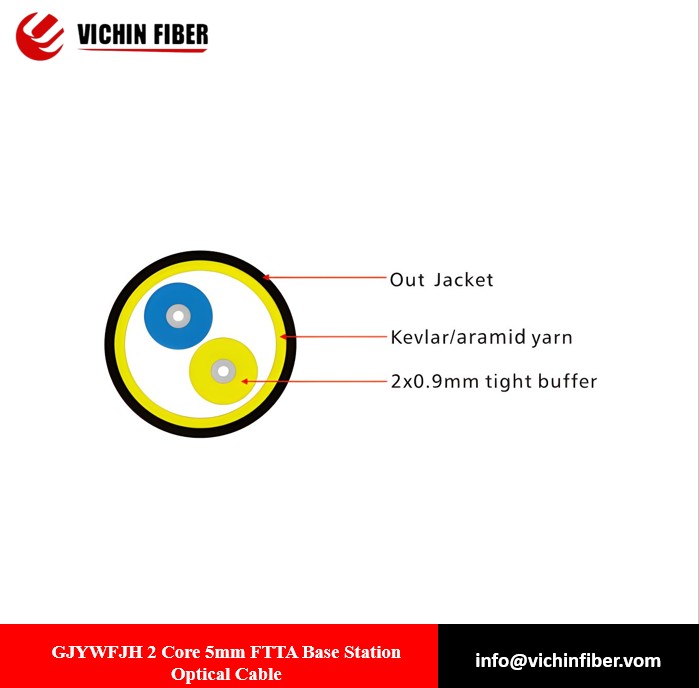

GJYWFJH Indoor/Outdoor Cable used as the optical tiansmission medium with 900um subcable,a layer of aramid yarn is placed outside the compact fiber to ehance the element,and the cable is completed with outside jacket.(PVC,LSZH,TPU,PE or other materials according to customer’s requirements).
Applications:
• Remote base station communication such as RRU or BBU.
• Smart substation and CATV Outdoor application.
• Emergency access to optical fiber communication.
• Used in FTTX,from residence to data center andcabling level and vertical, also used in FTTH cable.
• Mainly used in wireless base station (BS) horizaontal and vertical cabling.
Features:
• Goodmechanical and temperature characteristics.
• Good lateral compression and flexibility.
• Small diameter,light weight,easy to connect,and support large capacity data transmission..
• Compact structure, high fiber density,soft and good compressive resistance.
• Outer jacket material has the advantages of water proof,flame retardant,environmental protection.
Parameters:
| Cable type | OD(mm) | Nominal Weight(Kg/Km) | Tensile Strength(N) | Crush Resistance(N/100MM) | Bending Radius(mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| GJYWFJH-2Xn | 4.8±0.2 | 28.3 | 600 | 300 | 1000 | 500 | 20D | 15D |
| Storage/Working temperature(℃) | -40~+70 | |||||||
