GYFJH53 2 Core 8.0mm FTTA Base Station Optical Cable
GYFJH53 2 Core 8.0mm FTTA Base Station Optical Cable Flame retardant characteristics meet the requirements of relevant standards.
Description
Kabel Optik Stasiun Basis FTTA 2 Inti 8.0mm GYFJH53
GYFJH53 2 Core 8.0mm FTTA Base Station Optical Cable.PDF

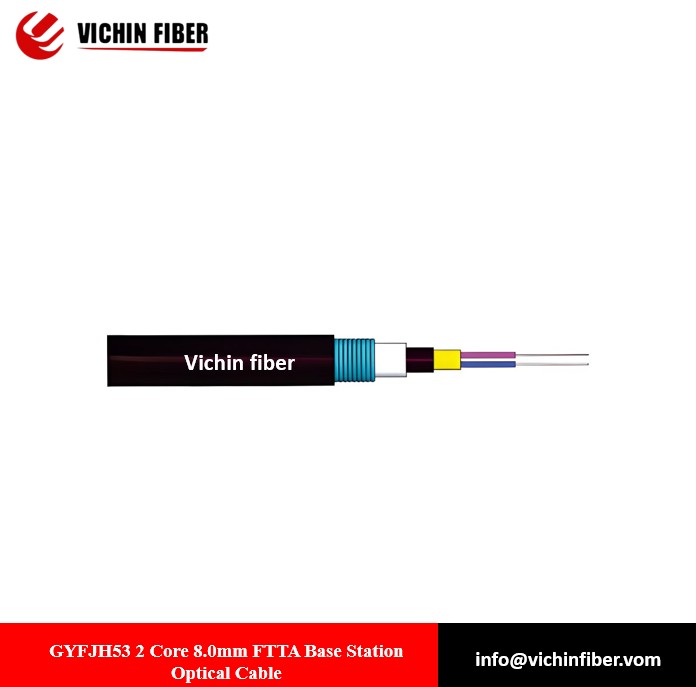

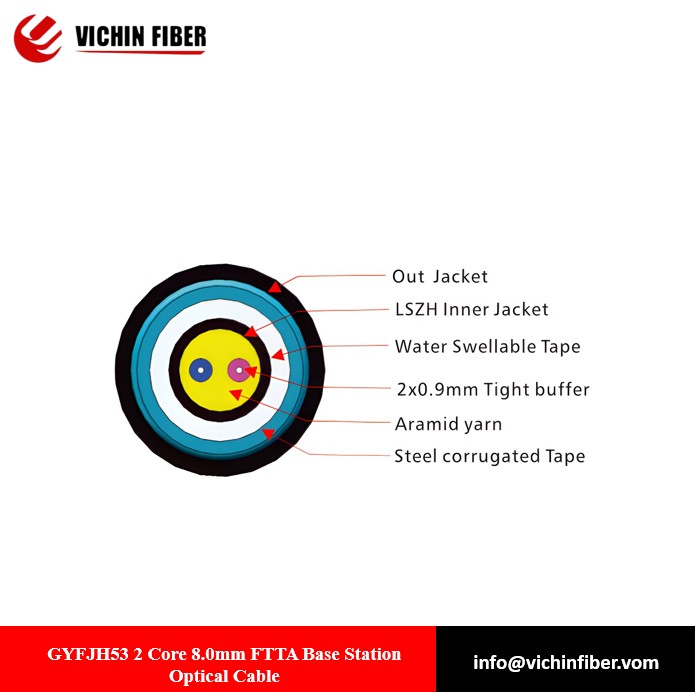

GYFJH53 Indoor/Outdoor Cable used as the optical transmission medium with 900um subcable, a layer of aramid yarn is placed outside the compact fiber to enhance the element,protected by Steel corrugation Tape, and the cable is completed with outside jacket.
Applications:
• Remote base station communication such as RRU or BBU.
• Smart substation and CATV Outdoor application.
• Emergency access to optical fiber communication.
• Used in FTTX,from residence to data center andcabling level and vertical, also used in FTTH cable.
• Mainly used in wireless base station (BS) horizaontal and vertical cabling.
Features:
• Goodmechanical and temperature characteristics.
• Good lateral compression and flexibility.
• Small diameter,light weight,easy to connect,and support large capacity data transmission..
• Compact structure, high fiber density,soft and good compressive resistance.
• Outer jacket material has the advantages of water proof,flame retardant,environmental protection.
Parameters:
| Cable type | OD(mm) | Nominal Weight(Kg/Km) | Tensile Strength(N) | Crush Resistance(N/100MM) | Bending Radius(mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| GYFJH53-2Xn | 8.2±0.2 | 65.0 | 800 | 500 | 1500 | 500 | 20D | 15D |
| Storage/Working temperature(℃) | -40~+70 | |||||||
