GJYWFJH2 2 Core 5mm FTTA Base Station Armoured Optical Cable
The mechanical characteristics of jacket meet the requirements of relevant standards.
Description
Kabel Optik Lapis Baja Stasiun Basis FTTA 2 Inti 5mm GJYWFJH2
GJYWFJH2 2 Core 5mm FTTA Base Station Armoured Optical Cable.pdf

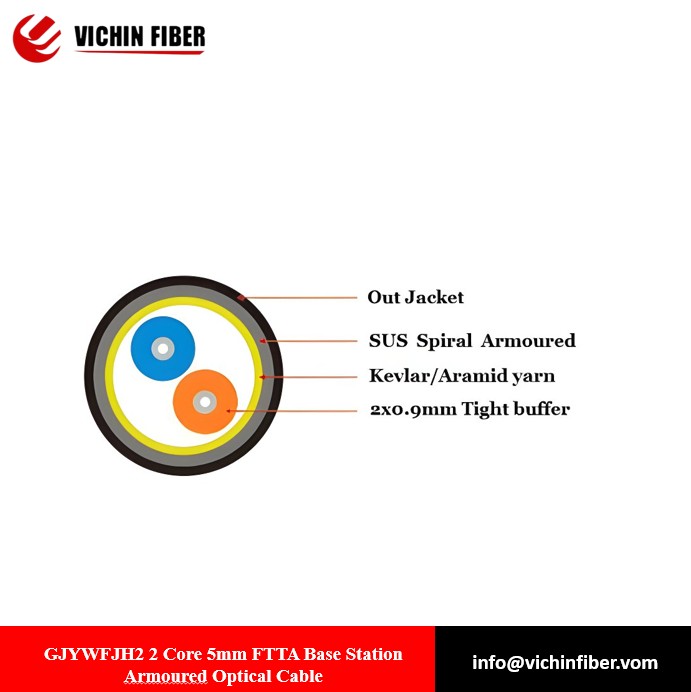

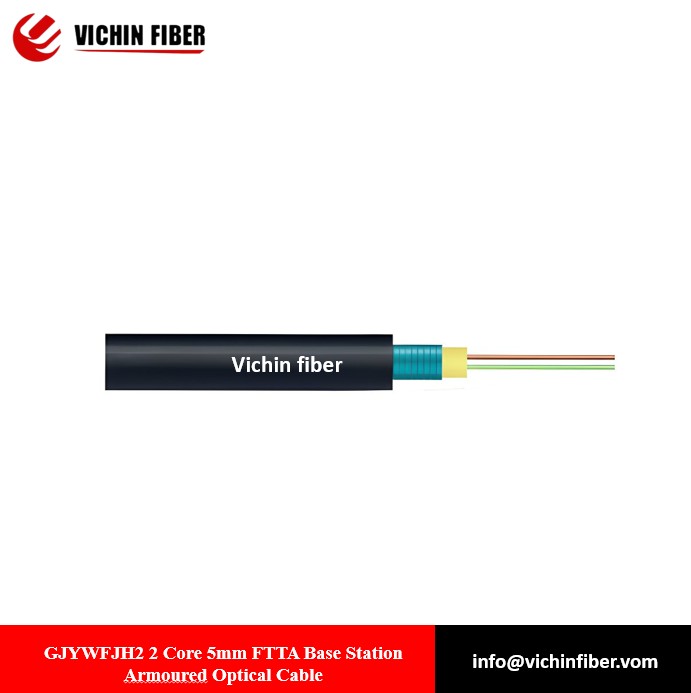

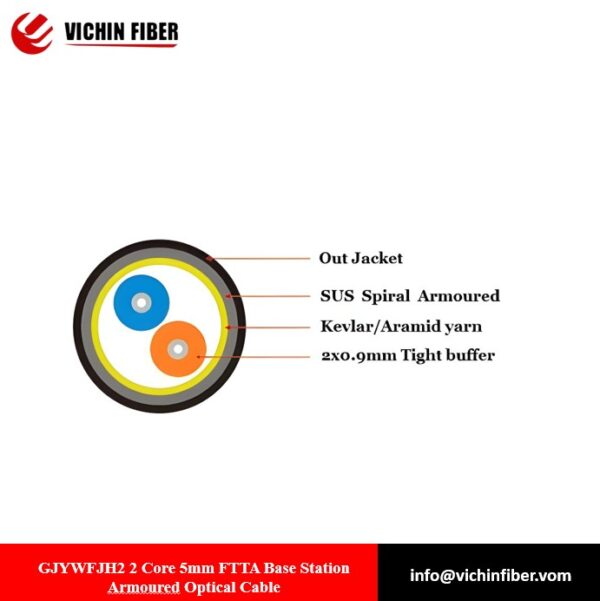

GJYFJH Indoor/Outdoor Cable used as the optical traansmission medium with2.0mm subcable, a layer of aramid yarn is placed outside the compact fiber to enhance the element, and the cable is completed with outside jacket.
Applications:
• Remote base station communication such as RRU or BBU.
• Smart substation and CATV Outdoor application.
• Emergency access to optical fiber communication.
• Used in FTTX,from residence to data center andcabling level and vertical, also used in FTTH cable.
• Mainly used in wireless base station (BS) horizaontal and vertical cabling.
Features:
• Good mechanical and temperature characteristics..Good lateral compression and flexibility.
• Small diameter, light weight, easy to connect,and support large capacity data transmission.
• Mini armored layer used to decrease the outer diameter and cable weight,also convenient for laying and splice.
• Outer jacket material has the advantages of waterproof,flame retardant,environmental protection.
Parameters:
| Cable type | OD(mm) | Nominal Weight(Kg/Km) | Tensile Strength(N) | Crush Resistance(N/100MM) | Bending Radius(mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| GJYWFJH-2Xn | 4.8±0.2 | 28.3 | 800 | 400 | 3000 | 2000 | 20D | 15D |
| Storage/Working temperature(℃) | -40~+70 | |||||||
