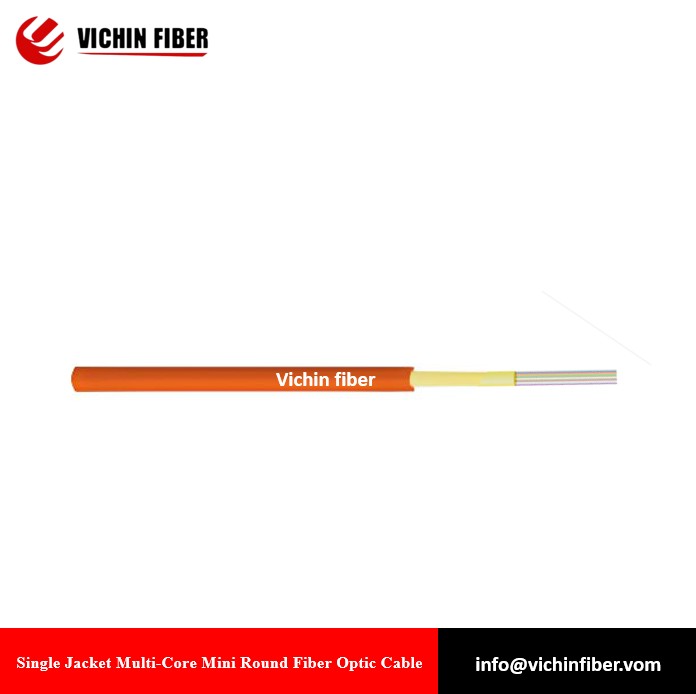

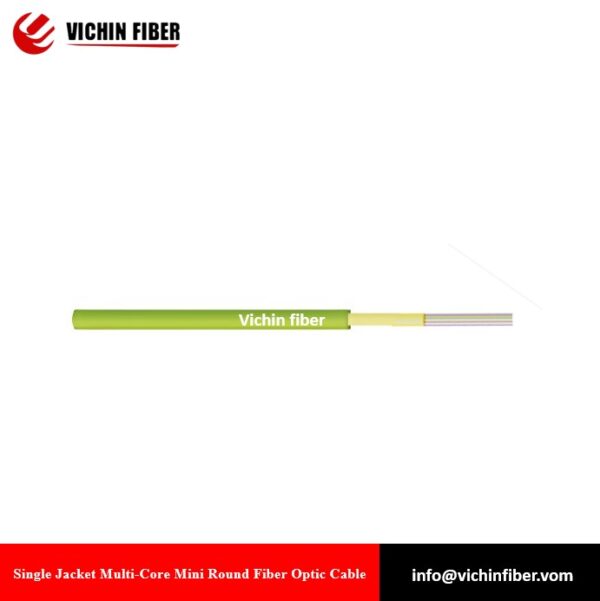

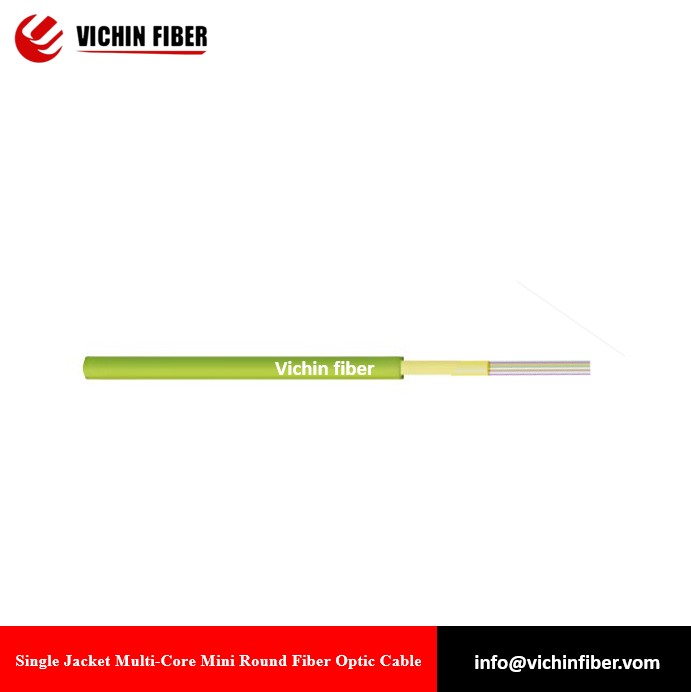

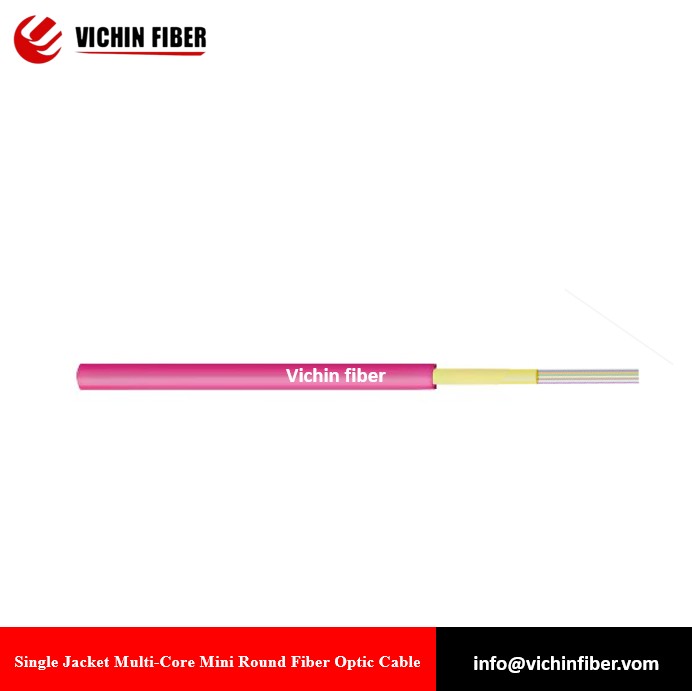

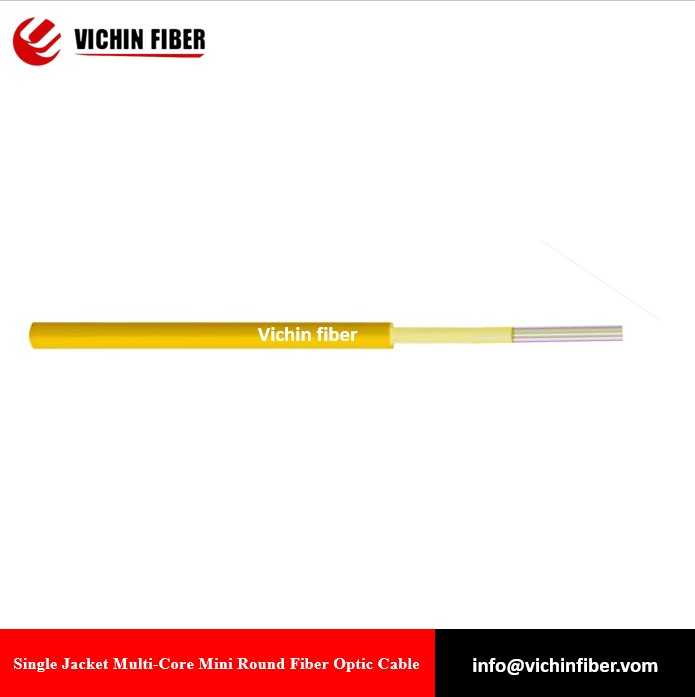

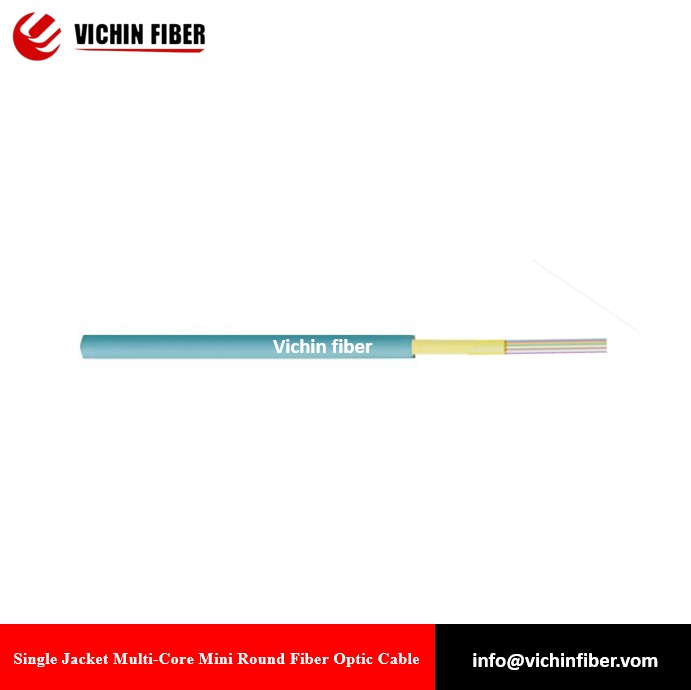

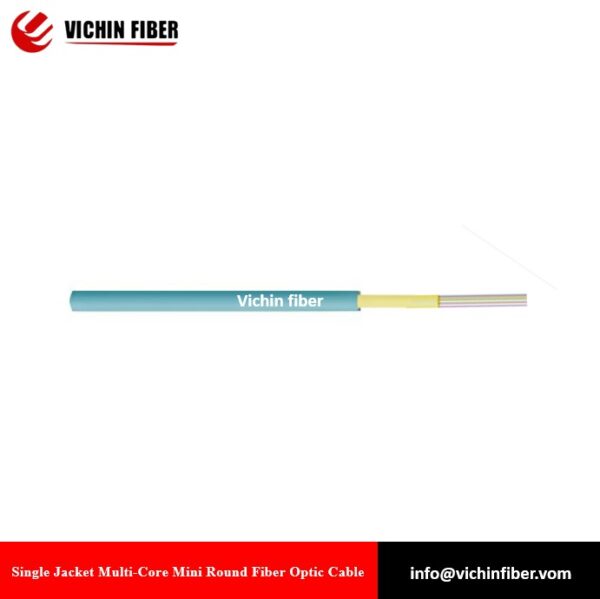

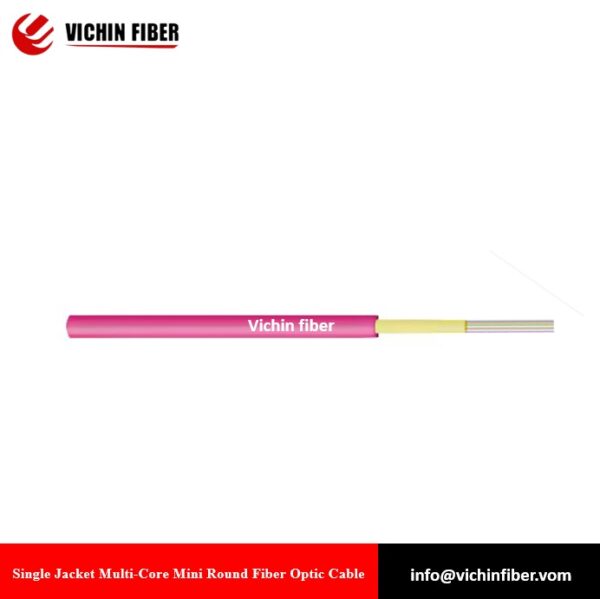

Single Jacket Multi-Core Mini Round Fiber Optic Cable（SM/OM1/OM2/OM3/OM4/OM5）
- Ultra-compact design (3-6mm diameter) saves space in congested pathways
- Bend-insensitive (G.657.A1/A2) minimizes signal loss in tight bends
- OFNR, LSZH (Low Smoke Zero Halogen) or OFNP for durability and fire safety
Description
Kabel Serat Optik Bulat Mini Multi-Inti Berselubung Tunggal（SM/OM1/OM2/OM3/OM4/OM5）
Decription:
Multi-Core Mini Round Cable is a high-density, ultra-slim fiber optic solution designed for space constrained installations.Multi Core Mini Round Cable, available in OS1/OS2 (single-mode) and OM1/OM2/OM3/OM4/OM5 (multimode) type. With outer jacket options in OFNR(PVC) or LSZH. It enables efficient fiber deployment in micro-ducts, high-density data centers, and compact network environments.
Technical Parameters:
| Item | Parameter | ||||||
| Fiber Core | 2 | 4 | 6 | 8 | 12 | 24 | |
| Cable Diameter(mm) | 3 | 3.5 | |||||
| Tensile Strength(N) | Short-term | 250 | |||||
| Long-term | 120 | ||||||
| Crush Resistance(N/100mm) | Short-term | 500 | |||||
| Long-term | 200 | ||||||
| Minimum Bend Radius(mm) | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Max Attenuation(dB/km) | G.652(1310nm/1550nm) | 0.4/0.3 | |||||
| G.657(1310nm/1550nm) | 0.4/0.3 | ||||||
| 62.5µm(850nm/1300nm) | 3.5/1.5 | ||||||
| 50µm(850nm/1300nm) | 3.5/1.5 | ||||||
| 50µm(850nm/953nm) | 3.0/2.4 | ||||||
| Typical Value(dB/km) | G.652(1310nm/1550nm) | 0.36/0.22 | |||||
| G.657(1310nm/1550nm) | 0.36/0.22 | ||||||
| 62.5µm(850nm/1300nm) | 3.0/1.0 | ||||||
| 50µm(850nm/1300nm) | 3.0/1.0 | ||||||
| 50µm(850nm/953nm) | 2.6/1.9 | ||||||
| Operation Temperature(°C) | -20~+70 | ||||||
Features：
• Bend-insensitive fiber (G.657.A1/A2) for tight routing (bend radius ≤5-7.5mm).

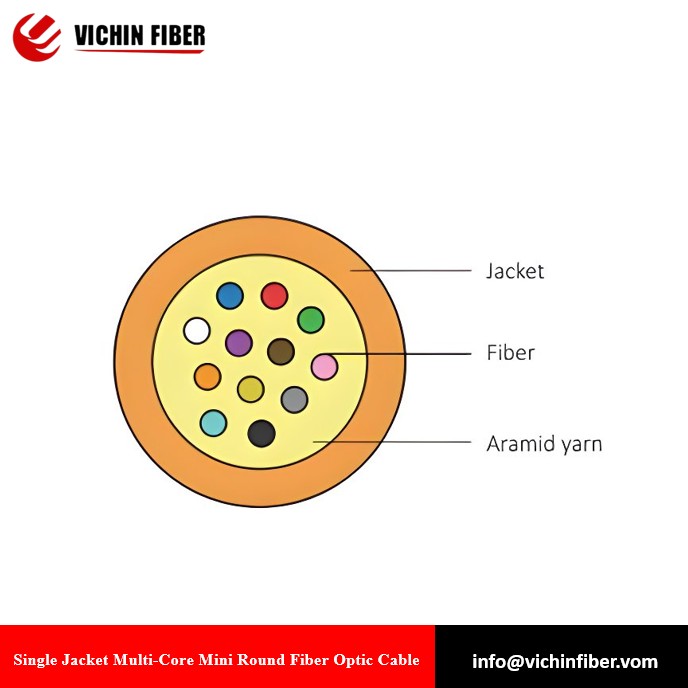

• Aramid yarn reinforcement for tensile strength (≥100N).
• Supports 2, 4, 6, 8, 12, 24 fibers in a single micro cable.
• Optimized for short/long-haul applications.
• Smooth LSZH/OFNR(PVC) coating for easy micro-duct installation.
Application：
• Data Centers (high-density patching, spine-leaf networks).
• FTTH/FTTA (Fiber to the Home/Antenna) – Micro-duct and aerial deployments.
• 5G Mobile Networks – Small-cell fronthaul and backhaul.
• Industrial & Medical – Robotics, endoscopy, and confined-space sensing.
• Military & Aerospace – Lightweight, high-reliability communication links.
