MPO/MTP – LC Cable Trunk / MM Standard Male /12F /OM3/OM4/OM5
Request a QuoteDescription
Product Description：
Senko MPO/MTP – LC كابل ترونك SM/MM Standard Male/12F/OM3/OM4/OM5.

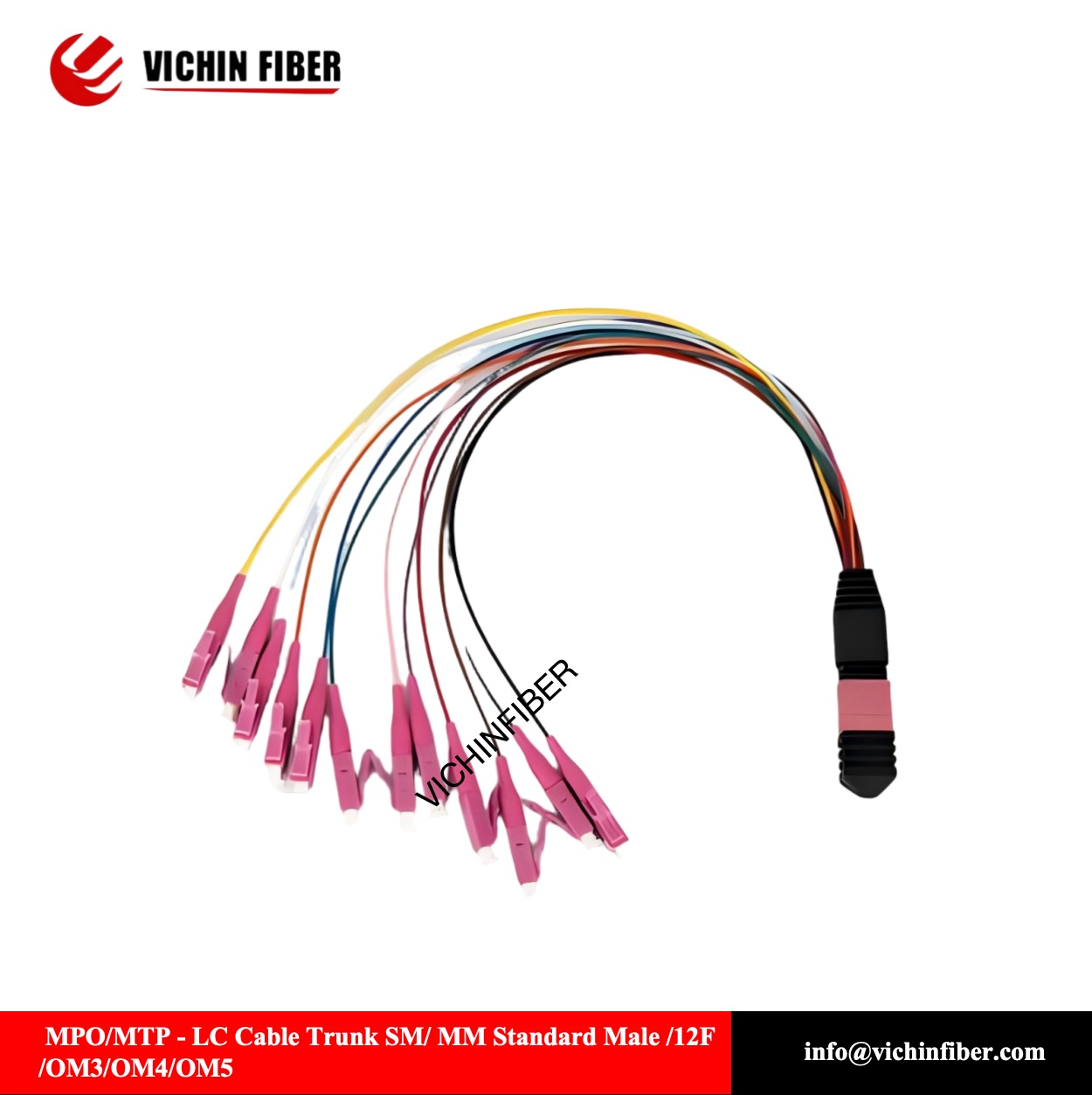

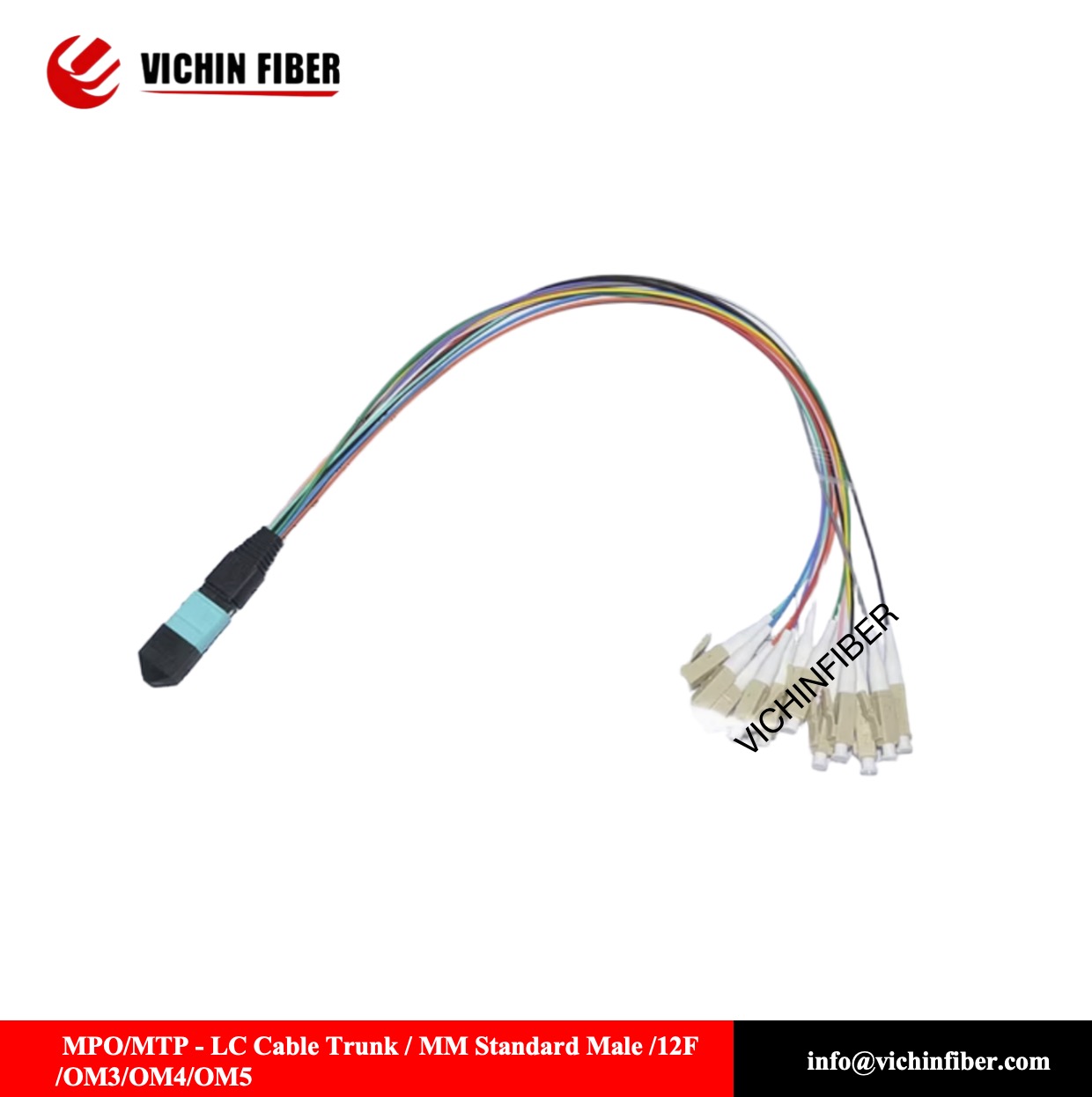

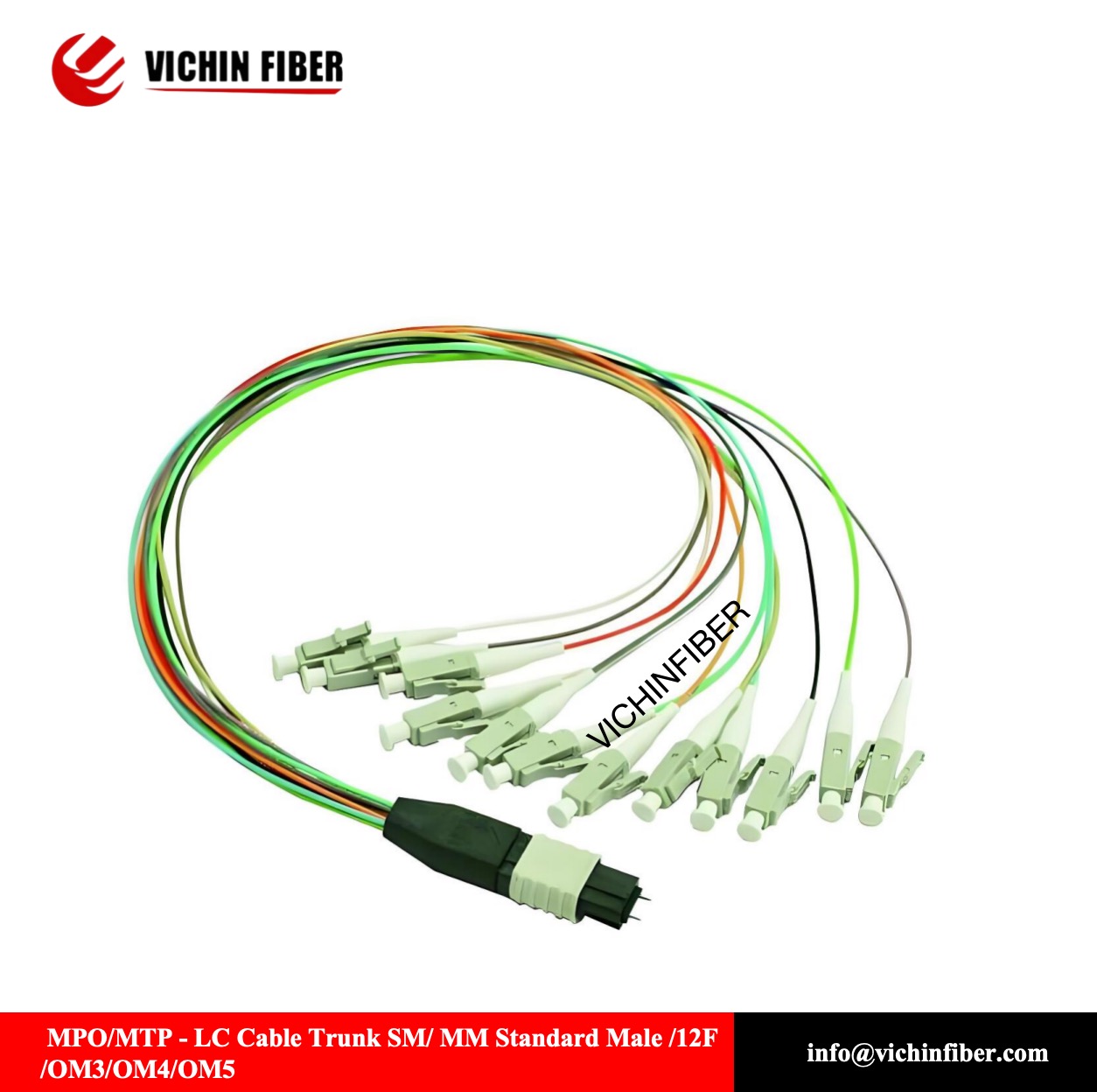

The Multimode MPO/MTP to LC Cable is a high-quality optical fiber solution designed for efficient and reliable data transmission in modern data centers. Built with premium 50/125 OM3/OM4/OM5 multimode fiber, this cable ensures fast and stable connectivity. Its versatile Hydra design allows one MPO/MTP connector to fan out into 12 LC connectors, making it ideal for high-density environments. With customizable lengths and durable construction, it supports a wide range of network applications, including 3G, 4G, WiFi, and wireless LAN.
Specification:
*Fiber Type: 50/125 OM3/OM4/OM5 Multimode Fiber
*Core Count: 12, 16, 24, Customized
*Connector Type: MPO/MTP to LC (Hydra Design)
*Cable Length Options: 0.2m, 0.3m, or customizable
*Sheath Material: PVC and LSZH (Low Smoke Zero Halogen)
*Compatibility: 3G, 4G, WiFi, Wireless LAN
*Operating Environment: Data centers, modules, cassettes
Features
*High-Quality Material: Made with 50/125 OM3/OM4/OM5multimode fiber for fast and reliable data transmission.
*Customizable Lengths: Available in standard or tailored lengths to meet specific user requirements.
*Multi-Network Compatibility: Supports 3G, 4G, WiFi, and wireless LAN networks.
*Durable Design: PVC and LSZH jacket ensure long-lasting performance and safety in data center environments.
*Hydra Design: MPO/MTP to 12 LC fanout configuration for high-density connectivity.
*Plug-and-Play: Easy to install with minimal technical expertise required.
Application
*Data Centers: Ideal for high-density cabling and interconnections in data centers.
*Telecommunication Networks: Efficiently supports 3G, 4G, WiFi, and wireless LAN networks.
*Modules and Cassettes: Designed for use with optical modules, cassettes, and patch panels.
*Network Upgrades: Simplifies network upgrades and expansions with its plug-and-play design.
*Cloud Computing: Perfect for high-speed cloud computing and data transfer.
*Enterprise Networks: Reliable and scalable solution for enterprise-level networking infrastructure.
Technical Specifications
| Connector | MPO/MTP to LC | Jacket OD | 0.9mm |
| Fiber Mode | 50/125μm OM3/OM4/OM5 | Jacket Color | 12 Colors |
| Polish | UPC to UPC | Wavelength | 850/1300nm |
| Fiber Type | 12Fibers | Jacket Material | LSZH / PVC / OFNP |
| Insertion loss(MPO) | ≤0.35dB | Insertion loss(LC) | ≤0.2 dB |
| Return loss | ≥20dB | Storage temperature | -45~85°C |
| Operating temperature | -40~75°C |

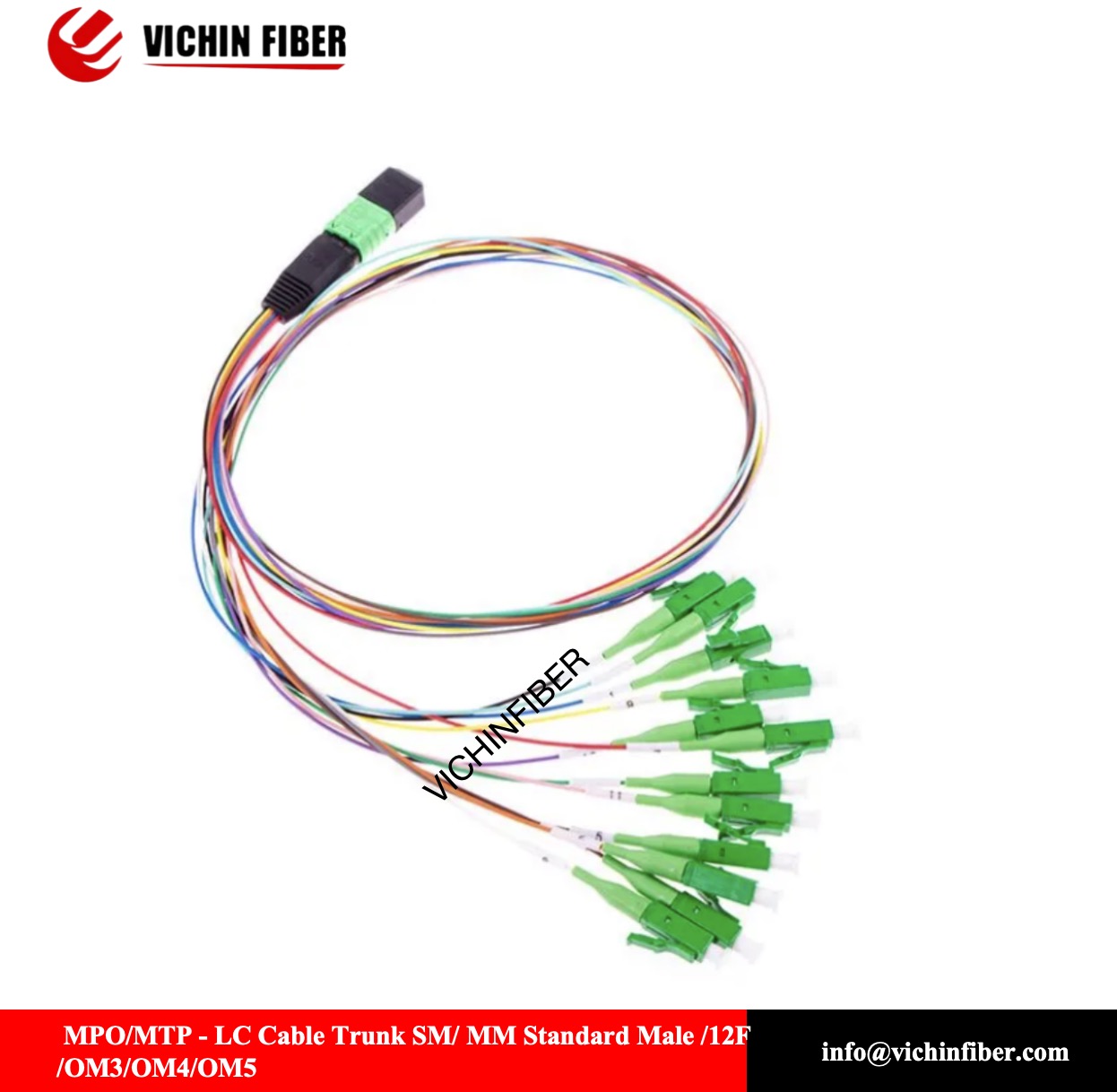

| Specification | Details |
| Fiber Count | 12 Fibers |
| Connector Type | MPO/MTP to LC APC |
| Fiber Type | Single Mode (SM) |
| Insertion Loss | MPO/MTP: ≤0.7 dB (Standard), ≤0.35 dB (Elite) |
| Cable Diameter | 0.9mm |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Operating Temperature | -20°C to +70°C |
| Maximum Distance | 300m for 10GbE |
| Compliance | RoHS, TIA/EIA-568-C.3, IEC 60794-2-50 |
