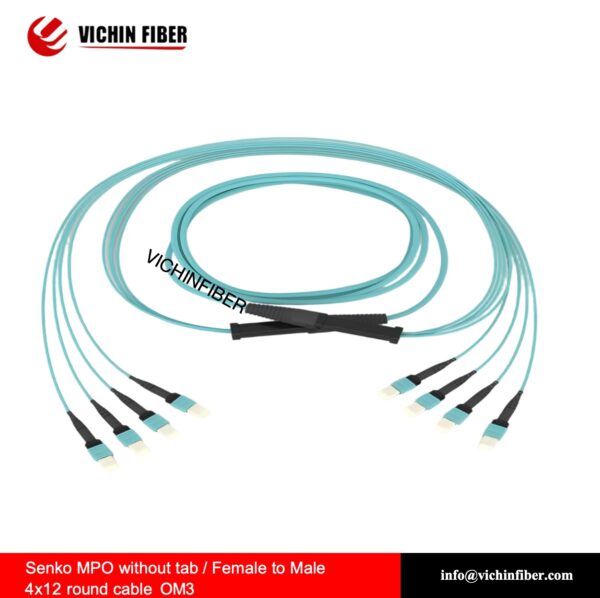

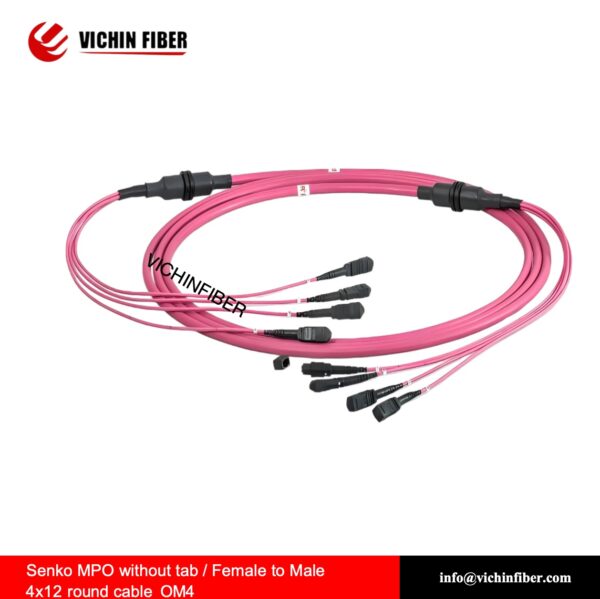

Senko MPO without tab / Female to Male 4×12 round cable / G657.A1 / OM3/OM4
Request a QuoteDescription
Description：
سينكو MPO بدون لسان/أنثى إلى ذكر كابل 4×12 مستديرة/G657. A1/OM3/OM4.
MPO(MTP) connectors are from Senko, Nissin, and Sumitomo.MPO(MTP) Fiber Patch Cord is a kind ofhigh density cable assemblies generally used in three areas.
■ The Data Center application with high dense degree environment.
■ The optical fiber to the building.
■ The internal connector application in fiber equipment.
Features
1.High quality ferrule and accurate alignment by PIN and PIN hole.
2.MPO comes in many types and design blueprint can be provided quickly.
3.General(IL≤0.7dB) and Low Loss(IL≤0.35dB) insertion loss are available.
4.The Connector endface can meet the interference index.
4.Connector compliant with IEC 61754-7(Type MPO connector family).
Applications
1.High density wiring system.
2.Wiring in communication base station and distribution case.
3.Patch Cord connection.
4.40G and 100G system, QSFP module.
5.Optical fiber communication system,CATV
6.LANs and WANs
7.FTTB
parameter：
| Item | Single mode | Multimode | ||
| Polish | UPC | APC | PC | OM1/OM2/OM3/OM4/OM5 |
| Insertion Loss | ≤0.20dB Max(0.15dB Elite) | ≤0.20dB Max(0.15dB Elite) | ||
| Return Loss | ≥55dB | ≥60dB | ≥50dB | ≥35dB |
| Insertion Loss MPO or MTP | ≤0.70dB Max(0.35dB Elite) | ≤0.50dB Max(0.35dB Elite) | ||
| Return Loss MPO or MTP | ≥55dB | ≥60dB | ≥50dB | ≥20dB |
| Pull Strengh | ≥68N | ≥68N | ||
