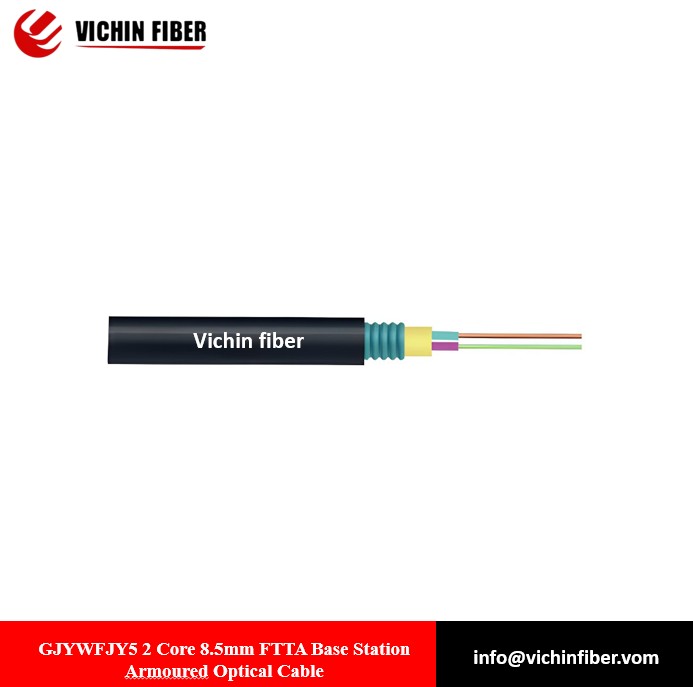

GJYWFJY5 2 Core 8.5mm FTTA Base Station Armoured Optical Cable
The mechanical characteristics of jacket meet the requirements of relevant standards.
Description
Kabel Optik Lapis Baja Stasiun Basis FTTA 2 Inti 8,5mm GJYWFJY5
GJYWFJY5 2 Core 8.5mm FTTA Base Station Armoured Optical Cable.PDF

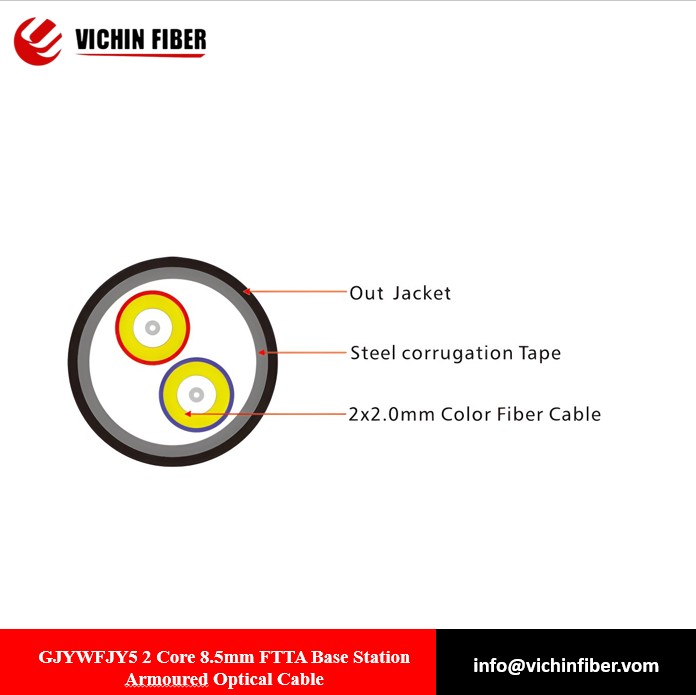

GJYWFJY5 Indoor/Outdoor Cable used as the optical transmission medium with 2.0mm subcable, a layer of aramid yarn is placed outside the compact fiber to enhance the element, protected by Steel corrugation Tape, and the cable is completed with outside jacket(PE or other materials according to customer’s requirements).
Applications:
• Remote base station communication such as RRU or BBU.
• Smart substation and CATV Outdoor application.
• Emergency access to optical fiber communication.
• For optical communication equipmentroom, light distribution frame connection.
• Mainly used in wireless base station (BS) horizaontal and vertical cabling.
Features:
• Goodmechanical and temperature characteristics.
• Good lateral compression and flexibility.
• Small diameter,light weight,easy to connect,and support large capacity data transmission..
• Compact structure, high fiber density,soft and good compressive resistance.
• Outer jacket material has the advantages of water proof,flame retardant,environmental protection.
Parameters:
| Cable type | OD(mm) | Nominal Weight(Kg/Km) | Tensile Strength(N) | Crush Resistance(N/100MM) | Bending Radius(mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| GJYWFJY5-2Xn | 8.5±0.2 | 75.0 | 1000 | 500 | 1200 | 300 | 20D | 15D |
| Storage/Working temperature(℃) | -40~+70 | |||||||
