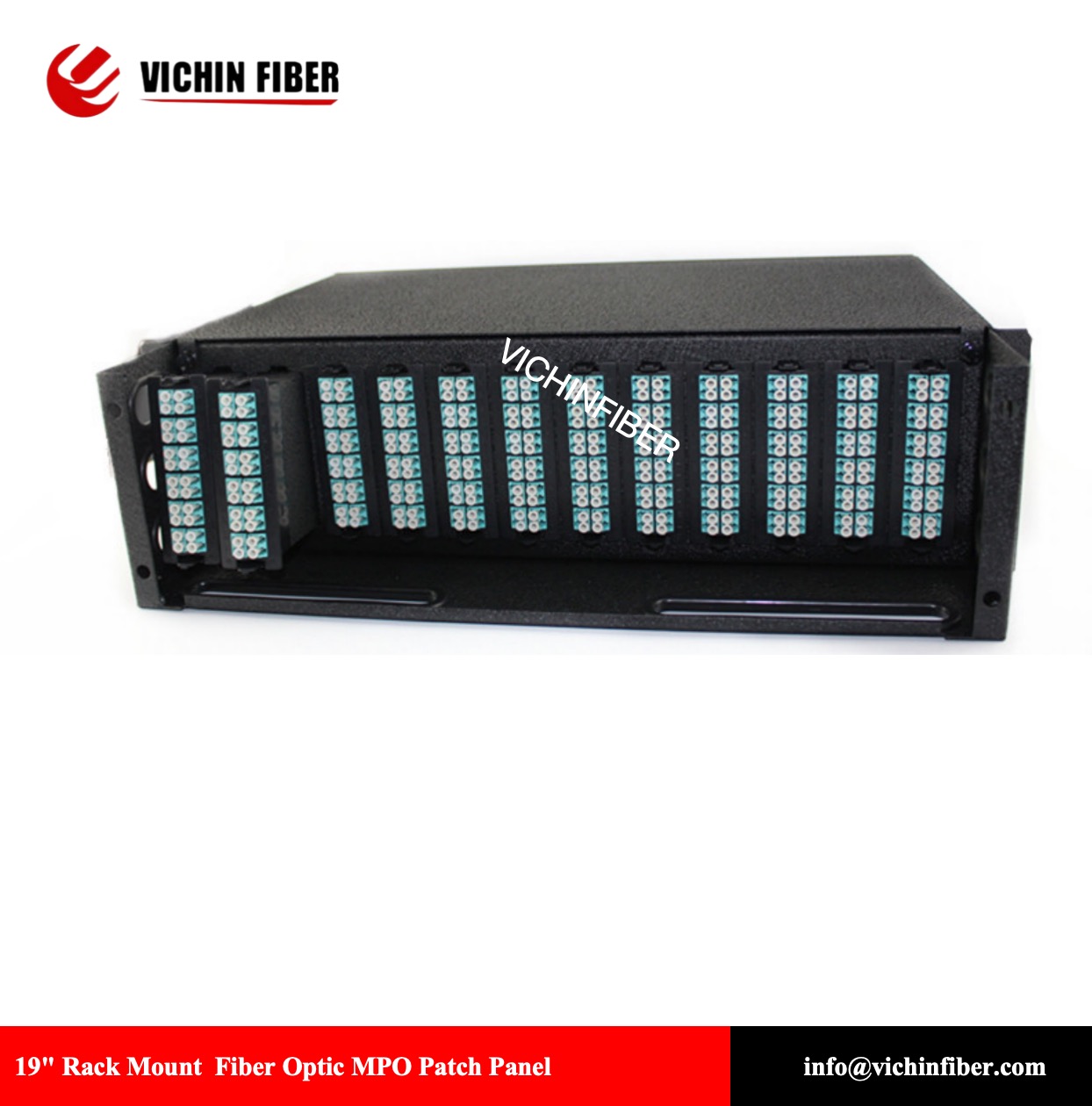

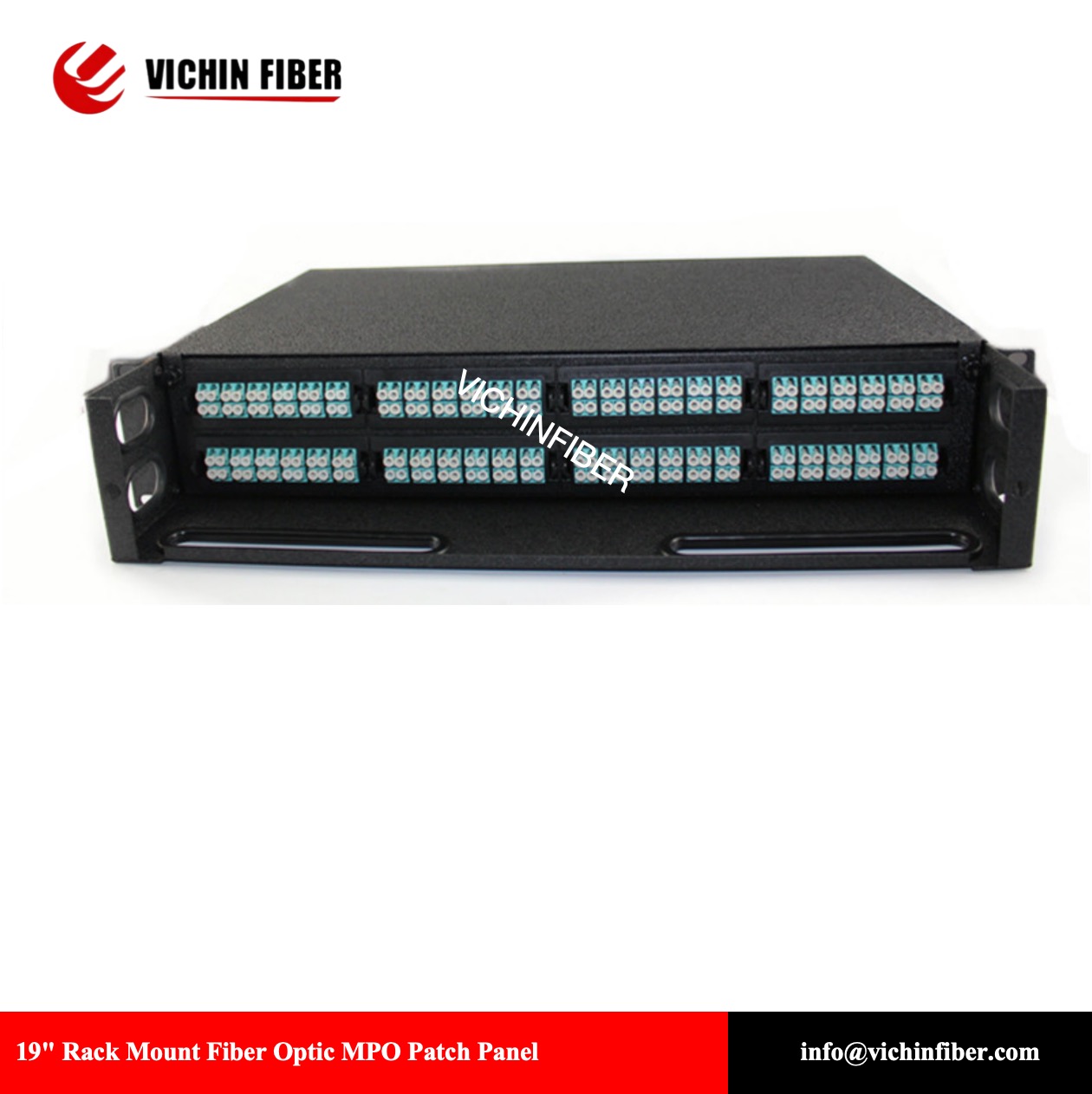

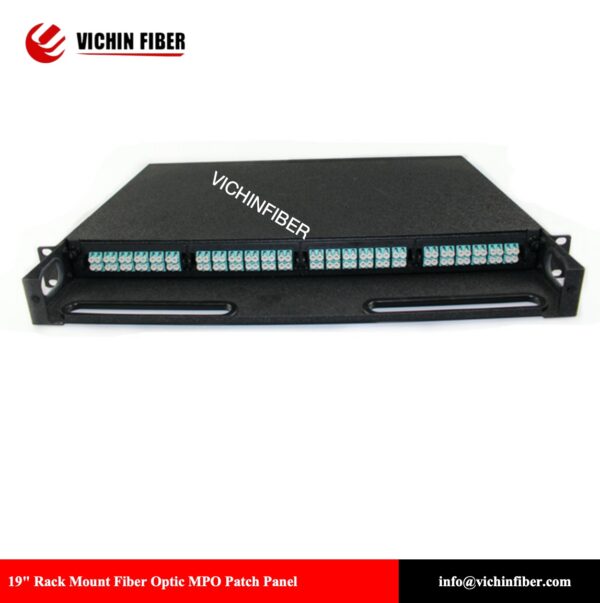

19″ 1-3U MPO/MTP-LC Full cover Fixed Rack mounted Patch panel
Request a QuoteDescription
Description:
19 لوحة توصيل جبل الألياف الضوئية
Vichinfiber MPO series rackmounted patch panel is designed to manage and house easy-plug MTP / MPO to LC fiber cassette modules, for connecting plug-and-play pre-terminated high density MTP / MPO Fiber cabling system.This solution contributes to greater network availability that especially suitable for SAN, LAN and Data Center applications. Each easy-plug MTP / MPO to LC cassette is accommodated with a 12/24-fiber MTP / MPO based fiber assemblies, and pre-loaded with LC adapters in different fiber modes for your choices.
Feature:
Up to 4 Small/MTP modules in 1U Multiple adaptor options available Accepts loose tube, distribution and pre-terminated cables ROHS, REACH SvHC and UL rated Fits standard 19″,sliding-type design, convenient for management.
Application:
>> Machine rooms of data center and internet
>> Data communication network
>> Optical system access network
>> Storage area networking fiber channel
>> High density architectures
>> Machine rooms of data center and internet
>> Data communication network
>> Optical system access network
>> Storage area networking fiber channel
>> High density architectures
Parameter:
Parameter:
|
Height
|
1U (44mm)
|
2U (88mm)
|
3U (132mm)
|
|
Number of Ports
|
4(Max 96core)
|
8(Max 192core)
|
12(Max 288core)
|
|
Width
|
482.6mm
|
||
|
Depth
|
363.2mm
|
||
|
Packaged Weight
|
3.3Kgs
|
||
|
Material
|
1.2mm~1.5mm Cold-rolled steel
|
||
|
Material Coating
|
Powder coating
|
||
|
Color
|
Black
|
||
|
Designed in Accordance With
|
TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754,EN297-1
|
||
|
Compliant to
|
CE, RoHS, Reach/SVHC
|
||
