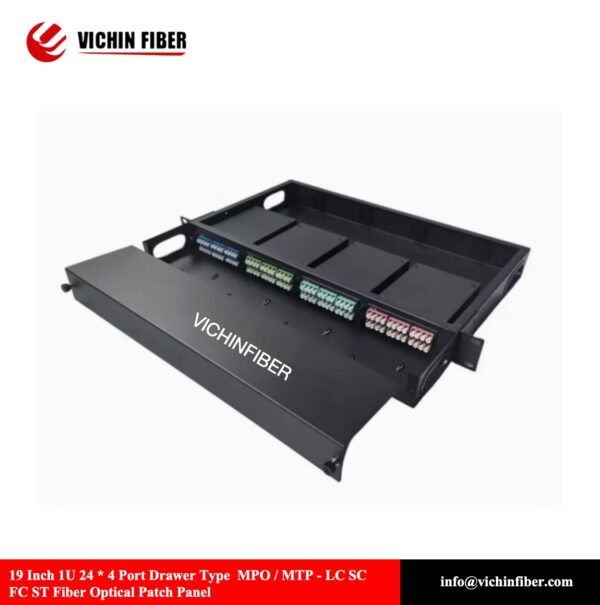

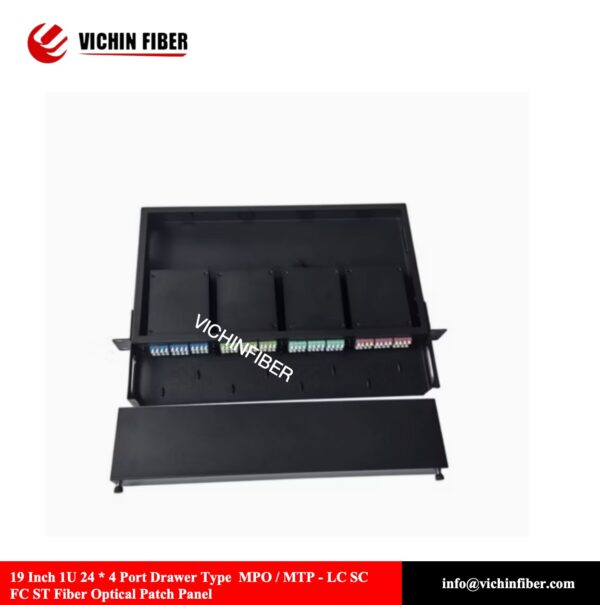

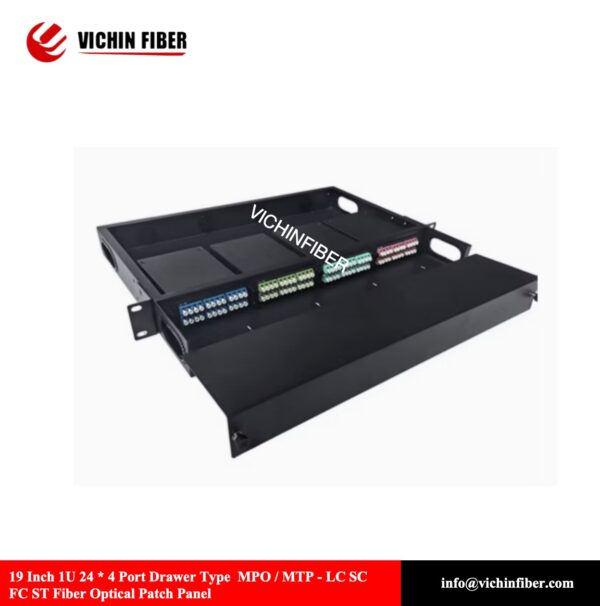

19 Inch 1U 24 * 4 Port Drawer Type MPO / MTP – LC SC FC ST Fiber Optical Patch Panel
Request a QuoteDescription
19 منفذ 1U 24*4 منفذ Drawer Type MPO/MTP -LC SC FC ST Fiber Optical Patch لوحة
Applications：
1.Data communication network
2.Optical System Access network
3.Storage area networking fiber channel
4.High density architectures
5.Asynchronous Transmission Mode(ATM)
6.Gigabit Ethernet
7.Active Device/Transceiver Interface
8.CATV, Video and Multimedia
9.Premise Installations
10.Telecommunication Networks
11.Parallel optical interconnects between PC Cards and patch panels
12.Interconnection for O/E modules
13.Optical Switch interframe connections
Features:
1. High density 1U 96 cores
2. 4×24 cores mpo-lc modules
3. Tower buckle upper cover design for convenient wiring
4. Module independent wiring design
5. High quality electrostatic spraying anti-corrosion treatment
6. 19 inch standard installation
Technical Specifications：
|
Item
|
Parameter
|
|
Model
|
1
|
|
Material
|
1.2mm Cold rolled plate
|
|
Ports
|
48/96
|
|
Colo
|
Black or Customized
|
|
Height
|
1U
|
|
Optional Accessories
|
Adapters, Pigtails,Heat-shrink tubes ,Adaptors, Pigtails
|
Module Physical Characteristics：
|
Connector Type
|
MPO-LC/UPC
|
|
Fiber Brand
|
YOFC multimode fiber and SMF-28® Ultra optical fiber
|
|
Polarity
|
Type A, Type B, Type C
|
|
Fiber type
|
OS2(G675a)/OM1/OM2/OM3/OM4
|
|
Fiber Cores
|
48 / 96 cores
|
|
Cable Jacket
|
Low Smoke Zero Halogen (LSZH)
|
|
Adapter Color
|
OS2: UPC Blue, APC Green ; OM3: Aqua; OM4: violet
|
|
Connectors Color
|
MPO: OS2: Green; Multimode: Aqua
|
|
LC: OS2: UPC Blue, APC Green; Multimode: Beige
|
|
|
Cassettes Color
|
Black
|
|
Material thickness
|
1.2mm
|
|
Working storage temperature
|
-25℃~+80℃
|
|
Gross weight
|
0.8kg
|
