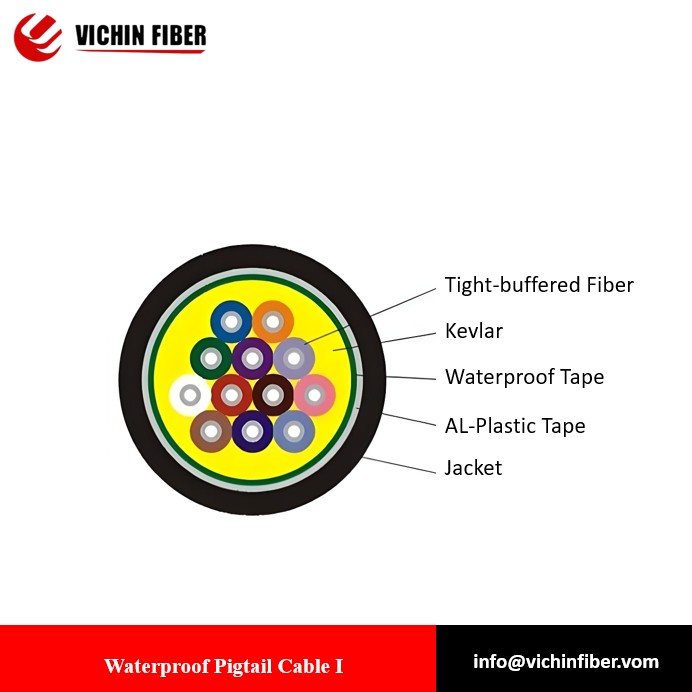

Waterproof Pigtail Cable I
• Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi -mode cable, or other types of fiber;
• Fiber Count: The total number of fibers in the cable;
• Jacket Material: Environmental polyethylene (PE) ,or other contracted material;
• Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
• Cable Dimension: The nominal cable dimension, or other contracted dimension;
Description
Kabel Pigtail Tahan Air I
Applications:
- Used in pigtail and patah cords;
- Used in optical connections in optical communication equipment rooms and optical distribution frames;
- Used in indoor cabling.
Features:
- Have good mechanical properties and temperature characteristics.
- Good pressure resistance and flexibility.
- It can withstand all kinds of harsh environments in the wild and has a long service life. The jacket has good toughness, tensile strength and good grounding.
- Use the following measures to ensure the waterproof performance of the fiber optic cable.
- The cable core is tightly wrapped around the water blocking tape.
- Longitudinal package coated aluminum with moisture-proof layer.
- Good water blocking material prevents longitudinal water seepage of the optical cable.
Specifications
| Fiber Count |
Cable Dimension (mm) |
Cable Weight (kg/km) |
Tensile | Crush (N/100mm) |
Min. Bend Radius (mm) |
|||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | |||
| 2 | 5.8 | 27 | 130 | 440 | 300 | 1000 | 20D | 10D |
| 4 | 5.8 | 29 | 130 | 440 | 300 | 1000 | ||
| 6 | 6.5 | 33 | 130 | 440 | 300 | 1000 | ||
| 8 | 7 | 40 | 130 | 440 | 300 | 1000 | ||
| 10 | 7.5 | 46 | 130 | 440 | 300 | 1000 | ||
| 12 | 8 | 52 | 130 | 440 | 300 | 1000 | ||
| Note: 1.All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to tight buffered fiber of 0.9mm outer diameter; 3. D is outer diameter of the round cable; 4.The minimum bend radius (static) is 5D when G657 fiber is used. |
||||||||
