Waterproof Pigtail Cable Ⅱ
• Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi -mode cable, or other types of fiber;
• Fiber Count: The total number of fibers in the cable;
• Jacket Material: Environmental polyethylene (PE) ,or other contracted material;
• Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
• Cable Dimension: The nominal cable dimension, or other contracted dimension;
Description
Kabel Pigtail Tahan Air Ⅱ
Applications:
- Used in pigtail and patah cords;
- Used in optical connections in optical communication equipment rooms and optical distribution frames;
- Used in indoor cabling.
Features:
- Have good mechanical properties and temperature characteristics.
- Good pressure resistance and flexibility.
- It can withstand all kinds of harsh environments in the wild and has a long service life. The jacket has good toughness, tensile strength and good grounding.

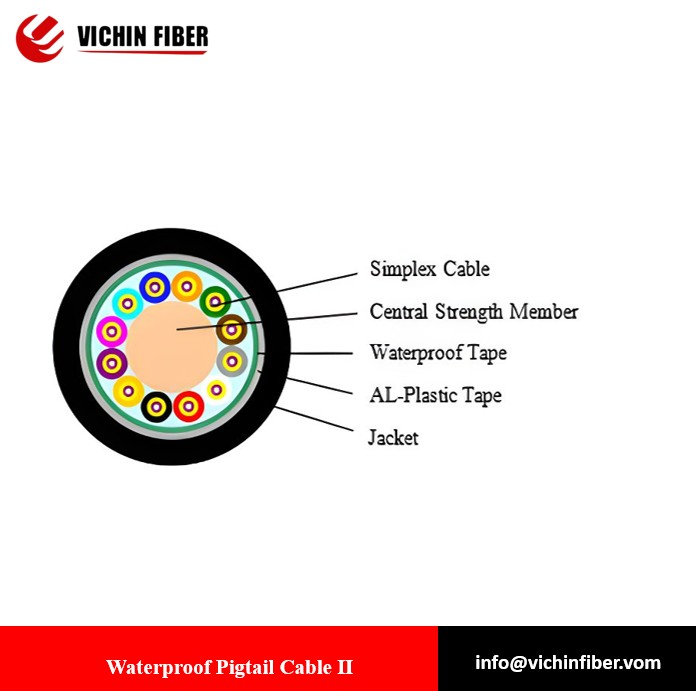

- Use the following measures to ensure the waterproof performance of the fiber optic cable.
- The cable core is tightly wrapped around the water blocking tape.
- Longitudinal package coated aluminum with moisture-proof layer.
- Good water blocking material prevents longitudinal water seepage of the optical cable.
Specifications
| Fiber Count |
Cable Dimension (mm) |
Cable Weight (kg/km) |
Tensile (N) |
Crush (N/100mm) |
Min. Bend Radius (mem) |
Range of Temperature(℃) | |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 2 | 8.7 | 54 | 200 | 400 | 500 | 1000 | 20D | 10D | -20~+60 |
| 4 | 87 | 56 | 200 | 400 | 500 | 1000 | |||
| 6 | 10 | 81 | 300 | 600 | 500 | 1000 | |||
| 8 | 11.7 | 108 | 400 | 800 | 500 | 1000 | |||
| 10 | 13.3 | 134 | 500 | 1000 | 500 | 1000 | |||
| 12 | 15 | 183 | 600 | 1200 | 500 | 1000 | |||
| Note:1. All the values in the table, which are for reference only. are subject to change without notice; 2. The cable dimension and weight are suitable to the simplex cable of 2.0mm outer diameter; 3. D is outer diameter of the round cable; 4. The minimum bend radius (static) is 5D when G657 fiber is used. |
|||||||||
