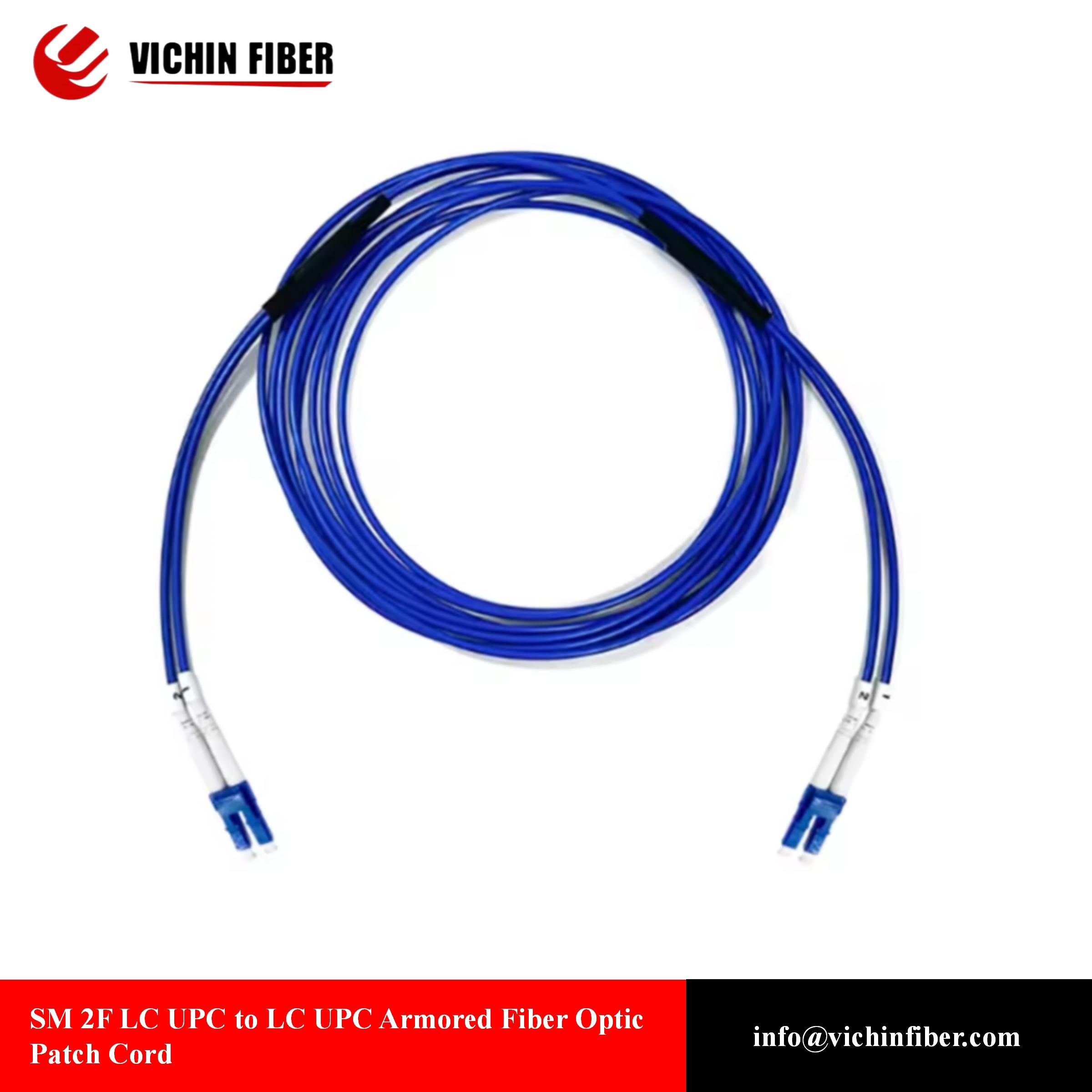

SM 2F LC UPC to LC UPC Armored Fiber Optic Patch Cord
Les câbles de brassage blindés sont constitués d’une gaine métallique logée dans une enveloppe extérieure robuste. Providing greater protection than standard cables, it enables installation in special environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.
Description
Products Description
|
Connector A
|
LC
|
Connector B
|
LC
|
|
Fiber Mode
|
SM
|
Polish Type
|
UPC to UPC
|
|
Fiber Count
|
Duplex
|
Fiber Type
|
G652D
|
|
Jacket
|
PVC
|
Jacket OD
|
2*3.0mm
|
|
Jacket Color
|
Blue
|
Wavelength
|
1310/1550nm
|
|
Insertion Loss
|
≤0.3dB
|
Return Loss
|
≥45dB
|
|
Branch length
|
30 cm
|
Storage Temperature
|
-40°C to +85°C
|
Features
* Low insertion loss and high return loss
* Ceramic ferrule, high quality cable protection sleeve
* Good repeatability and good Intercalation Performance
* Good temperature stability, -40°C~+85°C
* Strong tensile properties, not less than 90N
* FTTH (Fiber to The Home)
* LAN (Local Area Network)
* FOS (fiber optic sensor)
* Fiber Optic Communication System
* Optical fiber connected and transmitting equipment
* Defense combat readiness
