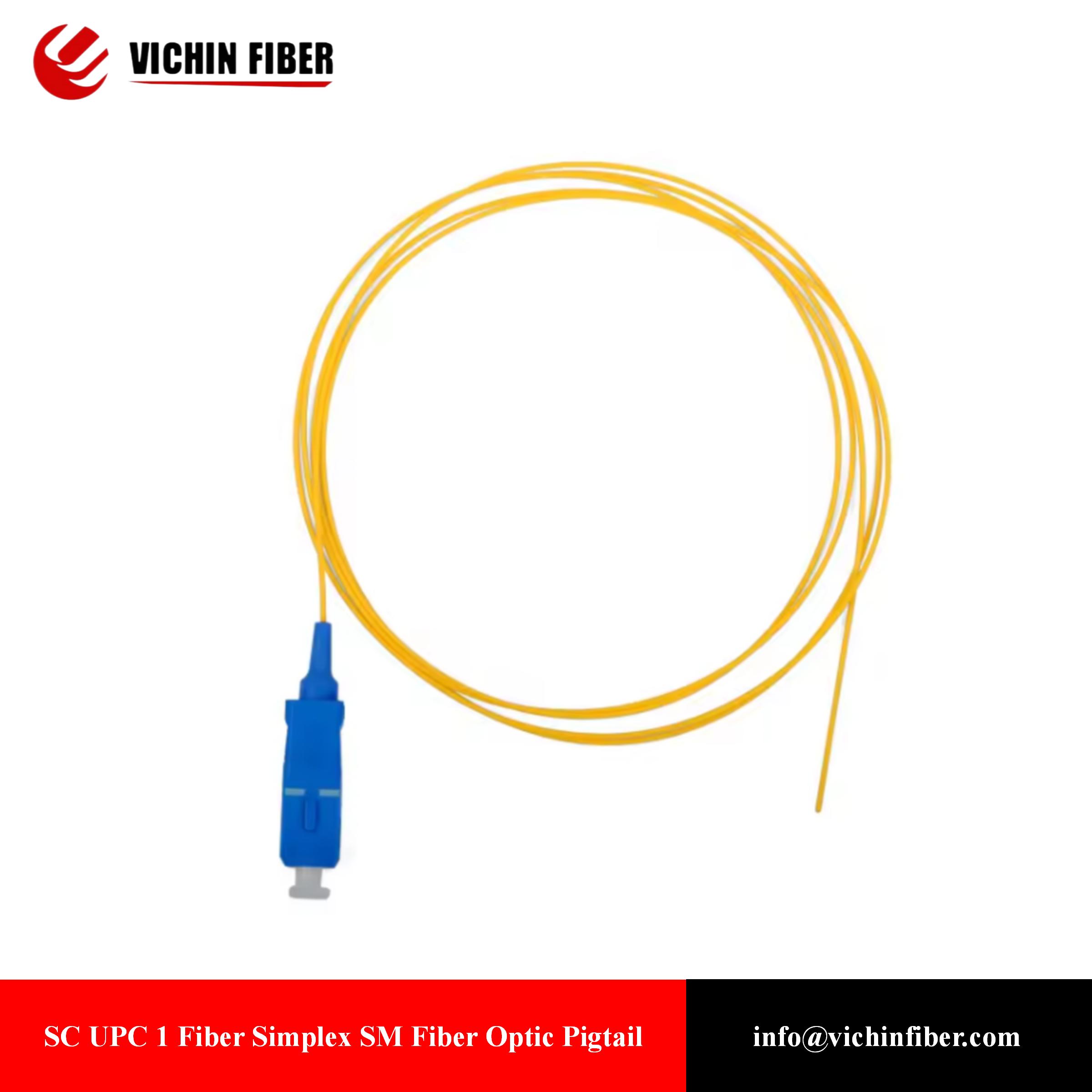

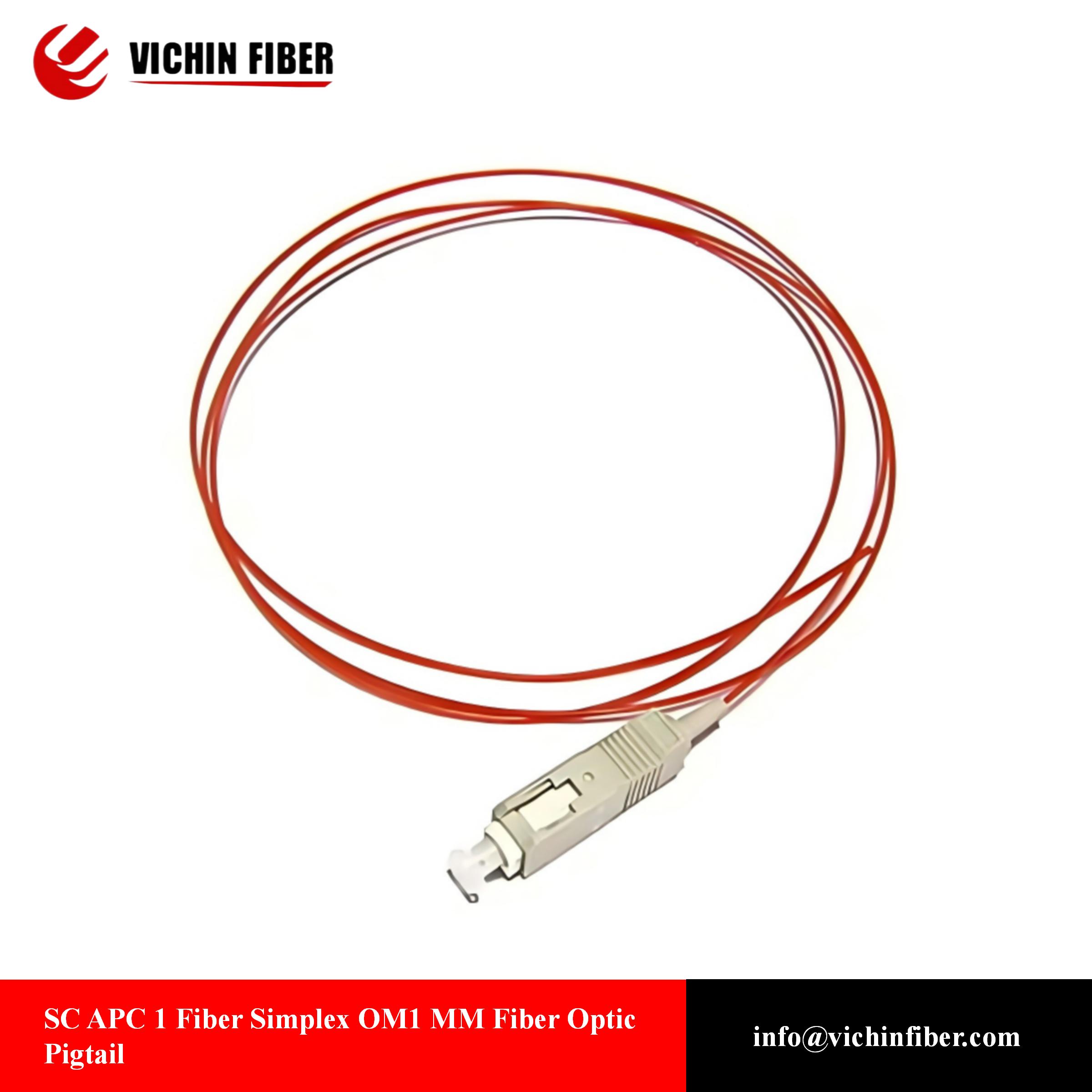

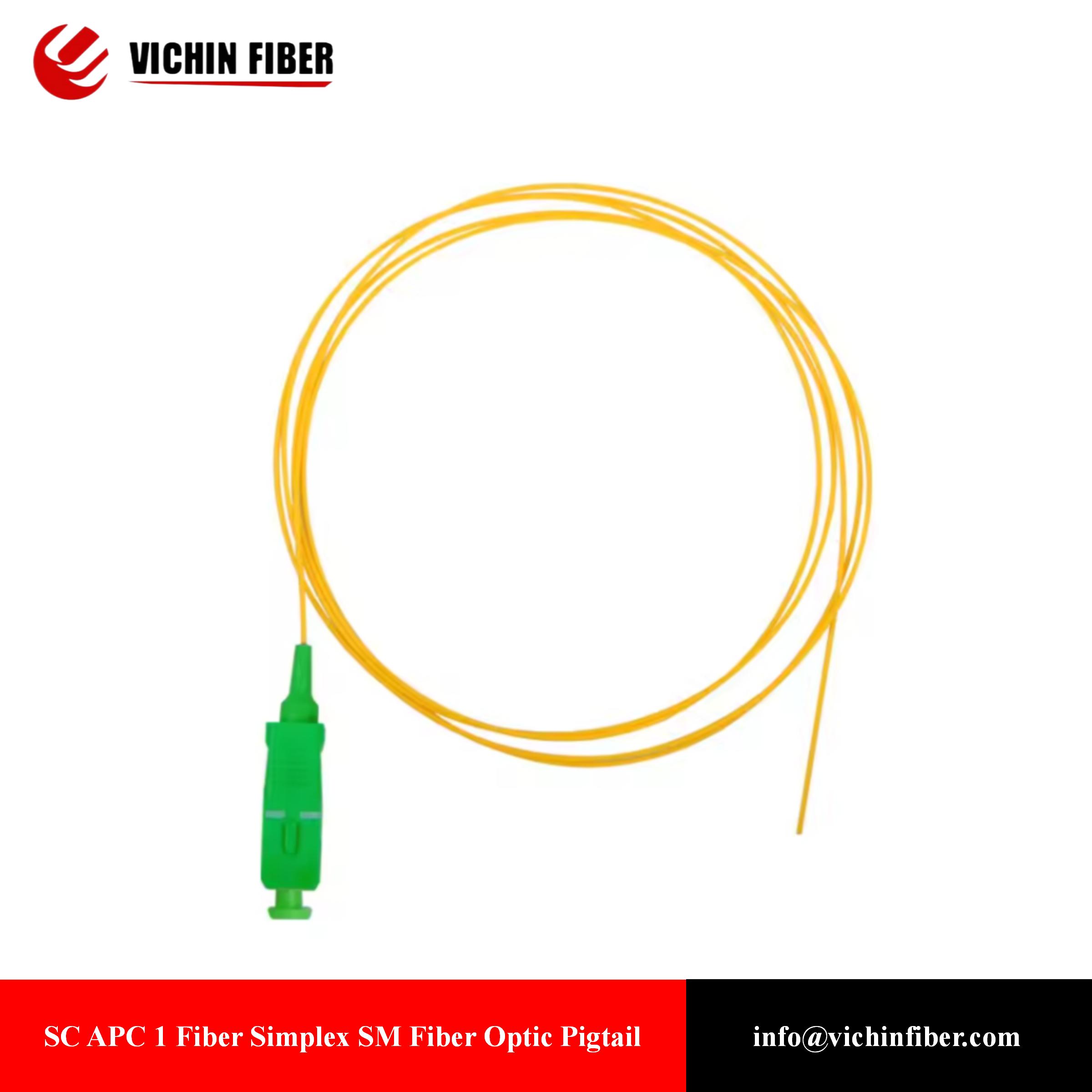

Single Typical 1 Fiber SC Fiber Optic Pigtail
Un jarretière à fibre optique est un câble à fibres optiques à gaine serrée, avec des connecteurs pré-terminés à une extrémité et des fibres exposées à l’autre.The exposed end could be stripped and fusion spliced to a single or multi-fiber trunk. Mainly designed for data center, FTTH/FTTX, LAN and WAN, CATV network, telecom network applications etc.
Description
| item | value |
| Model Number | SM (G.652D)/OM1/OM2/OM3/OM4/OM5 |
| Type | Fiber Pigtails |
| Place of Origin | China |
| Ningbo | |
| Brand Name | VICHIN |
| Use | FTTH |
| Network | Wiegand |
| Port | APC/UPC/PC |
| Connector Type | LC/SC/FC/ST, SC/FC/ST/LC |
| Polish Type | APC/UPC/PC |
| Insertion Loss | ≤0.30dB (SM) ≤0.20dB (MM) |
| Return Loss | APC: ≥60dB UPC: ≥50dB PC: ≥45dB |
| Cable Diameter | 0.9mm/2.0mm/3.0mm |
| Operating Temp | -40c ~ +85c |
| Standard Length | 1m/2m/3m (Customizable) |
| Jacket Color | Yellow (SM) / Orange (OM1/2) / Aqua (OM3/4) |
| Tensile Strength | ≥100N (0.9mm) |
| Bend Radius | ≤15mm (static) |
