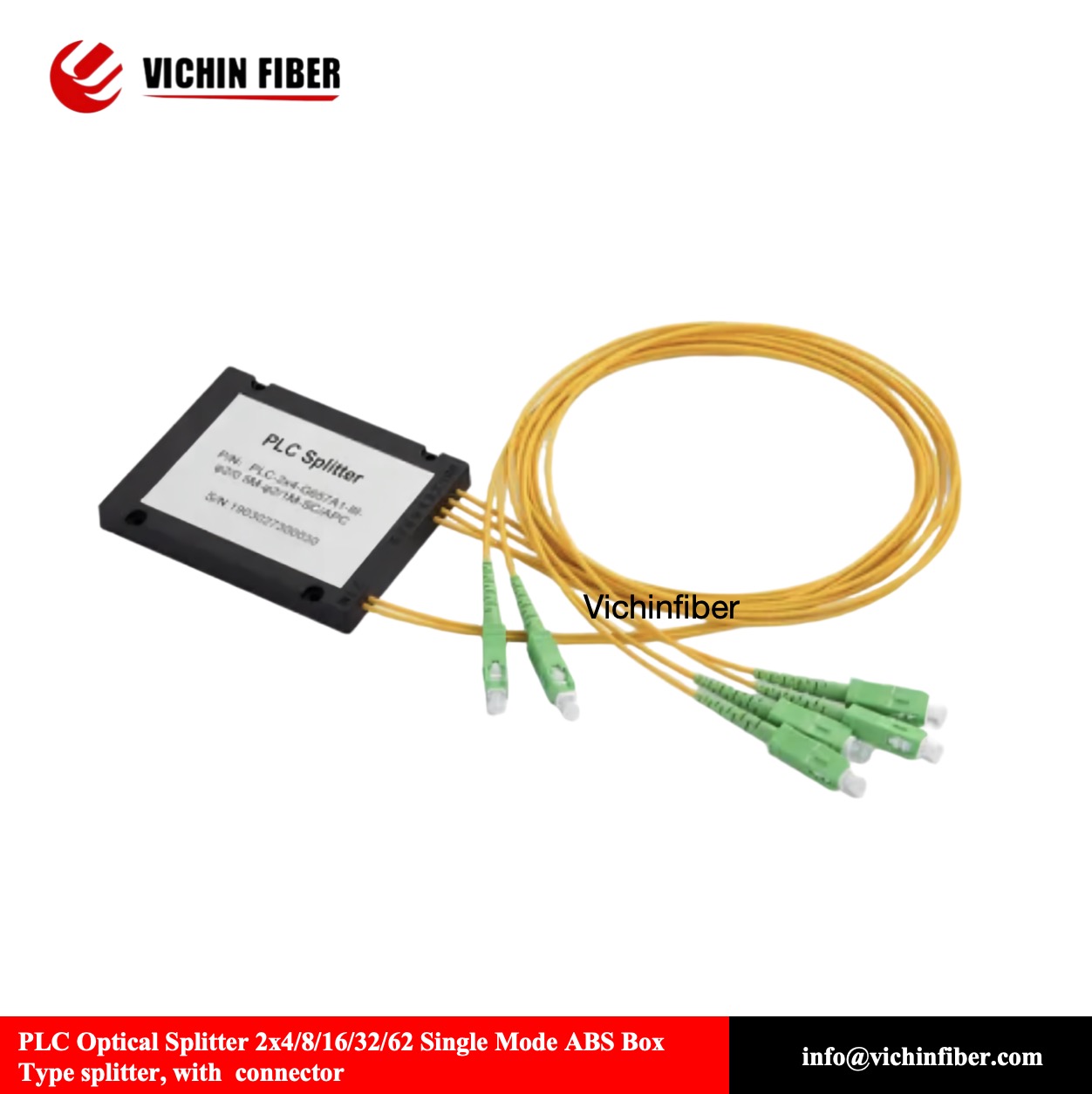

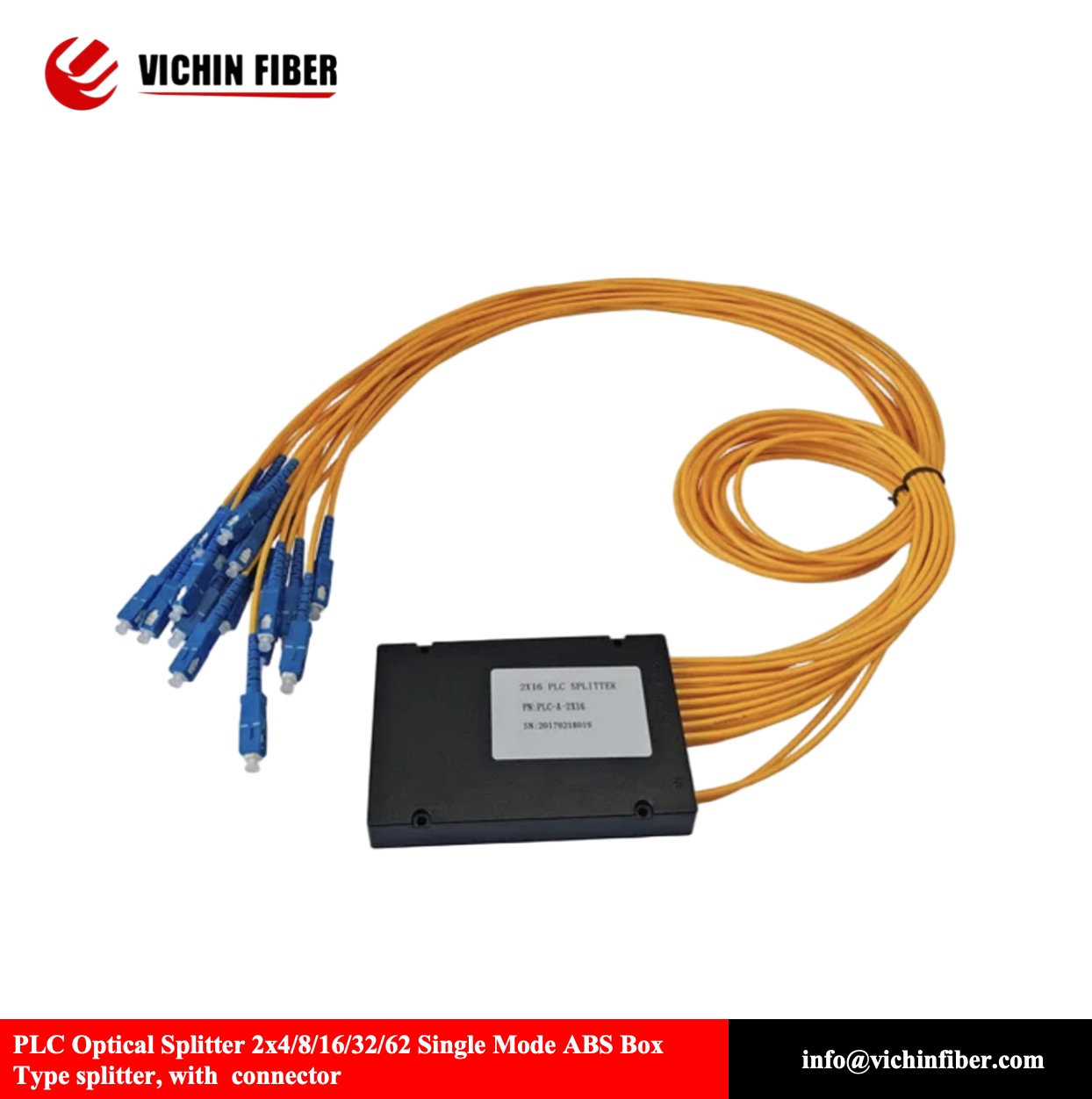

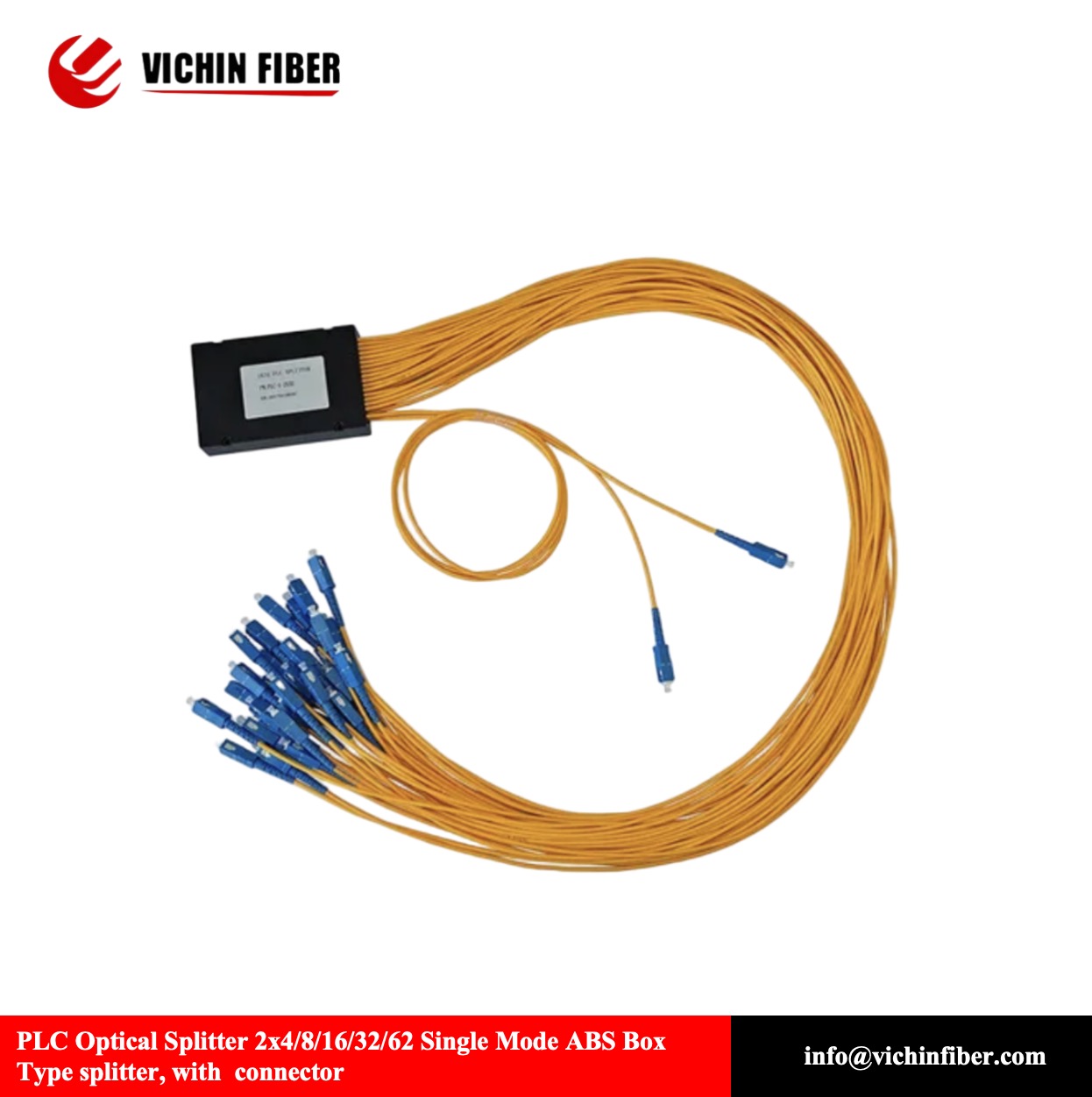

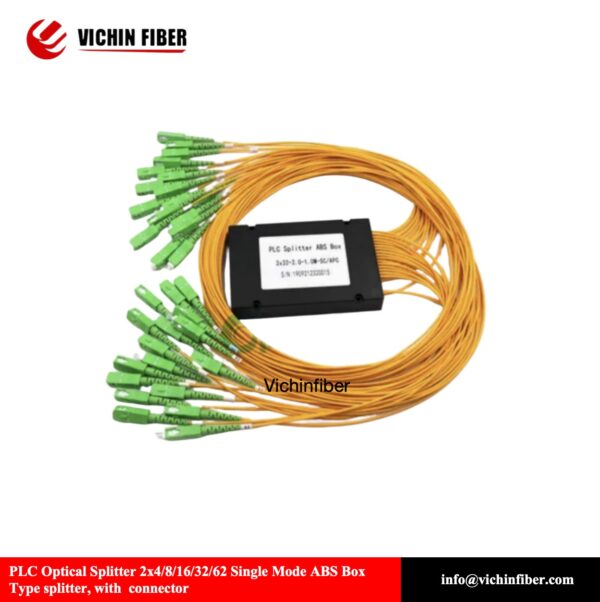

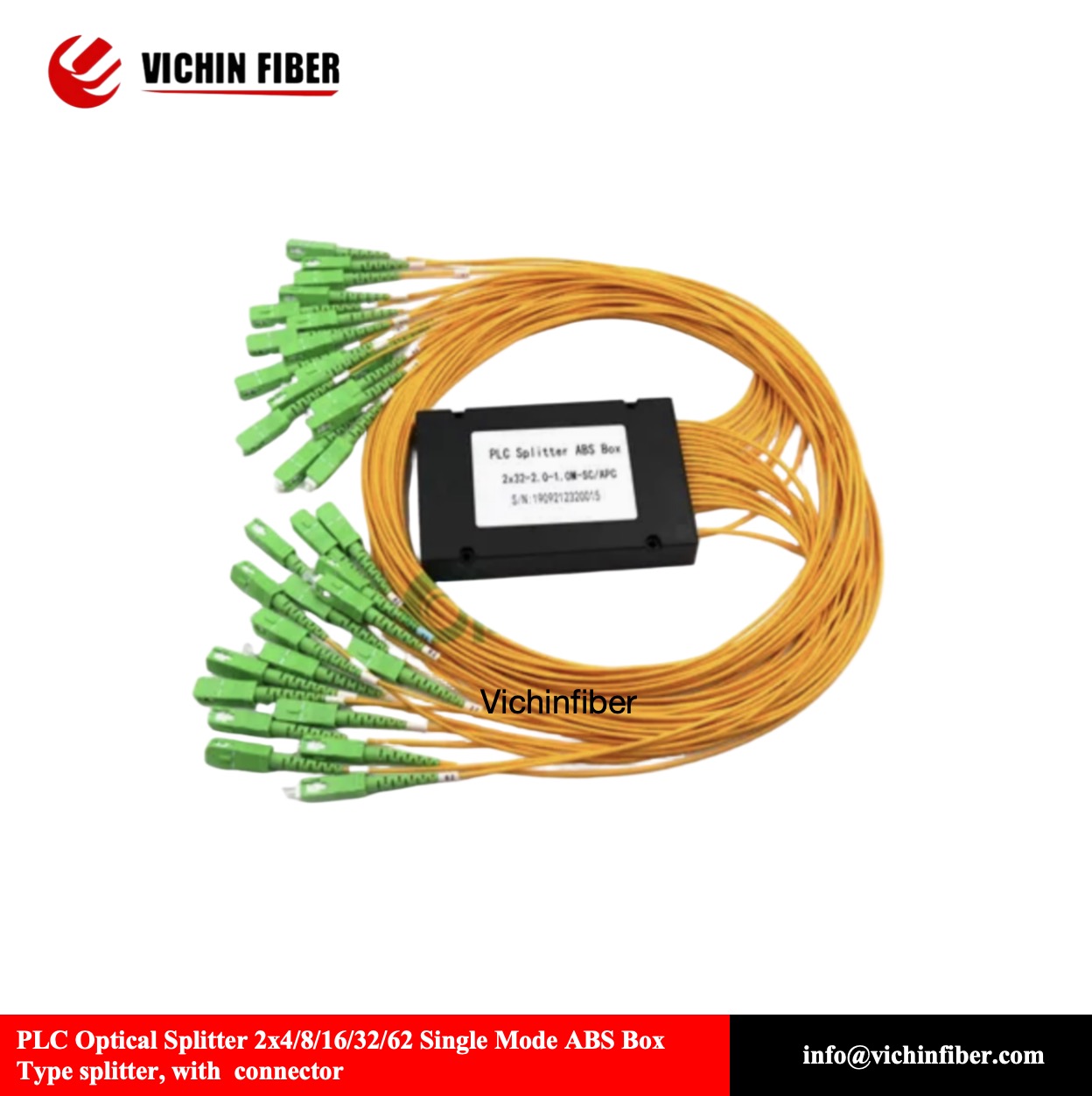

PLC Optical Splitter 2×/4/8/16/32/64 Single Mode ABS Box Type with SC Connector
Plastic Box Type PLC Splitter is an optical splitter used to divide optical signals into multiple outputs. Housed in a durable and cost-effective plastic box, it ensures low signal loss and high performance. With a wide operating wavelength range, it is ideal for applications like FTTH, telecom networks, and cable TV systems, offering a reliable solution for efficient signal distribution.
Description
Description:
PLC البصري المقسم 2×/4/8/16/32/64 الوضع الواحد ABS صندوق النوع مع SC موصل
Fiber optic splitter is also called optical splitter, is one of the most important passive devices in optical fiber link, is with multiple inputs and multiple output end of the optical fiber connected devices. The fiber optic splitter by the light splitting principle can be divided into the fused biconical taper and planar waveguide type (PLC type).
| Product Name | Plastic box 2×/4/8/16/32/64 PLC splitter,with connector |
| Package Size | 100*80*10mm |
| Weight | 0.35kg |
| Insertion Loss | ≤10.5dB |
| 2 x N | ||||||||
| Parameter | Unit | 2 x 2 | 2 x 4 | 2 x 8 | 2 x 16 | 2 x 32 | 2 x 64 | |
| Insertion Loss | Max. | dB | 4.0 | 7.3 | 10.7 | 14 | 17.5 | 22.5 |
| Channel Uniformity | Max. | dB | 0.8 | 1.0 | 1.0 | 1.5 | 1.8 | 3.0 |
| Polarization Dependent Loss | Max. | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.4 |
| Wavelength Dependent Loss | Max. | dB | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Temperature Dependent Loss | Max. | dB | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Connector Dependent Loss | Max. | dB | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Operating Wavelength | Min.-Max. | nm | 1250 ~ 1650 | |||||
| Return Loss | Min. | dB | 55 | |||||
| Directivity | Min. | dB | 55 | |||||
| Operating Temperature | °C | -40 ~ + 85 | ||||||
| Storage Temperature | °C | -40 ~ + 85 | ||||||
| Maximum Input Power | Max. | mW | 500 | |||||
| Fiber Type | – | ITU G.652D or G.657A | ||||||
