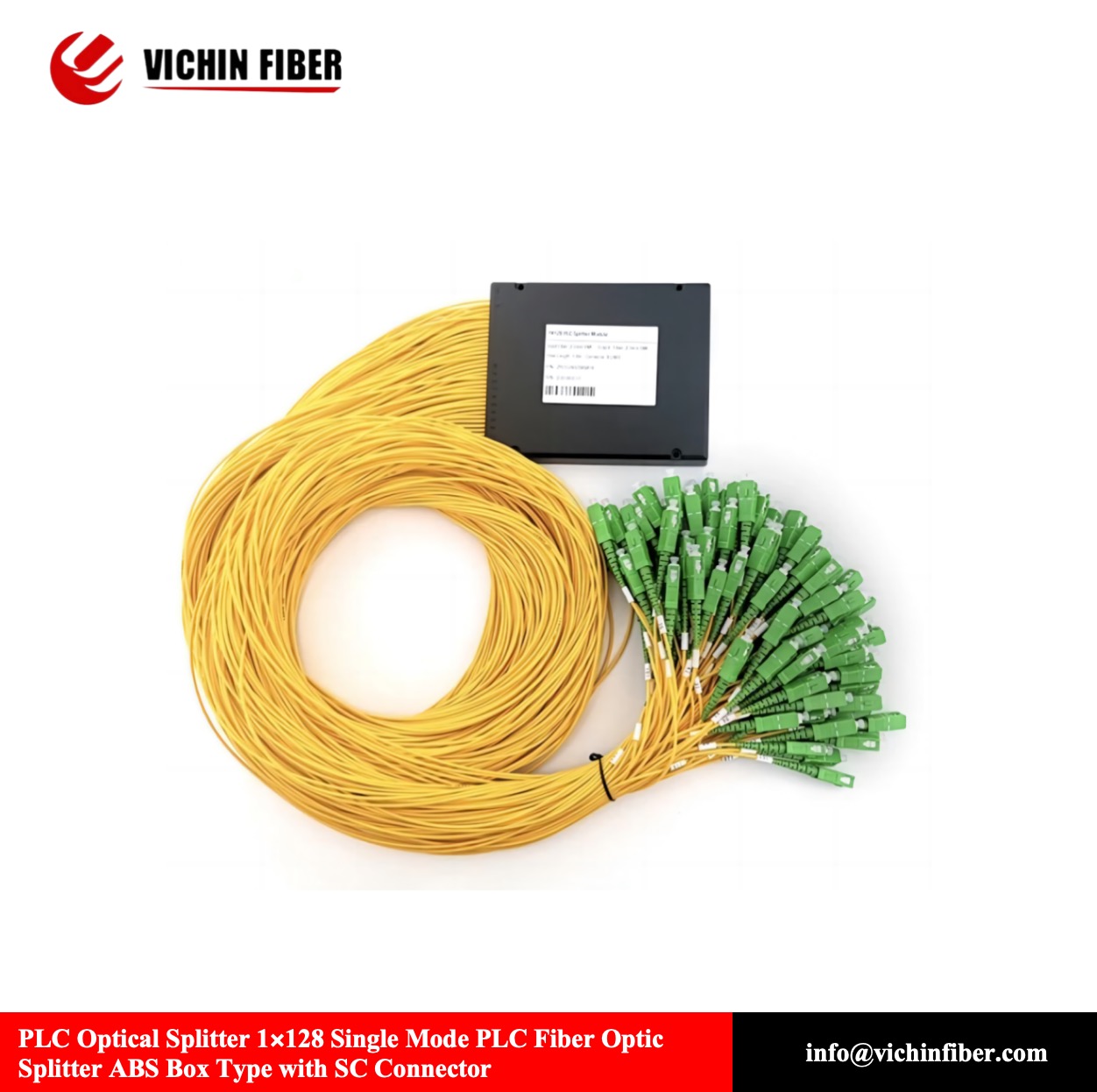

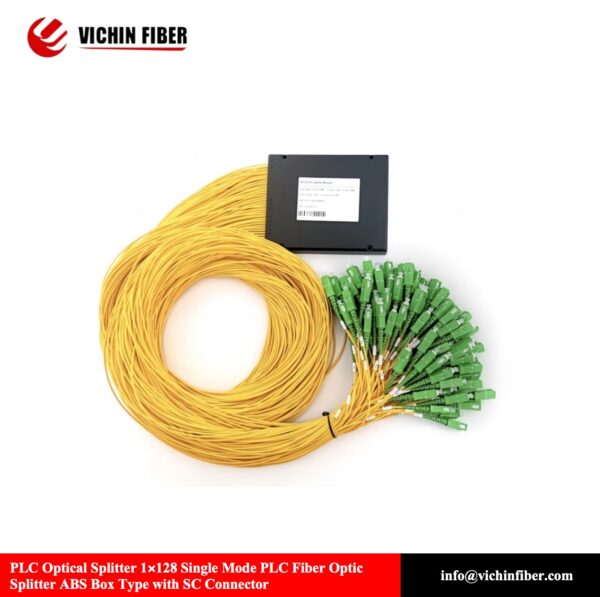

PLC Optical Splitter 1×128 Single Mode ABS Box Type splitter, with sc connector
Plastic Box Type PLC Splitter is an optical splitter used to divide optical signals into multiple outputs. Housed in a durable and cost-effective plastic box, it ensures low signal loss and high performance， and easy to install in both indoor and outdoor settings. With a wide operating wavelength range, it is ideal for applications like FTTH, telecom networks, and cable TV systems, offering a reliable solution for efficient signal distribution.
Description
Description：
PLC بصري مقسم 1RS 128 الوضع الفردي PLC الألياف البصرية مقسم ABS صندوق النوع مع SC موصل
Fiber optic splitter is also called optical splitter, is one of the most important passive devices in optical fiber link, is with multiple inputs and multiple output end of the optical fiber connected devices. The fiber optic splitter by the light splitting principle can be divided into the fused biconical taper and planar waveguide type (PLC type).
| Product Type | 1×128 PLC splitter | ||
| Opterating Wavelength | nm | 1260–1650 | |
| Insertion Loss | Typ. | dB | 16 |
| Max. | dB | 16.5 | |
| Uniformation(Max) | dB | 1.5 | |
| PDL(Max) | dB | 0.3 | |
| TDL(Max) | dB | 0.5 | |
| Return Loss | dB | ≥55 | |
| Directivity | dB | ≥50 | |
| Operating&Storage Temperature | ℃ | -40–+80 | |
