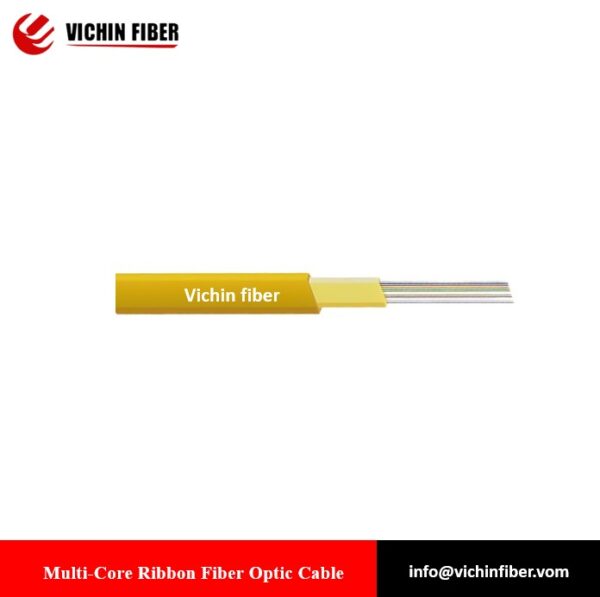

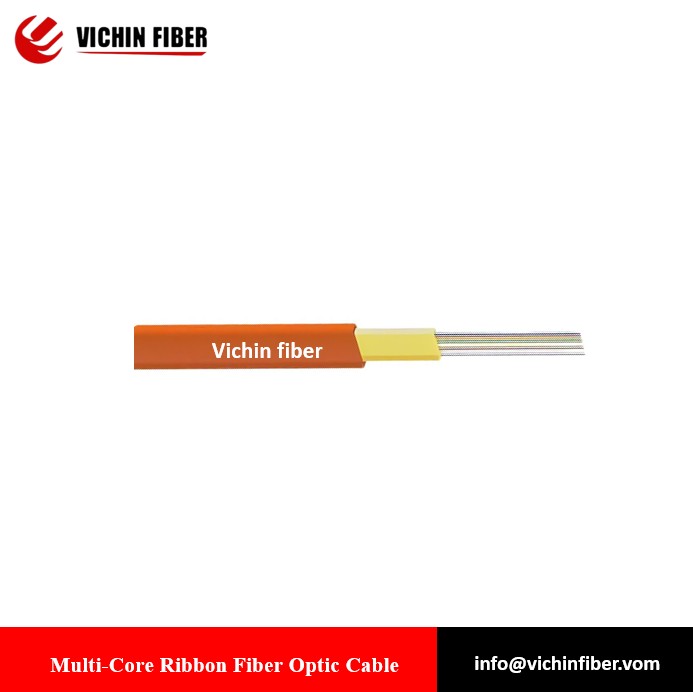

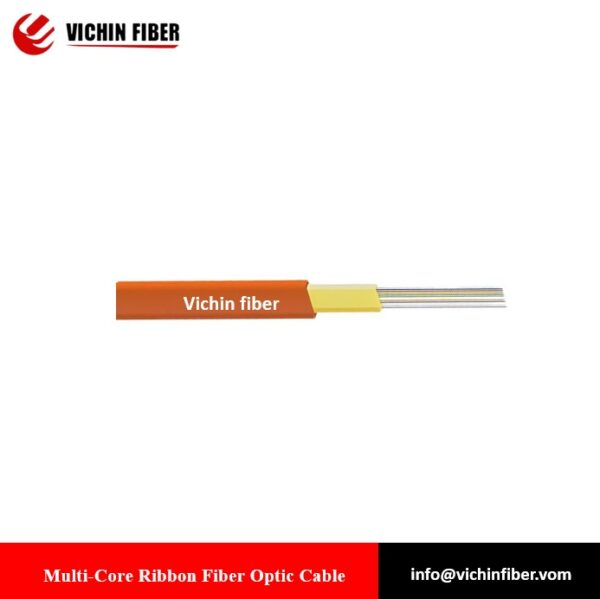

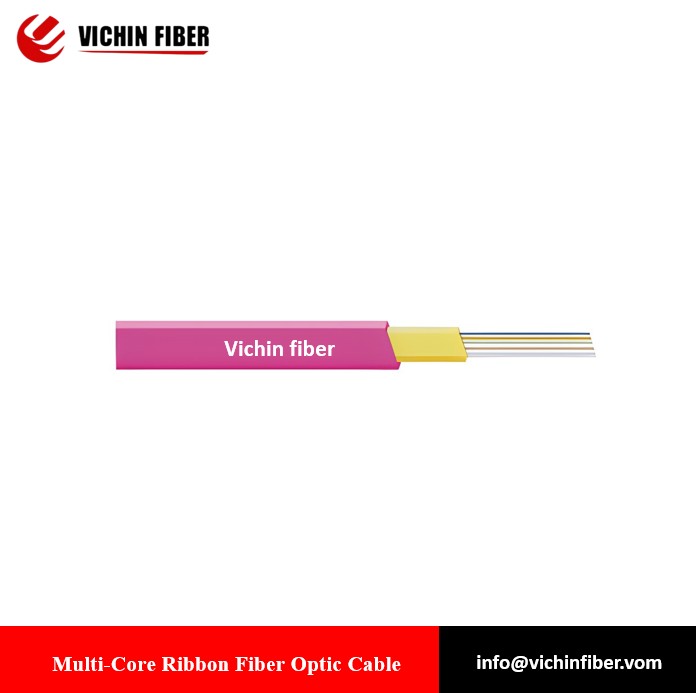

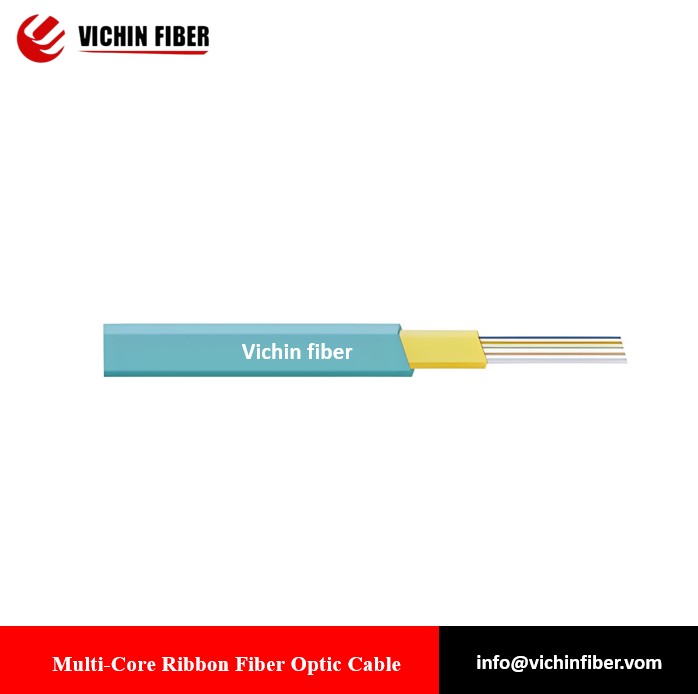

Multi-Core Ribbon Fiber Optic Cable（SM/OM1/OM2/OM3/OM4）
- Multi-core (e.g., 8,12 fibers) in a ribbonized format
- Supports up to 2000 MHz·km at 850nm
- Distance Support:
- 10Gbps up to 300m
- 40G/100G up to 100m (with MPO/MTP connectors)
- OFNR, LSZH (Low Smoke Zero Halogen) or OFNP jacket for durability and fire safety
Description
Kabel Serat Optik Pita Multi-Inti（SM/OM1/OM2/OM3/OM4）
Decription:

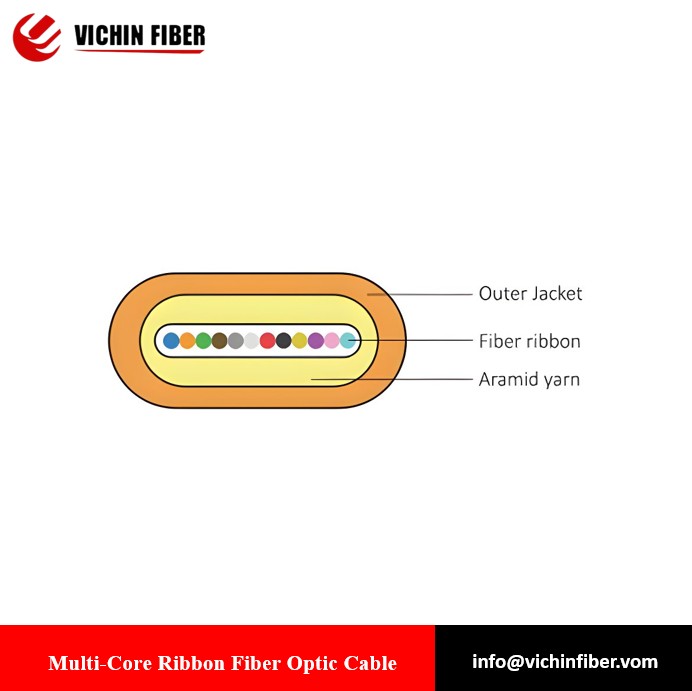

Multi-Core Ribbon Fiber Optic Cable is a high-density optical cable designed for efficient data transmission in environments requiring large bandwidth and space optimization. It consists of multiple optical fibers arranged in a flat ribbon structure, where fibers are aligned parallel and bonded together in a single strip. These ribbonized fibers are then stacked or bundled within the cable, allowing for easy mass fusion splicing and high fiber-count deployments.
This type of cable is commonly used in data centers, telecom networks, FTTH (Fiber-to-the Home) installations, and backbone infrastructure, where scalability and rapid installation are crucial.
Technical Parameters:
| Item | Parameter | ||||||
| 8 | 12 | ||||||
| Cable Diameter(mm) | 2.2*4.2 | 2.2*4.7 | |||||
| Tensile Strength(N) | Short-term | 220 | |||||
| Long-term | 100 | ||||||
| Crush Resistance(N/100mm) | Short-term | 500 | |||||
| Long-term | 250 | ||||||
| Minimum Bend Radius(mm) | Dynamic | 30H | |||||
| Static | 15H | ||||||
| Max Attenuation(dB/km) | G.652(1310nm/1550nm) | 0.4/0.3 | |||||
| G.657(1310nm/1550nm) | 0.4/0.3 | ||||||
| 62.5µm(850nm/1300nm) | 3.5/1.5 | ||||||
| 50µm(850nm/1300nm) | 3.5/1.5 | ||||||
| 50µm(850nm/953nm) | 3.0/2.4 | ||||||
| Typical Value(dB/km) | G.652(1310nm/1550nm) | 0.36/0.22 | |||||
| G.657(1310nm/1550nm) | 0.36/0.22 | ||||||
| 62.5µm(850nm/1300nm) | 3.0/1.0 | ||||||
| 50µm(850nm/1300nm) | 3.0/1.0 | ||||||
| 50µm(850nm/953nm) | 2.6/1.9 | ||||||
| Operation Temperature(°C) | -20~+70 | ||||||
Features：
• Contains multiple fibers (8 and 12 fiber) in a compact ribbon format, optimizing space in ducts and trays.
• Ribbon fibers allow simultaneous splicing of multiple fibers, reducing installation time and labor costs.
• Supports high-speed data transmission (10G, 40G, 100G, and beyond) with single-mode (OS2) or multimode (OM1/OM2/OM3/OM4) fibers.
• Available in OFNR, LSZH (Low Smoke Zero Halogen) or OFNP jacket
Application：
• Data center interconnects
• Telecom backbone networks
• FTTH deployments
• High-capacity enterprise networks
