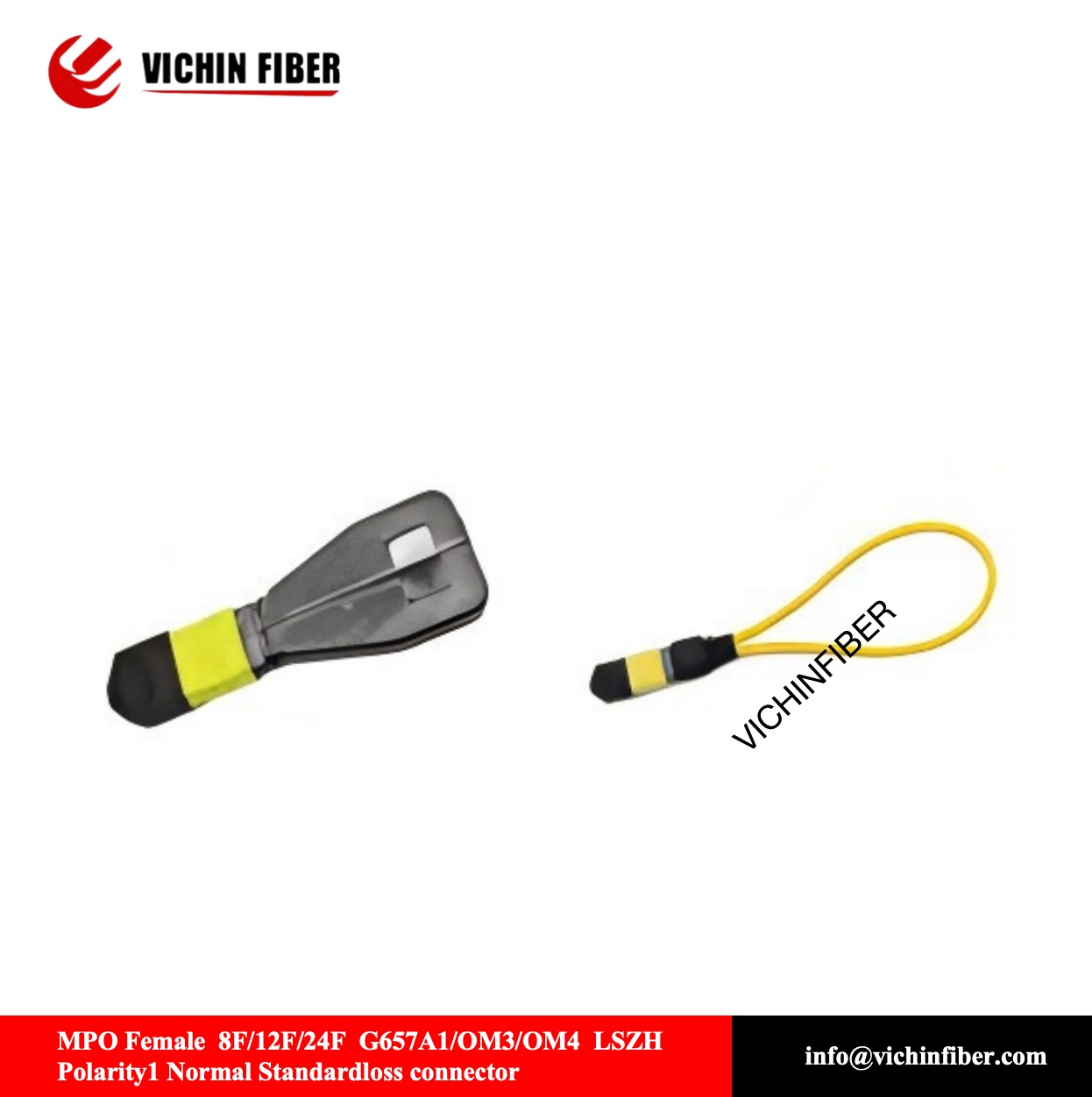

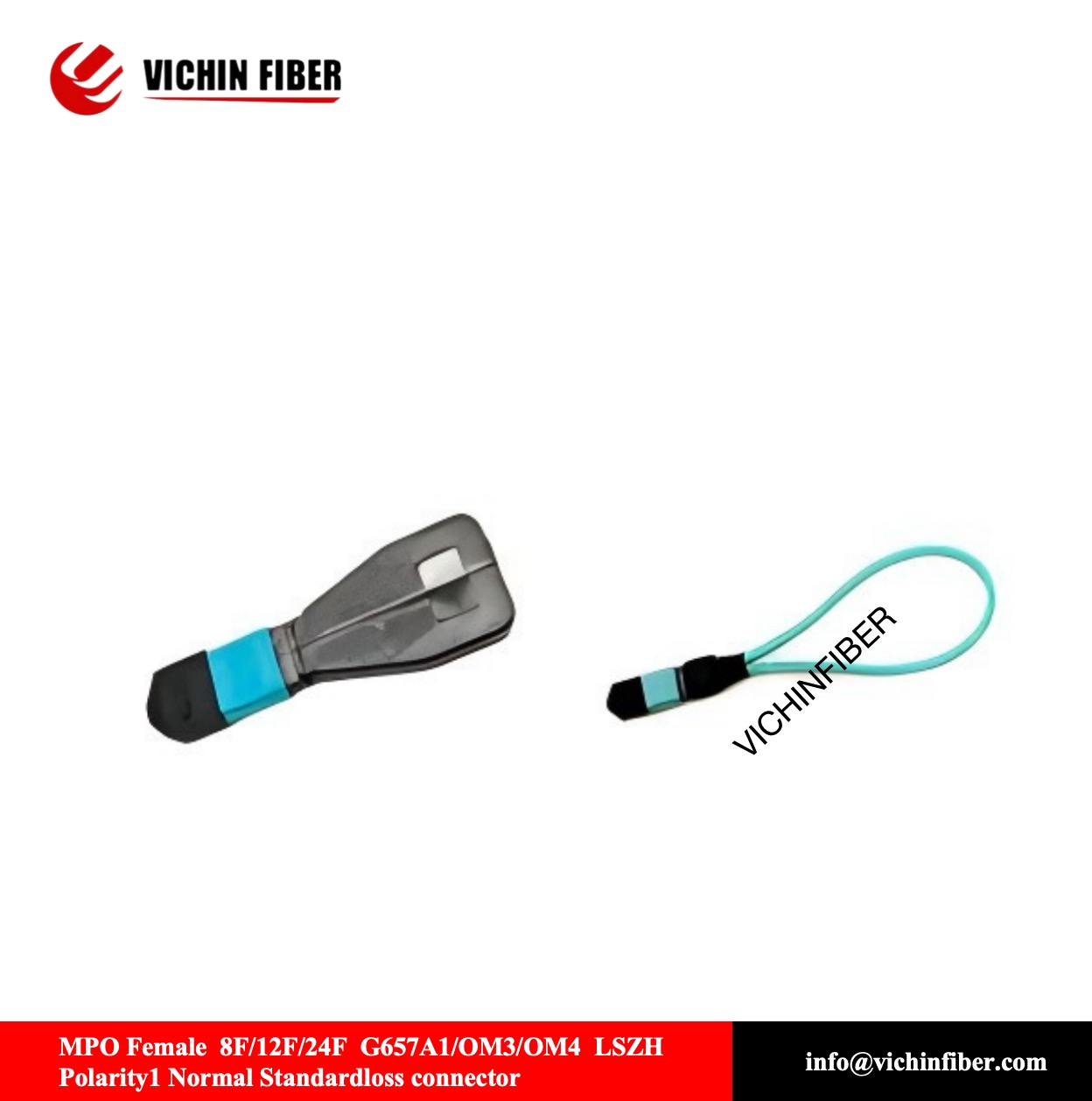

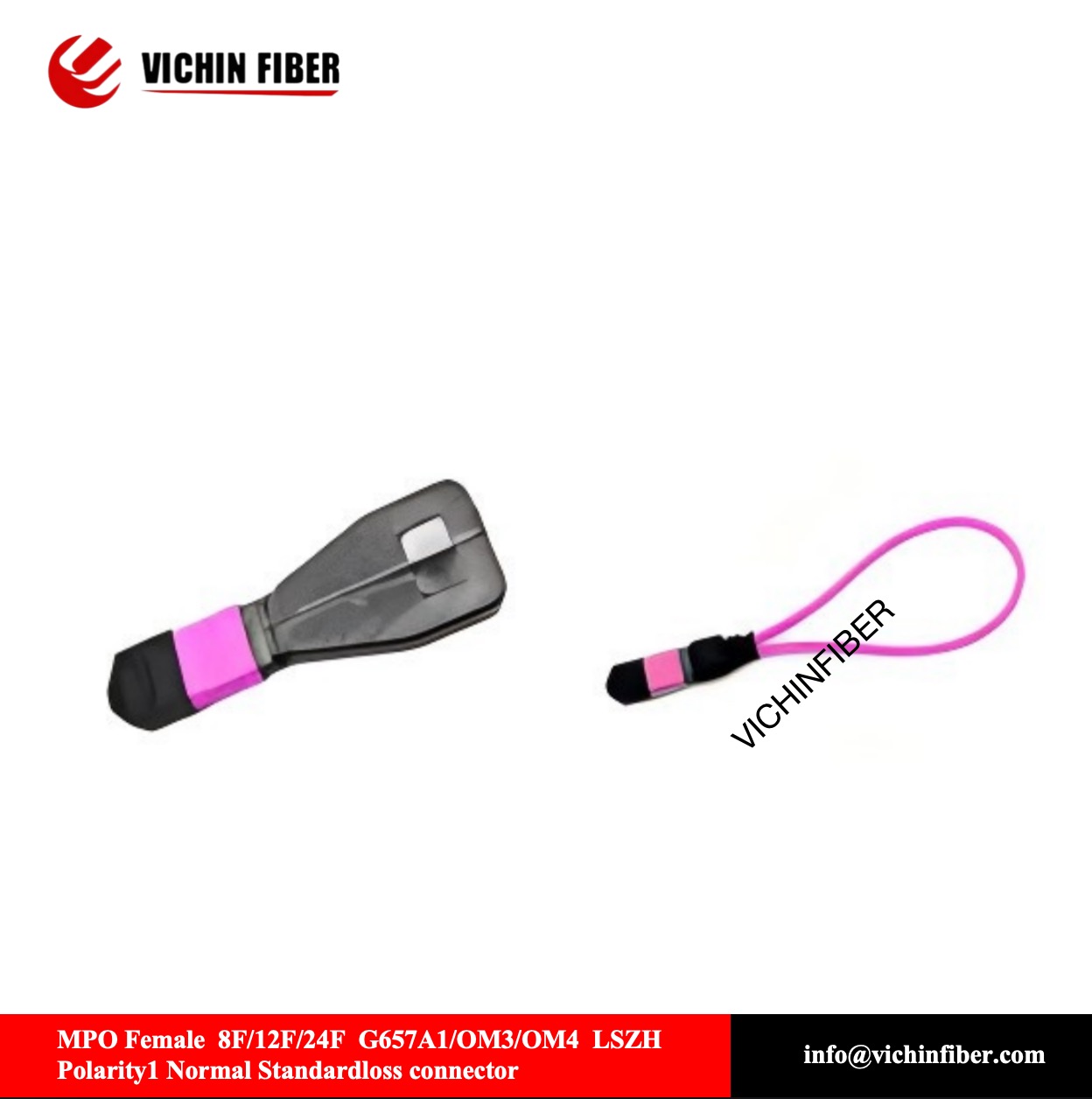

MPO /MTP Female 8F/12F/24F G657A1/OM3/OM4 LSZH X Polarity1 Normal Standardloss connector
Request a QuoteDescription
Product Description：
MPO/MTP Female 8F/12F/24F G657A1/OM3/OM4 LSZH X Polarity1 موصل المعيار العادي
MPO attenuator is used to reduce optocal-signal electric power in all channels of 40/100G Parallel Optic Transmission, and other equipment with using MPO interconnection. Technique of this product makes network’s composition more concise than those of conservative way which is the connection method of Attenuator independently in each channel, as downsizing the volume and saving time. This MPO Attenuator meets TIA/EIA 604-5, and IEC 61754-7 with compliance for RoHS.
Applications：
◆ Data Centre Infrastructure
◆ Storage Area Network-Fiber Channel
◆Emerging 40 & 100Gps Protocols
Specifications
MPO Connector
| Fiber Type | Singlemode(APC Polish) | Multi-mode(PC/Flat Polish) | ||
| Parameter | Standard | Low Loss | Standard | Low Loss |
| Insertion Loss Maximum | 〈0.70dB | 〈0.35dB | 〈0.70dB | 〈0.35dB |
| Return Loss | 〉60dB | None | ||
| Durability | 500 Matings | |||
| Operating Temerature | -40℃ to 80℃ | |||
| Test Wavelength | 1310nm | 850nm | ||
Gerenic Connector
| Fiber Type | Singlemode | Multi-mode | ||
| Parameter | UPC | APC | UPC | |
| Insertion Loss Maximum | 〈0.30dB | |||
| Return Loss | 〉55dB | 〉35dB | ||
| Durability | 1000 Matings | |||
| Operating Temerature | -40℃ to 80℃ | |||
| Test Wavelength | 1310nm | 850nm | ||
