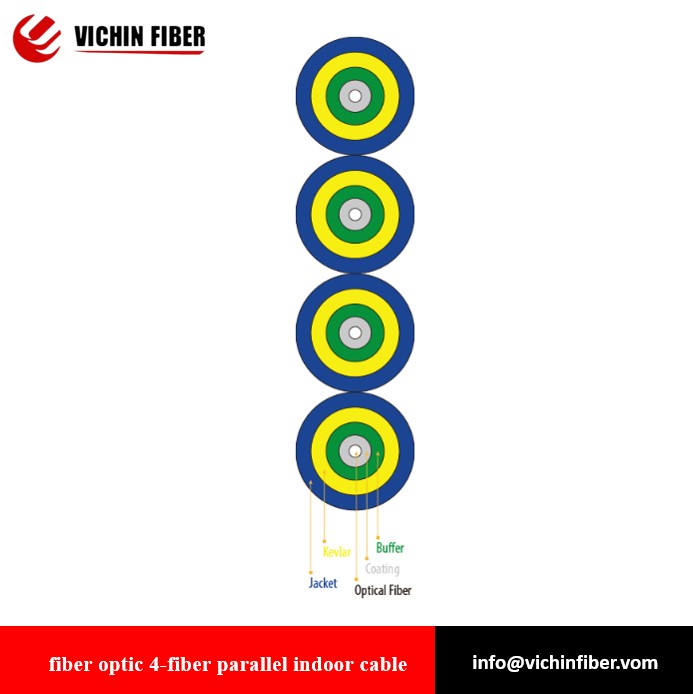

Fiber Optic 4-Fiber Parallel Indoor Cable
• Fiber Type: G.652, G.655, G.657 single-mode fiber,A1a or A1b mulit-mode fiber,or other types of fiber;
• Jacket Material: Polyvinylchloride(PVC), Low smoke zero halogen(LSZH), Thermoplatic polyurethane(TPU), or other contracted material;
• Jacket color: (including color of fiber)meets the requirements of relevant standards,or other contracted color;
Description
Kabel Dalam Ruangan Paralel 4-Serat Serat Optik
Fiber Optic 4-Fiber Parallel Indoor Cable
Features
• Good mechanical and environmental characteristics;
• The mechanical characteristics meet the requirements of relevant standards;
• Soft, flexible, easy to splice, and with big capacity data transmission;
• Meet various requirements of market and clients.
Application
• Used in indoor cabling
• Used as access building cable
• Used as pigtails and patch cords
• Used as interconnect lines of equipments,and used in optical connections in optical communication rooms and optical distribution frames;
Specifications
| Fiber Cable Count | Dimensio n(mm) |
Cable Weight (kg/km) |
Tensile(N) | Crush(N/100mm) | Min.bend Radiu s(mm) |
Range of Long Temperature(°C) |
|||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 4-Fiber Parallel Indoor Cable | |||||||||
| 4 | 3.2 | 8.5 | 80 | 180 | 200 | 1000 | 20D | 10D | -20°C ~ +60°C |
Options
• Cable Dimension: The nominal cable dimension or other contracted dimension
• Delivery Length: 1KM or 2KM or other contracted length.
• Other Requirements: Other contracted special requests.
