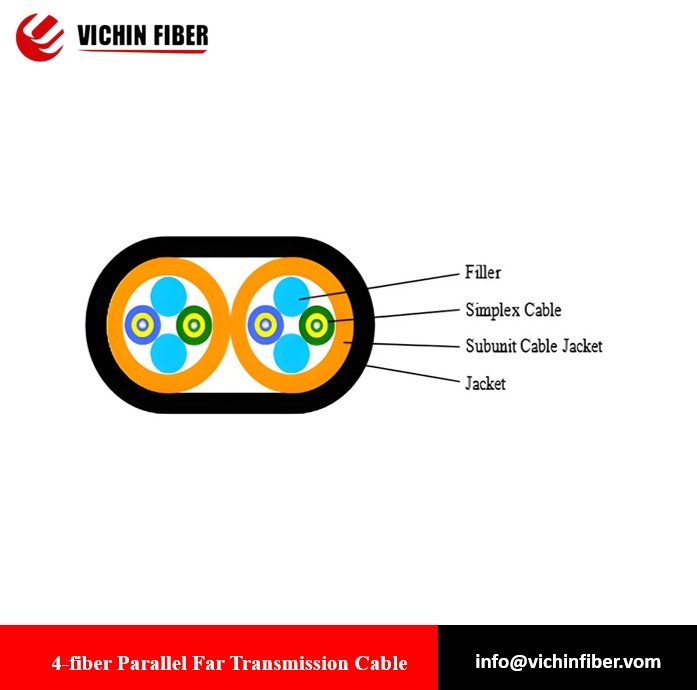

4-fiber Parallel Far Transmission Cable
• Fiber type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode cable, or other types of fiber;
• Jacket material: environmental flame retardant polyvinylchloride(PVC), environmental low smoke zero halogen flame retardant polyolefin(LSZH), environmental halogen flame retardant polyolefin(ZRPO), environmental thermoplastic polyurethane(TPU), or other contracted material;
• Jacket color: (including color of fiber) meets the requirement of relevant standard, or other contracted color;
• Cable dimension: the nominal cable dimension, or other contracted dimension;
Description
Kabel Transmisi Jauh Paralel 4-serat
Applications:
• Used as access building cable
• Used as interconnect lines of equipments, and used in optical connections in optical communication rooms and optical distribution frames
• Indoor cabling
• Suitable for patch cord and pigtails, indoor distribution
• Distribution system cable
• Used in wireless base station(BS) horizontal and vertical cabling
Features:
• Flame retardant characteristics meet the requirements of relevant standards
• Excellent temperature performance
• Soft and easy to strip
• High strength Kevlar yarn member
• Small bending radius
• Meet various requirements of market and clients
Specifications
| Fiber Count | Cable Dimension(mm) | Cable Weight(kg/km) | Tensile(N) | Crush(N/100mm) | Min Bend. Radius(mm) | Range of Temperature(℃) | |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 4 | 16.0X9.0 | 102.0 | 300 | 600 | 1100 | 2200 | 20H | 10H | -20-+60 |
| Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable deimension and weight are subject to the simlex cable of 2.0mm outer diameter; 3. H is height of the flat cable; 4. The minimum bend radius(static) is 5H when G.657 fiber is used. |
|||||||||
