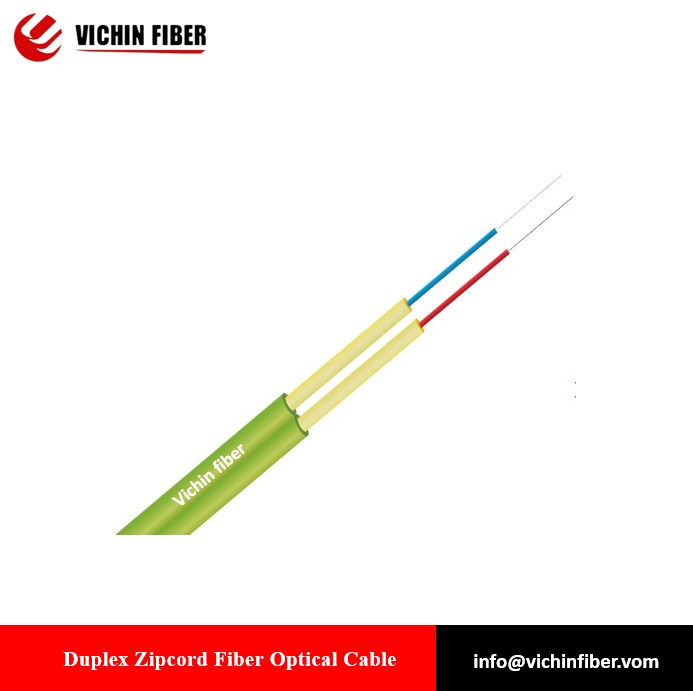

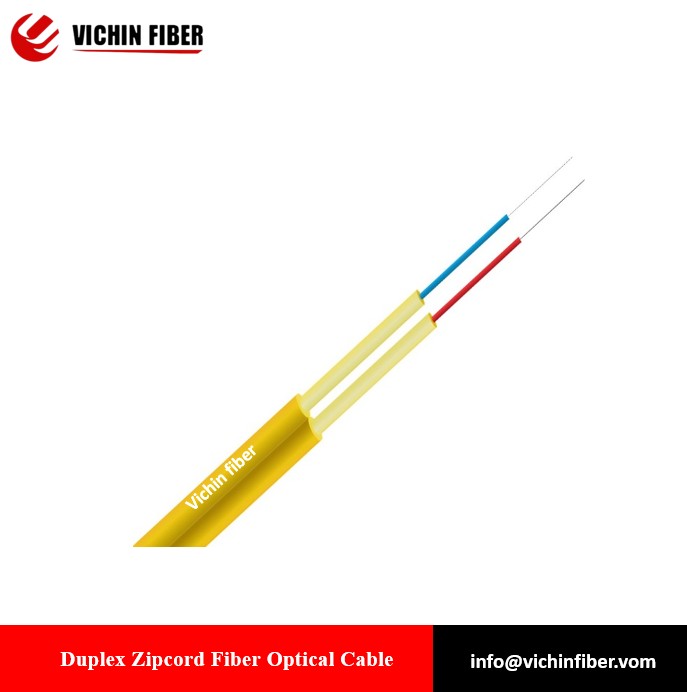

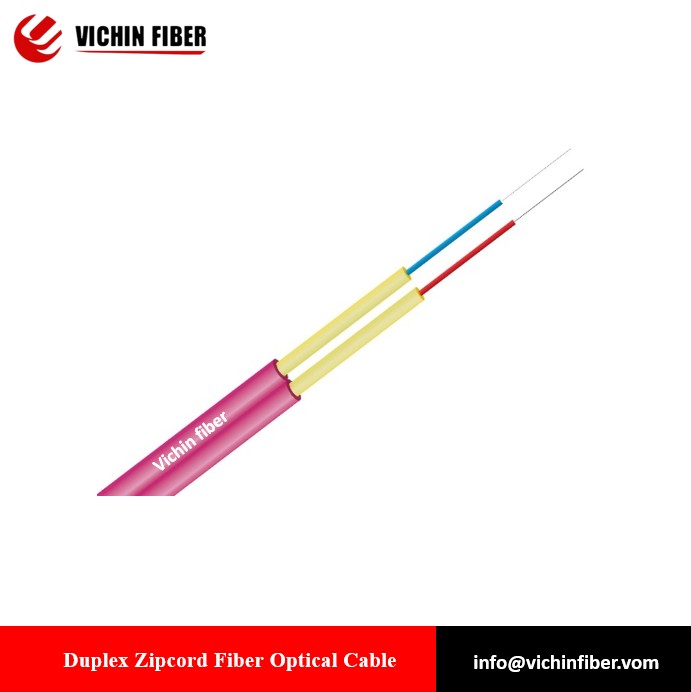

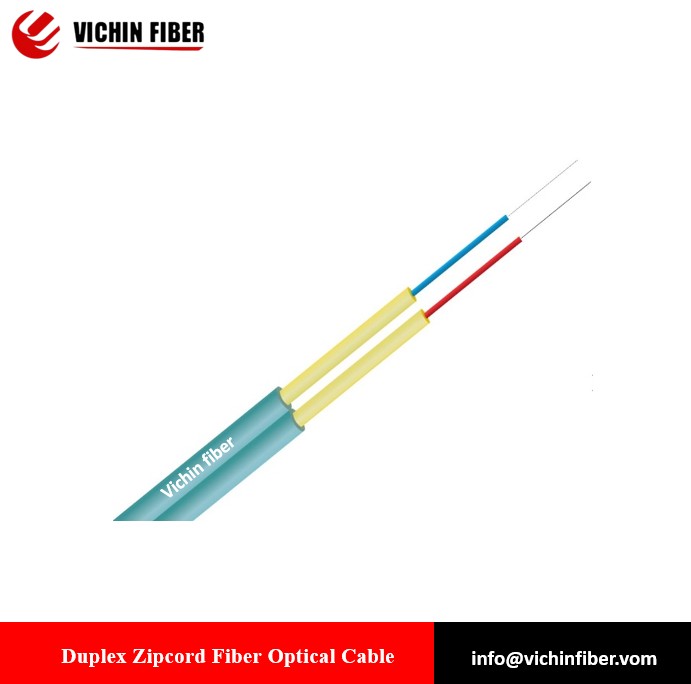

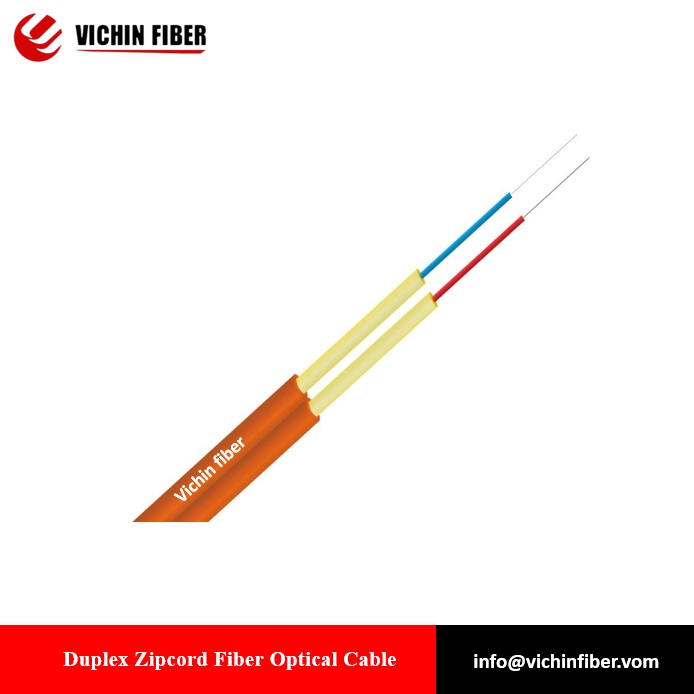

Duplex Zipcord Fiber Optical Cable（OS1/OS2/OM1/OM2/OM3/OM4/OM5）
Fiber Type： G652、G655、 G657、A1a（50/125um）、A1b（62.5/125um） Or other types of fiber；
Jacket Material： PVC、LSZH、TPU Or other types of Material;
Description
Kabel Serat Optik Zipcord Dupleks（OS1/OS2/OM1/OM2/OM3/OM4/OM5）
Decription:

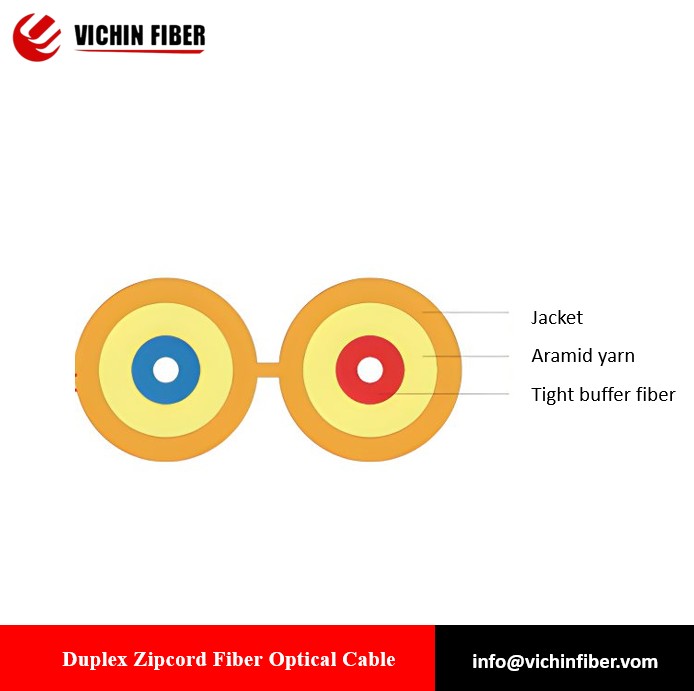

Duplex Zip-Cord Cable use Ø900 μ m or Ø600 μ m flame-retardant tight buffer fibree as optical communication medium,the tight buffer fibre wrapped with a layer of aramid yarn as strength member units,and the cable is completed with a figure 8 PVC or LSZH(Low smoke,Zero halogen,Flame-retardant) jacket.
Technical Parameters:
| Tight buffer Diameter | Out Sheath Diameter |
Weight | Minimum Allowable Tensile Strength (N) |
Minimum Allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage Temperature |
|||
| （MM) | （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） |
| 0.6 | 1.6×3.4 | 6 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 0.6 | 1.8×3.8 | 7 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 0.9 | 2.0×4.2 | 9 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 0.9 | 2.4×5.0 | 11 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 0.9 | 2.8×5.8 | 13 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 0.9 | 3.0×6.2 | 15 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
Features：
• Tight buffer fibre ease of stripping
• Tight buffer fibre have excellent flame-retardant performance
• Aramid yarn as strength member make cable have excellent tensible strength
• The jacket anti-corrosion,anti-water,anti-ultraviolet radiation, flame-retardant and harmless to environment etc
• Figure 8 structure jacket facilitate embranchment.
• All dielectric structure protect it form electromagnetic influence
Application：
• Duplex Optical fibre jumper or pigtail
• Indoor riser level and plenum level cable distribution
• Interconnect between instruments,communication equipments
