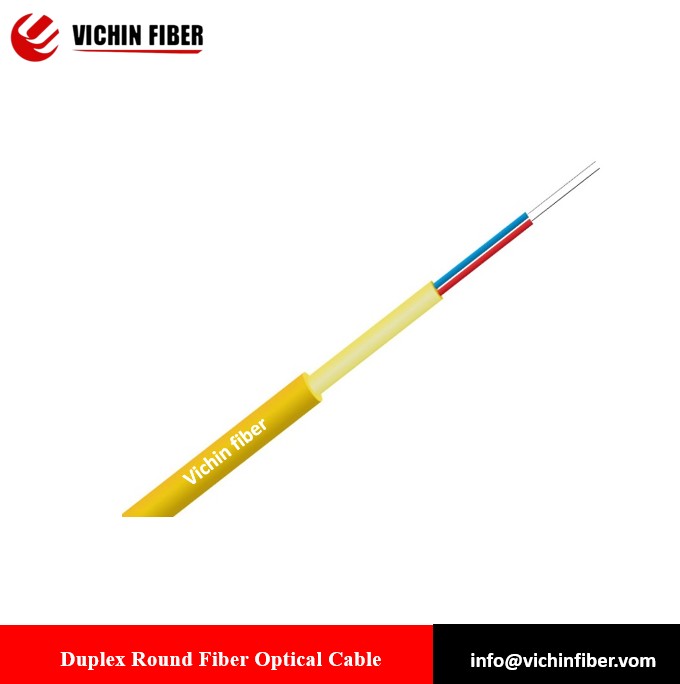

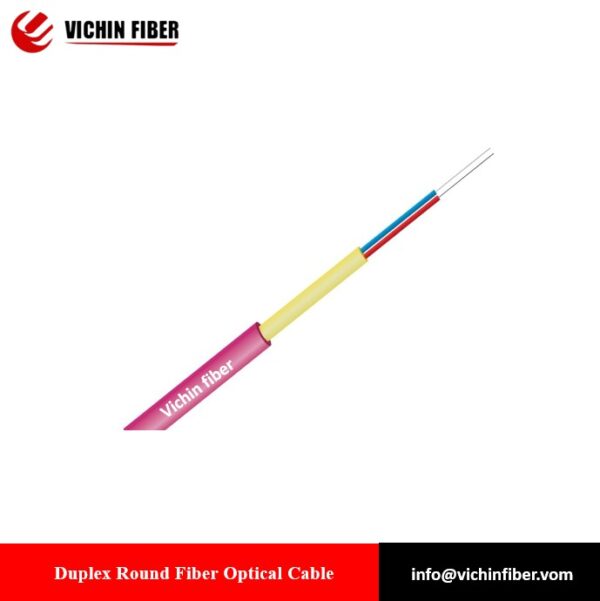

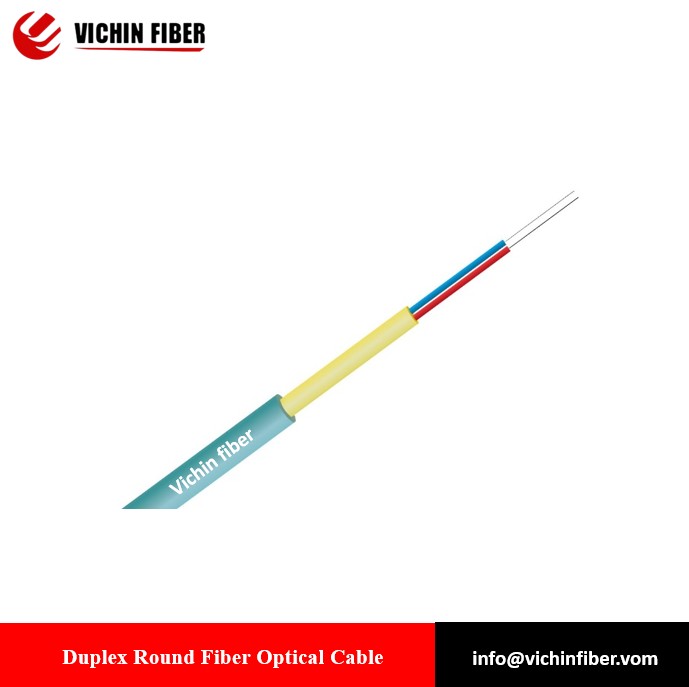

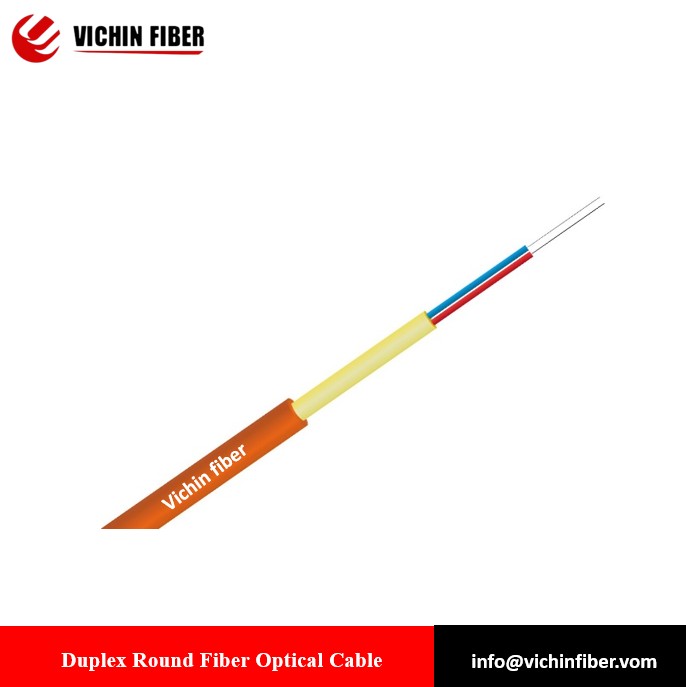

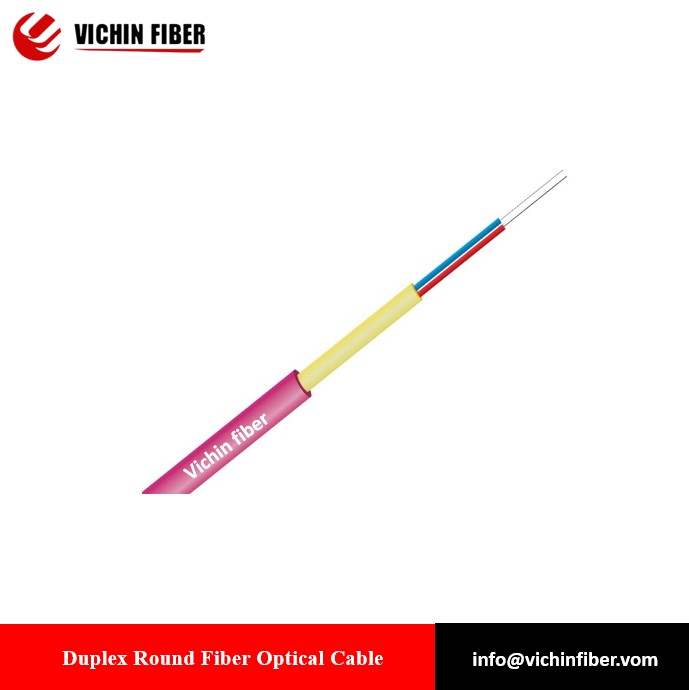

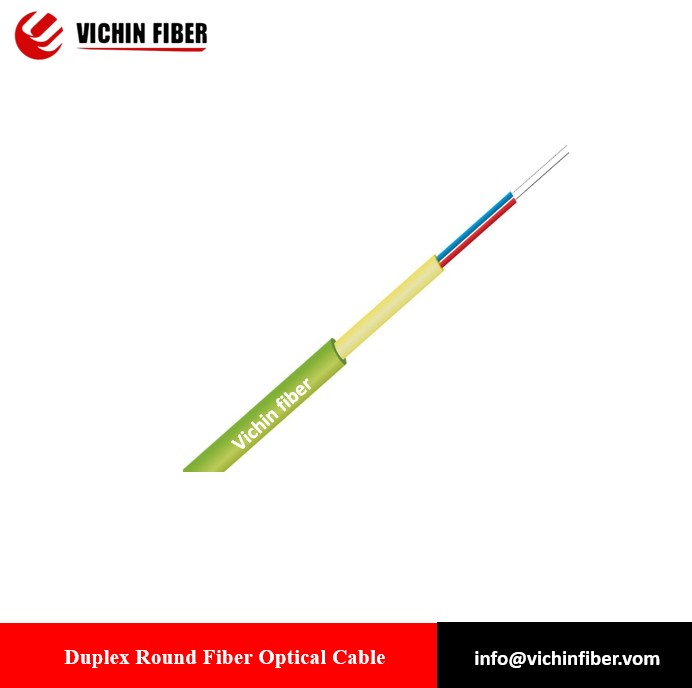

Duplex Round Fiber Optical Cable（OS1/OS2/OM1/OM2/OM3/OM4/OM5）
· Fiber Type: G.652, G.655,G.657 single-mode fiber, A1a or A1b mulit-mode fiber, or other types of fiber;
· Jacket Material: Polyvinylchloride(PVC), Low smoke zero halogen(LSZH), Thermoplatic polyurethane(TPU), or other contracted material;
Description
Kabel Serat Optik Bulat Dupleks（OS1/OS2/OM1/OM2/OM3/OM4/OM5）
Decription:

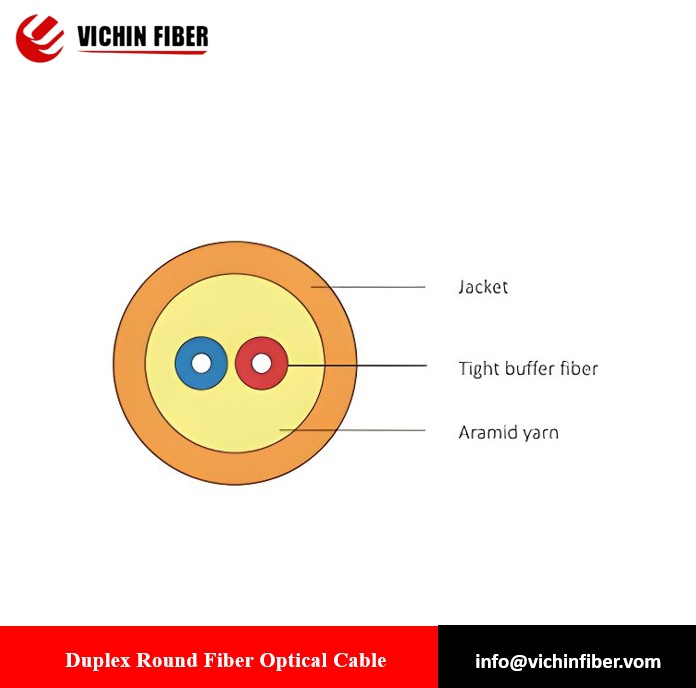

Duplex Round Fiber Cable refers to a dual-fiber optical cable with a circular cross-section, where two optical fibers (typically tight-buffered) are bundled together within a single, round outer jacket. Duplex RoundFiber Cable, available in OS1/OS2 (single-mode) and OM1/OM2/OM3/OM4/OM5 (multimode) types. With outer jacket options in PVC or LSZH. It is commonly used for bidirectional communication (Tx/Rx) in networking and telecommunications.
Technical Parameters:
| Fiber
Count |
Dimension
(MM) |
Weight
(kg/km) |
Tensile (N)
LongTerm/Short Term |
Crush(N/100mm)
LongTerm/Short Term |
Min.Bend Radius(mm)
Dynamic / Static |
Temperature (°C) | |||
| 2 | 3.2 | 8.5 | 80 | 150 | 200 | 1000 | 20D | 10D | -20～+70 |
| 2 | 3.8 | 11.5 | 100 | 200 | 200 | 1000 | 20D | 10D | -20～+70 |
| 2 | 4.5 | 15.2 | 150 | 300 | 200 | 1000 | 20D | 10D | -20～+70 |
| 2 | 5.0 | 17.5 | 200 | 400 | 200 | 1000 | 20D | 10D | -20～+70 |
| Note:
1. All the values in the table, which are for reference only, are subject to change without notice; 2.Dis outer diameter of the round cable; 3.The minimum bend radius (static) is 5D when G.657 fiber is used. |
|||||||||
Features：
· Good mechanical and environmental characteristics;
· Flame retardant characteristics meet the requirements of relevant standards;
· The mechanical characteristics meet the requirements of relevant standards;
· Soft,flexible,easy to splice,and with big capacity data transmission;
· Meet various requirements of market and clients
Application：
· Used in indoor cabling, especially in poor laying conditions;
· Used in optical connections in optical communication equipment rooms and optical distribution frames;
· Used as pigtails and patch cords
