Duplex Round Far Transimission FTTA Base Station Optical Cable
• Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi –mode cable, or other types of fiber;
• Jacket Material: Environmental low smoke zero halogen flame retardant polyolefin (LSZH), environmental halogen flame retardant polyolefin (ZRPO), environmental thermoplastic polyurethane (TPU), or other contracted material;
Description
Applications:
* Mainly used in wireless base station (BS) horizaontal and vertical cabling.
Features:
* Good mechanical and environmental characteristics;
* Flame retardant characteristics meet the requirements of relevant standards;
* The mechanical characteristics of jacket meet the requirements of relevant standards;
* Soft,flexible, easy to lay and splice, and with big capacity data transmission;
* Meet various requirements of market and clients.
Specifications
| Fiber Cable
Count |
Dimension
(mm) |
Cable Weight
(kg/km) |
Tensile(N)
Long Term Short Term |
Crush(N/100mm)
Long Term Short Term |
Min.bend Radius(mm)
Dynamic Static |
Range of LongTemperature(°C) | |||

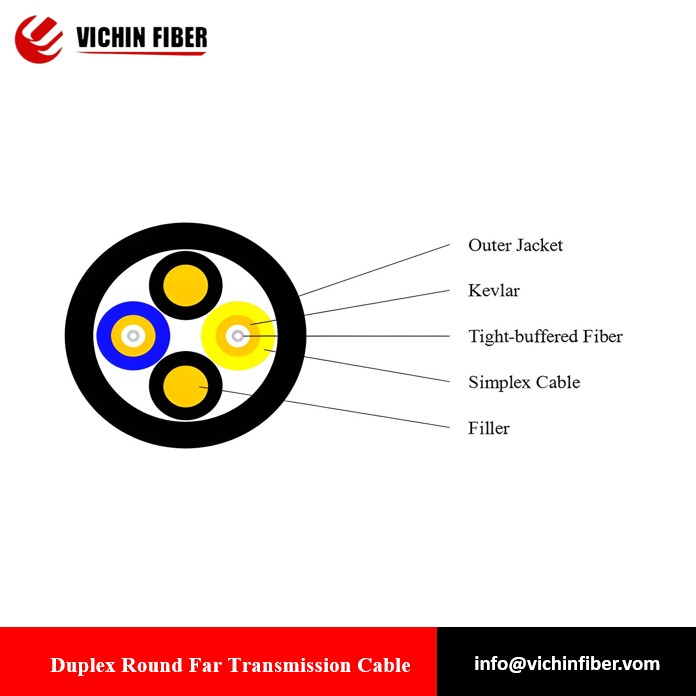

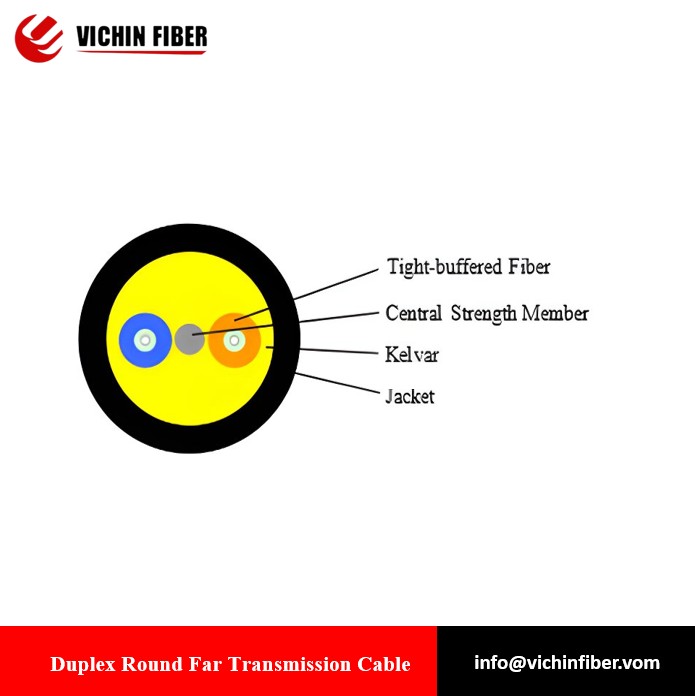

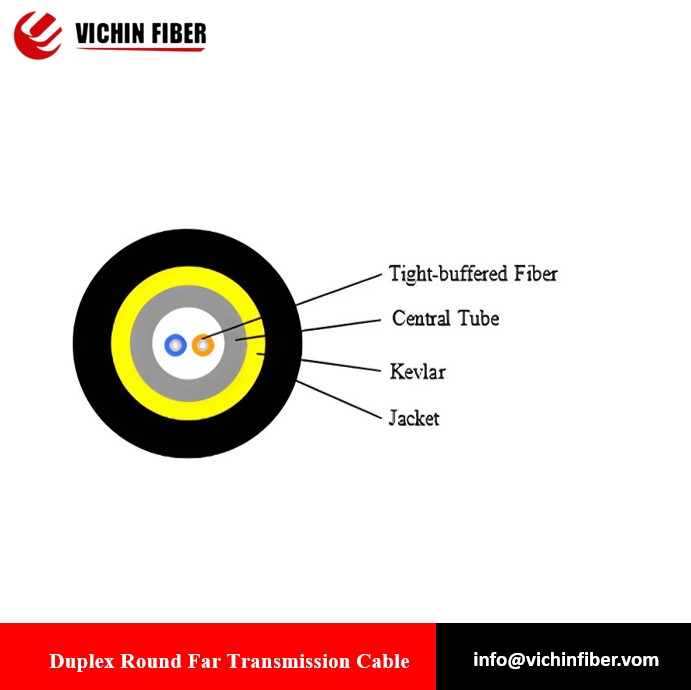

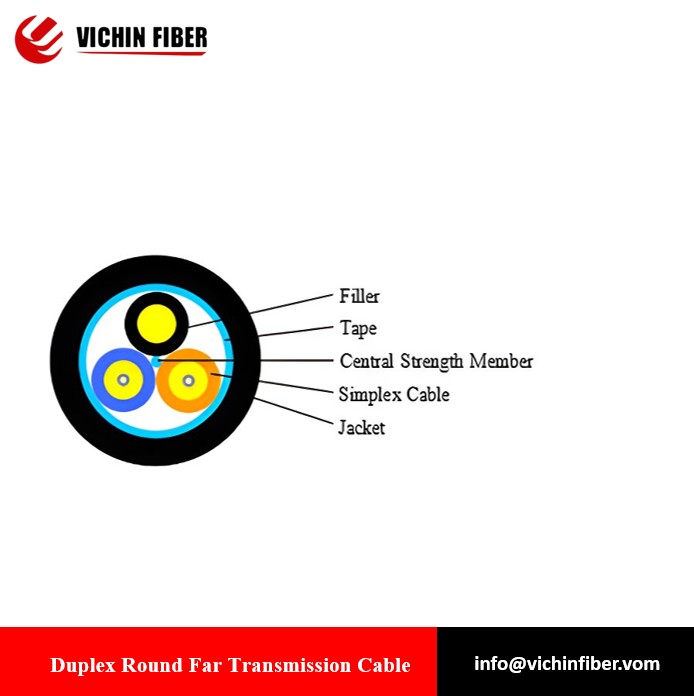

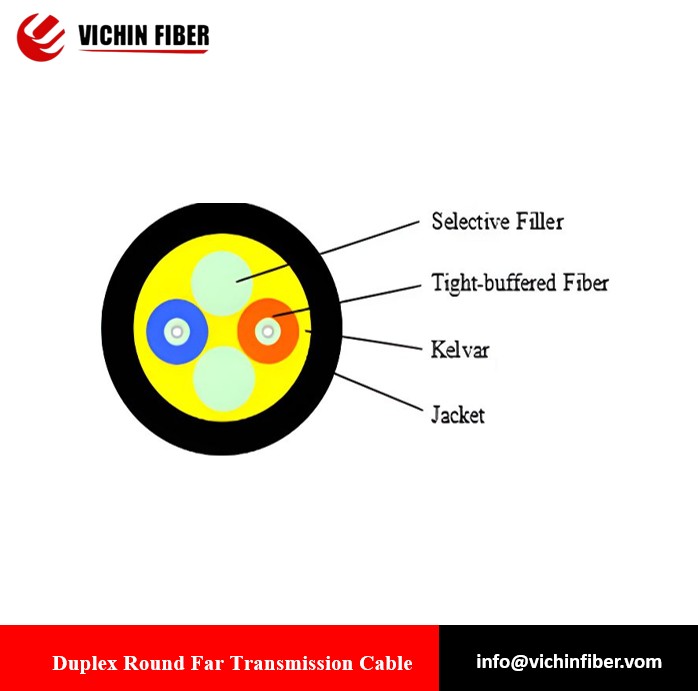

| Duplex Round Far Transmission Cable I | |||||||||
| 2 | 7 | 42.3 | 200 | 400 | 500 | 1000 | 20D | 10D | 20°C ~ +60°C |
| 2 | 7.2 | 42 | 200 | 400 | 500 | 1000 | 20D | 10D | 20°C ~ +60°C |
| 2 | 7 | 45 | 200 | 400 | 500 | 1000 | 20D | 10D | 20°C ~ +60°C |
| 2 | 5.5 | 28 | 200 | 400 | 500 | 1000 | 20D | 10D | 20°C ~ +60°C |
| 2 | 5 | 22 | 200 | 400 | 500 | 1000 | 20D | 10D | 20°C ~ +60°C |
