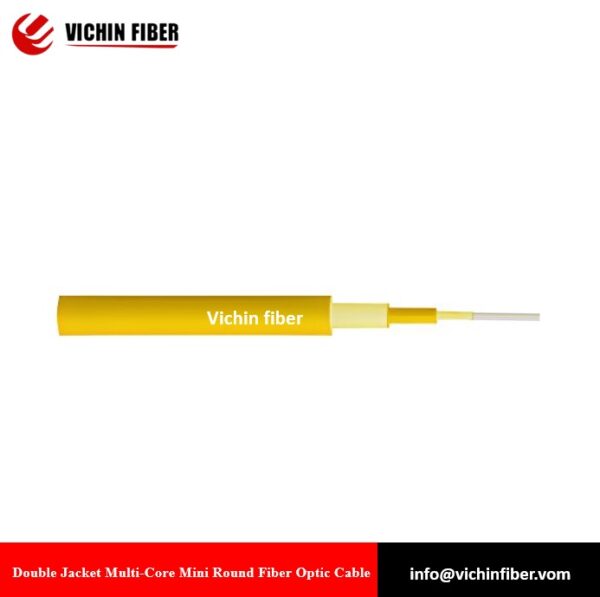

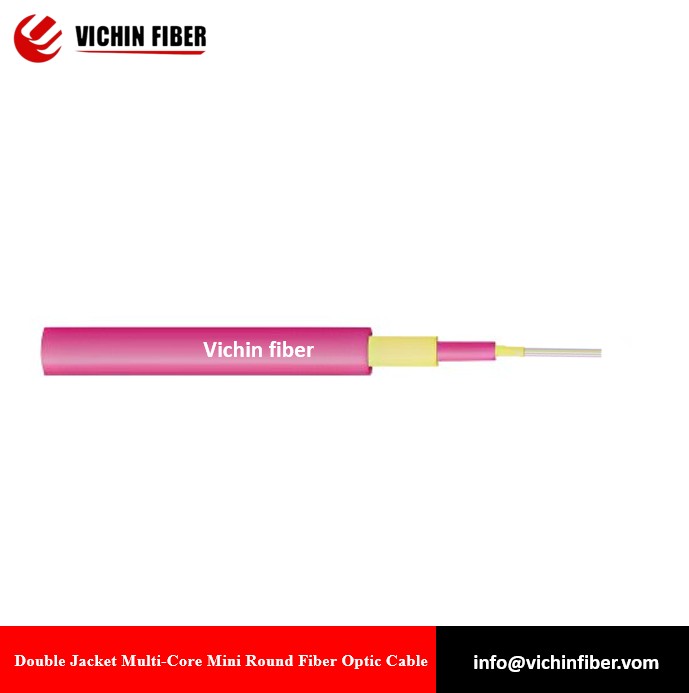

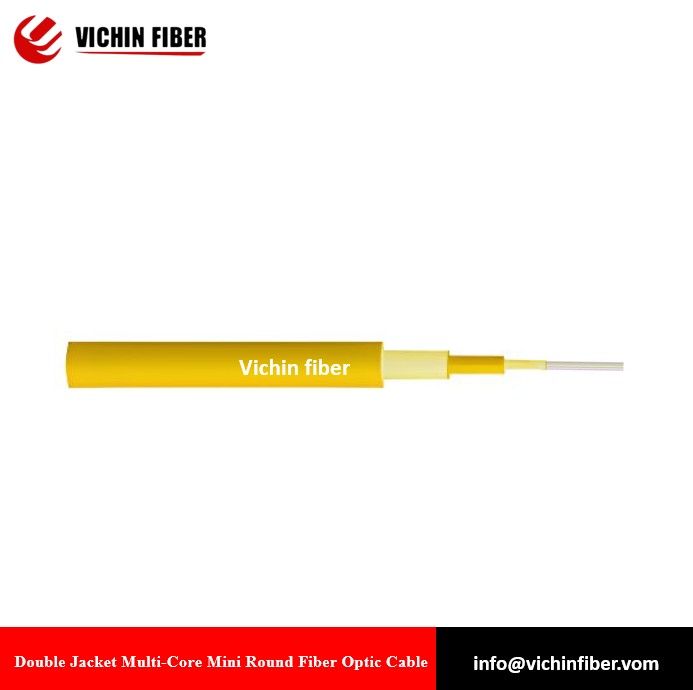

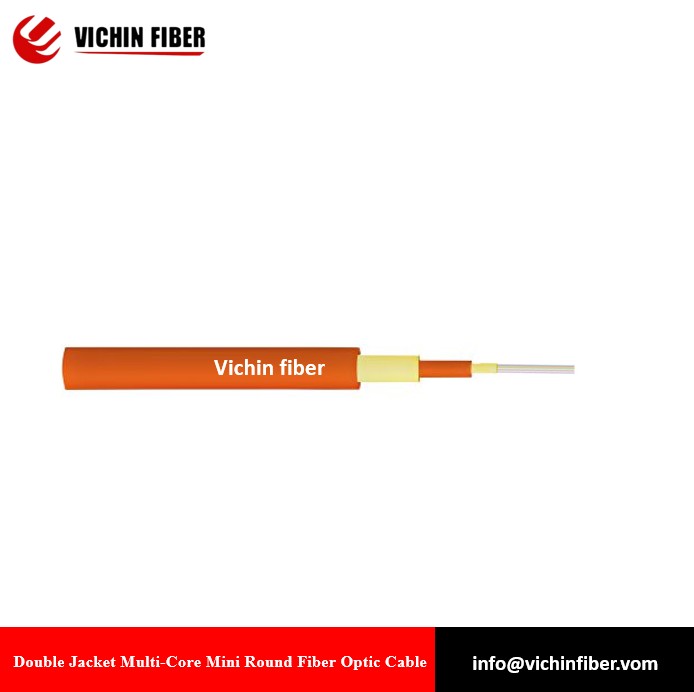

Double Jacket Multi-Core Mini Round Fiber Optic Cable（SM/OM1/OM2/OM3/OM4/OM5）
- Supports 10G/40G/100G/400G Ethernet and InfiniBand for future-proof networking.
- Mini-round design maximizes fiber density without sacrificing performance.
- Compatible with LC/SC/MPO/MTP connectors for quick, hassle-free deployments.
Description
Kabel Serat Optik Bulat Mini Multi-Inti Berselubung Ganda（SM/OM1/OM2/OM3/OM4/OM5）
Decription:

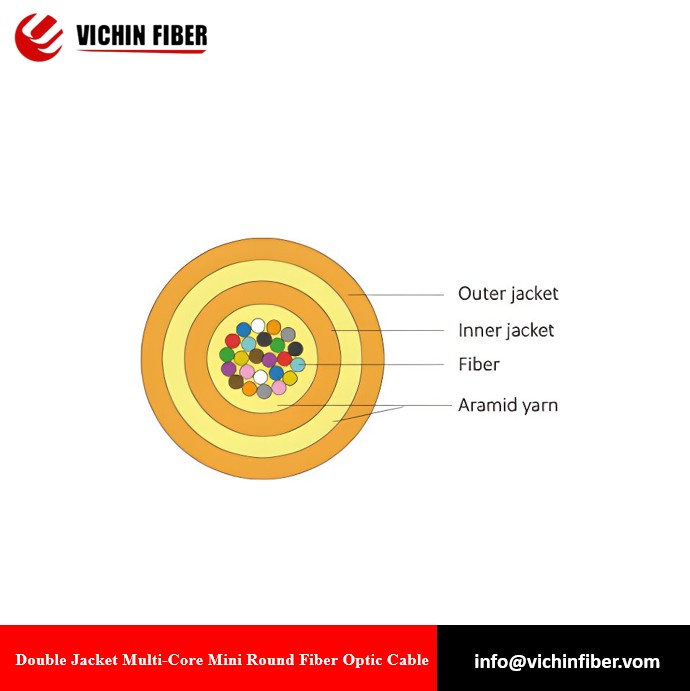

Double Jacket Multi-Core Mini Round Cable is available in OS1/OS2 (single-mode) and OM1/OM2/OM3/OM4/OM5 (multimode) types, featuring a robust dual-layer protective structure for enhanced
durability and environmental resistance. With outer jacket options in OFNR (PVC) or LSZH, this cable ensures reliable performance in harsh conditions while enabling efficient fiber deployment in micro-ducts, high-density data centers, and compact network environments
Technical Parameters:
| Item | Parameter | ||||||
| Fiber Core | 2 | 4 | 6 | 8 | 12 | 24 | |
| Cable Diameter(mm) | 4.5-5.5 | 6.0 | |||||
| Tensile Strength(N) | Short-term | 660 | |||||
| Long-term | 330 | ||||||
| Crush Resistance(N/100mm) | Short-term | 1000 | |||||
| Long-term | 500 | ||||||
| Minimum Bend Radius(mm) | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Max Attenuation(dB/km) | G.652(1310nm/1550nm) | 0.4/0.3 | |||||
| G.657(1310nm/1550nm) | 0.4/0.3 | ||||||
| 62.5µm(850nm/1300nm) | 3.5/1.5 | ||||||
| 50µm(850nm/1300nm) | 3.5/1.5 | ||||||
| 50µm(850nm/953nm) | 3.0/2.4 | ||||||
| Typical Value(dB/km) | G.652(1310nm/1550nm) | 0.36/0.22 | |||||
| G.657(1310nm/1550nm) | 0.36/0.22 | ||||||
| 62.5µm(850nm/1300nm) | 3.0/1.0 | ||||||
| 50µm(850nm/1300nm) | 3.0/1.0 | ||||||
| 50µm(850nm/953nm) | 2.6/1.9 | ||||||
| Operation Temperature(°C) | -20~+70 | ||||||
Features：
• Double Jacket Protection
• Aramid yarn reinforcement for tensile strength (≥100N).
• Supports 2, 4, 6, 8, 12, 24 fibers in a single micro cable.
• Optimized for both short-reach (FTTH, data centers) and long-haul (telecom, backbone)
deployments.
• Smooth LSZH/PVC coating for easy micro-duct installation.
Application：
• Data Center Solutions
• FTTx Deployments
• Mobile Networks
• Industrial Environment
• Enterprise Networks
