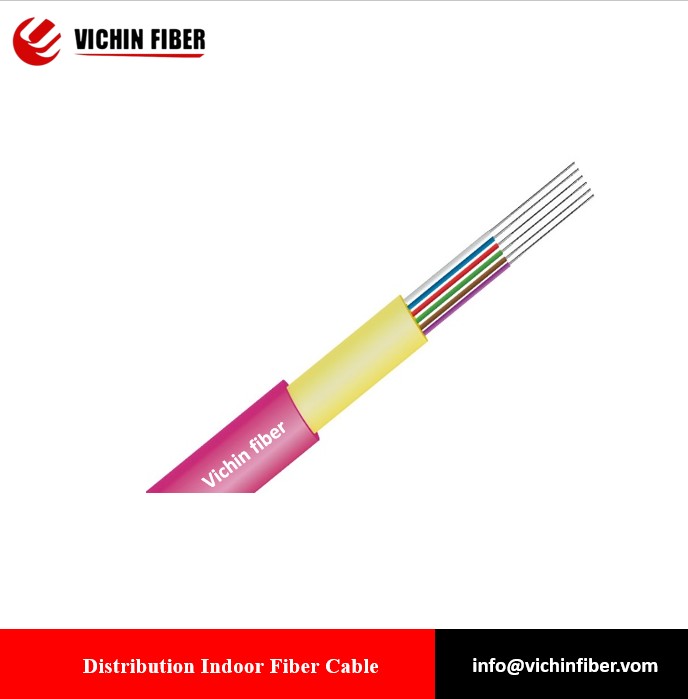

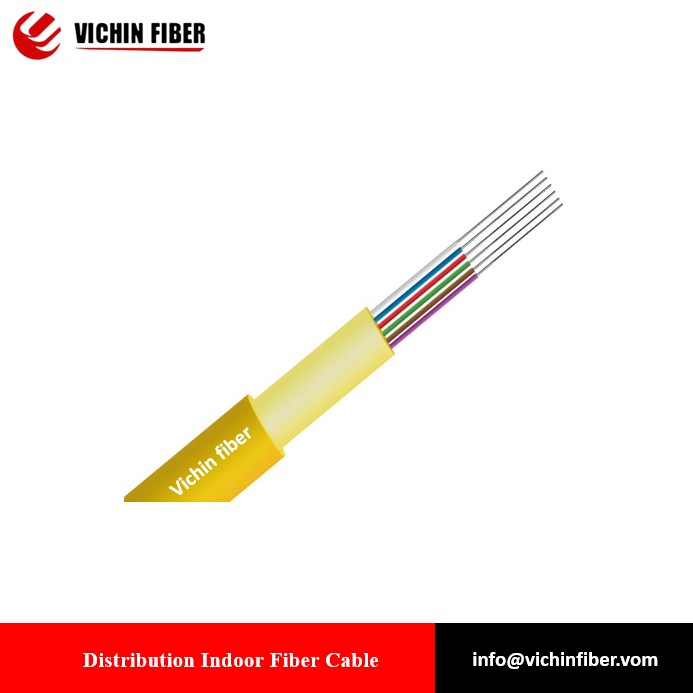

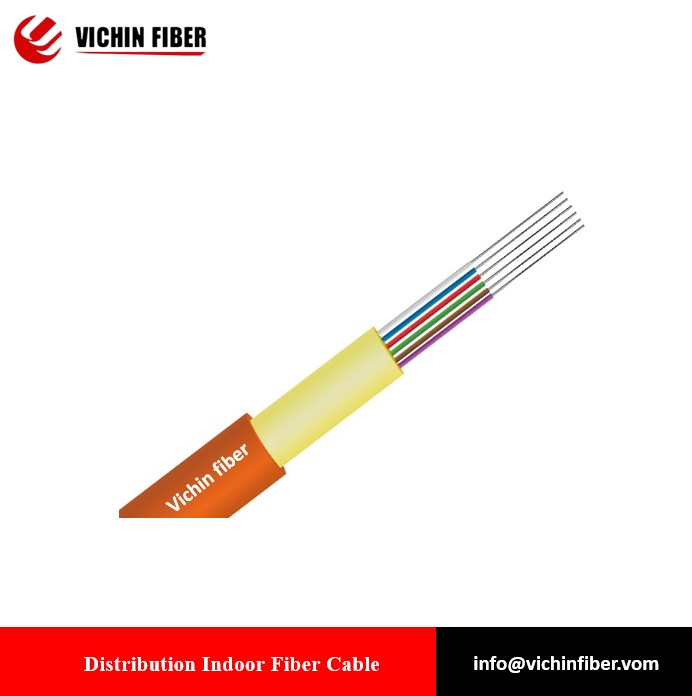

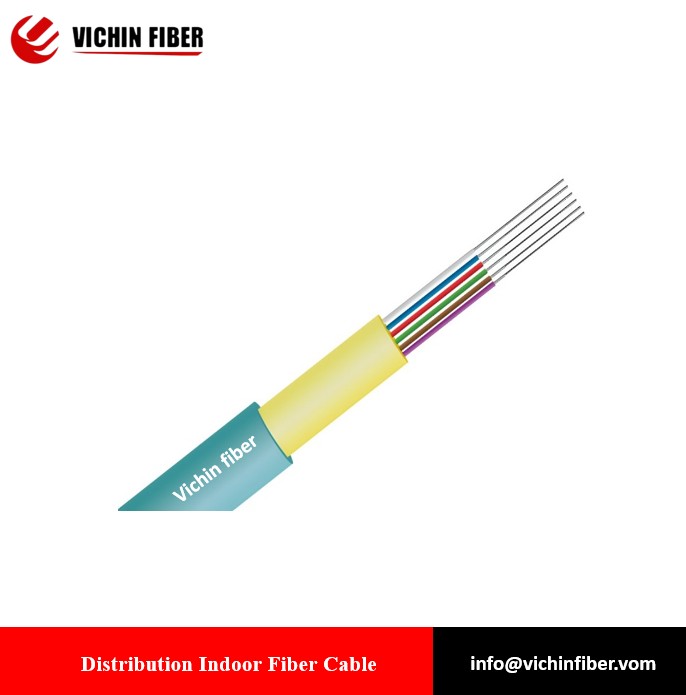

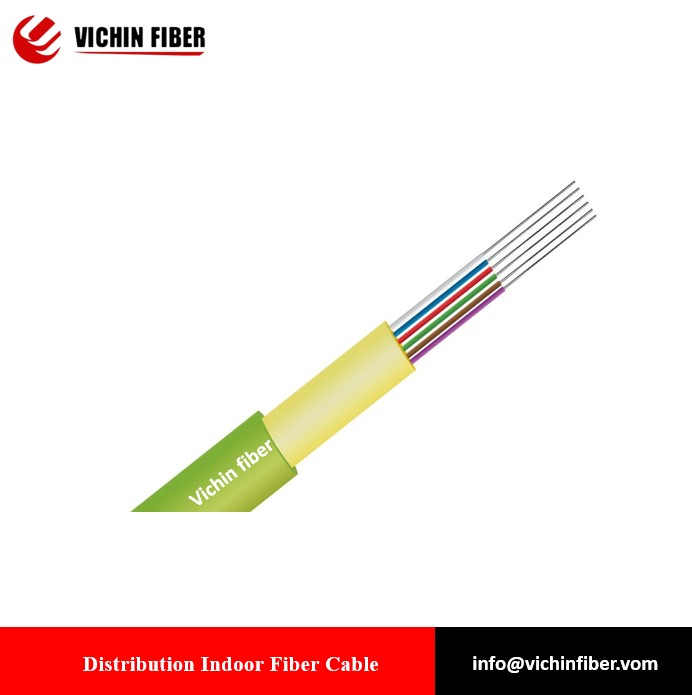

Distribution Indoor Fiber Cable（SM/OM1/OM2/OM3/OM4/OM5）
- Widely used in FTTH access network
-
Aramid yarn, LSZH Jacket
- Used in indoor cabling, especially used as breakout cable
- Used as pigtails and patch cords
- Used as access building cable
Description
Distribusi Kabel Serat Optik Dalam Ruangan（SM/OM1/OM2/OM3/OM4/OM5）
Decription:

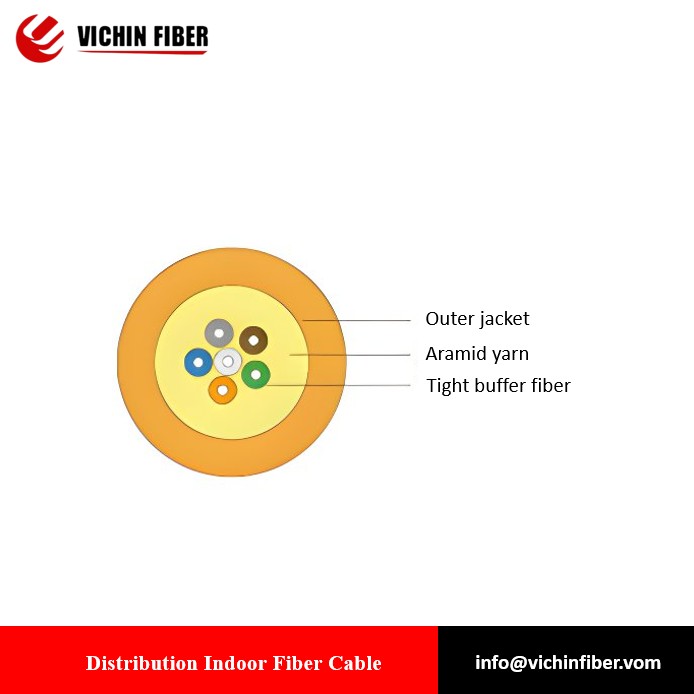

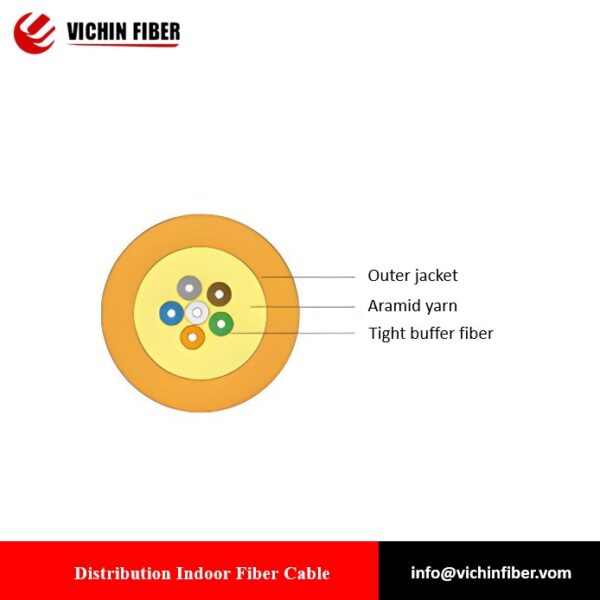

Distribution Indoor fiber Cable is a tight-buffered, multi-fiber optical cable designed for indoor use in structured cabling systems. It typically contains 2 to 144 fibers bundled within a single jacket, making it ideal for high-density installations in buildings, data centers, and telecom rooms.Unlike loose-tube cables (used outdoors), distribution cables have individually coated fibersfor better protection and easier termination.
Technical Parameters:
| Item | Parameter | ||||||||
| Fiber Core | 4 | 6 | 8 | 12 | 16 | 18 | 20 | 24 | |
| Cable Diameter(mm) | 4.7 | 5.2 | 5.8 | 6.3 | 6.9 | 7.0 | 8.0 | 8.0 | |
| Tensile Strength Horizontal(N) | Short-term | 440 | 660 | ||||||
| Long-term | 220 | 330 | |||||||
| Tensile Strength Vertical(N) | Short-term | 660 | 1320 | ||||||
| Long-term | 330 | 660 | |||||||
| Crush Resistance (N/100mm) |
Short-term | 1000 | |||||||
| Long-term | 500 | ||||||||
| Minimum Bend Radius(mm) |
Dynamic | 20D | |||||||
| Static | 10D | ||||||||
| Max Attenuation (dB/km) |
G.652（1310nm/1550nm） | 0.4/0.3 | |||||||
| G.657（1310nm/1550nm） | 0.4/0.3 | ||||||||
| 62.5µm(850nm/1300nm) | 3.5/1.5 | ||||||||
| 50µm(850nm/1300nm) | 3.5/1.5 | ||||||||
| 50µm(850nm/953nm) | 3.0/2.4 | ||||||||
| Typical Value (dB/km) |
G.652（1310nm/1550nm） | 0.36/0.22 | |||||||
| G.657（1310nm/1550nm） | 0.36/0.22 | ||||||||
| 62.5µm(850nm/1300nm) | 3.0/1.0 | ||||||||
| 50µm(850nm/1300nm) | 3.0/1.0 | ||||||||
| 50µm(850nm/953nm) | 2.6/1.9 | ||||||||
| Operation Temperature(°C) | -20~+70 | ||||||||
Features：
• Tight-Buffered design,allowing direct termination without breakout kits
• Supports 4-144 fibers in a single cable
• Simplifies identification and splicing (TIA-598 standard colors)
• Compatible with connectors (LC, SC, ST, FC etc.) for patch panels and splices
• Available in OFNR, LSZH (Low Smoke Zero Halogen) or OFNP jacket
Application：
• Data Centers
• Enterprise & Office Networks
• Fiber-to-the-Home (FTTH) / MDUs
• Telecom & Central Office
• Healthcare & Education
• Security & Surveillance Systems
