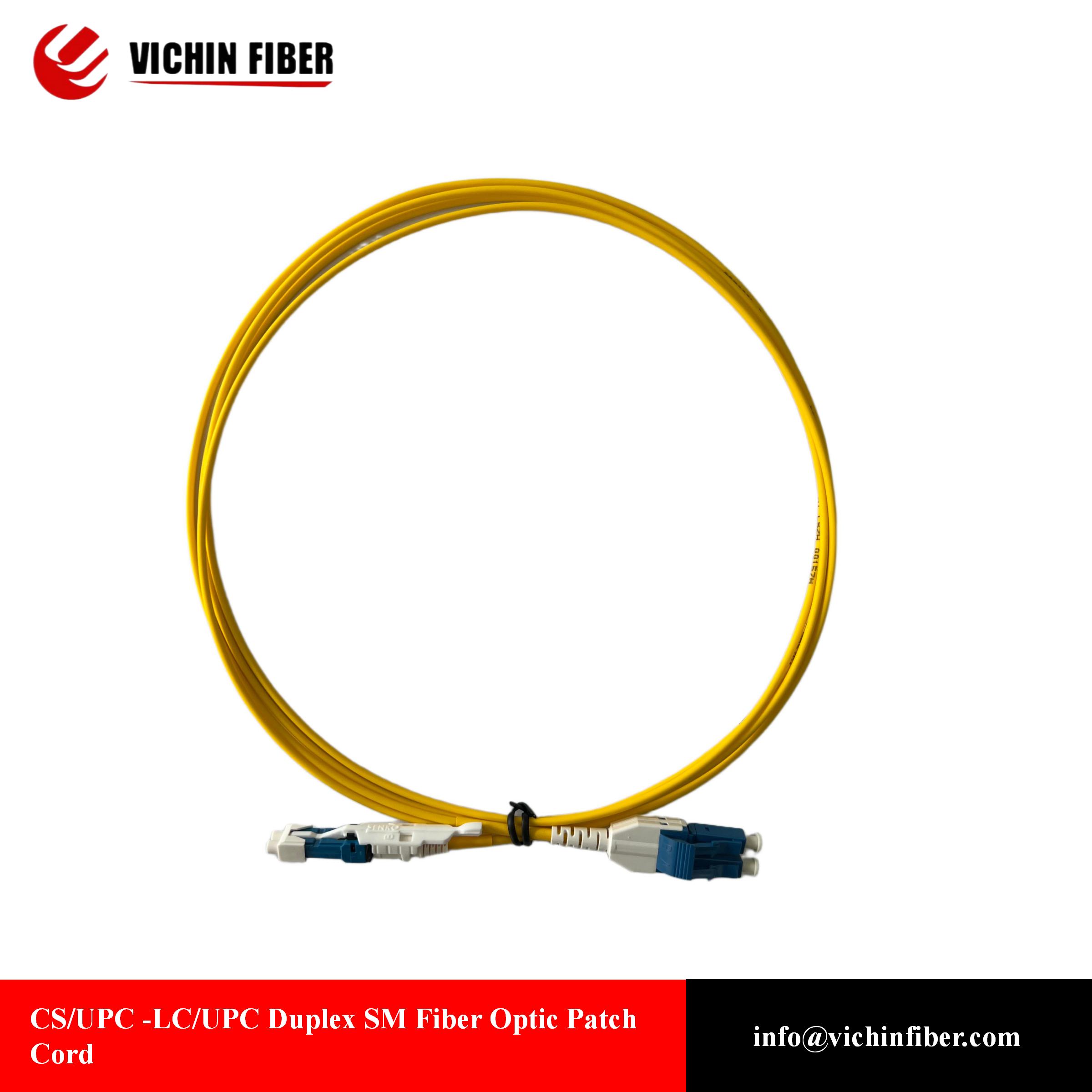

CS/UPC -LC/UPC Duplex SM Fiber Optic Patch Cord
Avec des connecteurs cs vers LC, le cordon de brassage à fibre optique monomode 9/125 µm de SINET est prêt à être déployé dans n’importe quel réseau monomode 9/125.Singlemode 9/125 cables are best used for long cable runs. This singlemode, simplex fiber cable is comprised of corning optical fiber with ceramic connectors. The connectors utilize a UPC (Ultra Physical Contact) polish which provides a better surface finish with less back reflection.
Description
Application of the product:
*Optical Fiber Communication System,
*Optical Fiber Communication System,
*Optical Fiber Access Network,
*Optical Fiber Data Transmission,
*Optical Fiber CATV, Local Area
*Network (LAN), Testing Equipment
*Network (LAN), Testing Equipment
Main technical parameters:
* Insertion loss: ≤0.25dB
* Return Loss: ≥50dB
* Exchangeability test: ≤0.2dB
* Vibration test: ≤0.1dB (10-60Hz, 1.5mm amplitude)
* Tensile strength test: ≤0.1dB (0-15Hg tension, excluding 0.9mm optical fiber)
* High temperature test: ≤0.2dB (+85 C, lasting 100 hours)
* Low temperature test: ≤0.2dB (-40 C, lasting 100 hours)
* Temperature cycling test:≤0.2dB (-40 ~85 C, after 5 cycles)
* Humidity test: ≤0.2dB (+25ºC~+65ºC, relative humidity 93%, 100 hours later)
* Return Loss: ≥50dB
* Exchangeability test: ≤0.2dB
* Vibration test: ≤0.1dB (10-60Hz, 1.5mm amplitude)
* Tensile strength test: ≤0.1dB (0-15Hg tension, excluding 0.9mm optical fiber)
* High temperature test: ≤0.2dB (+85 C, lasting 100 hours)
* Low temperature test: ≤0.2dB (-40 C, lasting 100 hours)
* Temperature cycling test:≤0.2dB (-40 ~85 C, after 5 cycles)
* Humidity test: ≤0.2dB (+25ºC~+65ºC, relative humidity 93%, 100 hours later)
