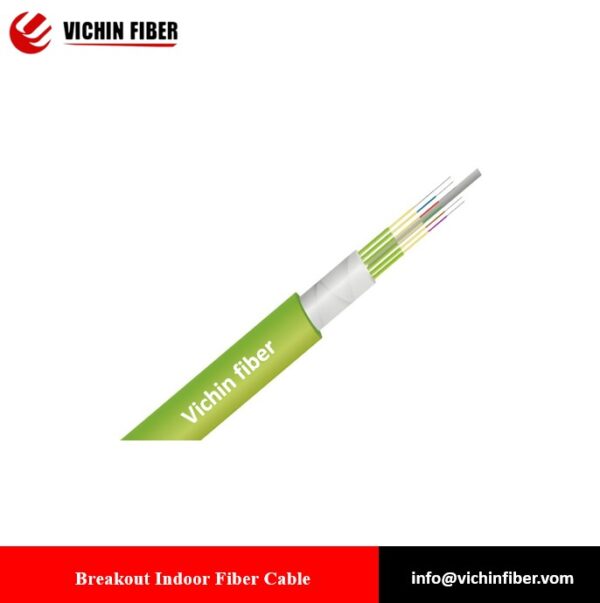

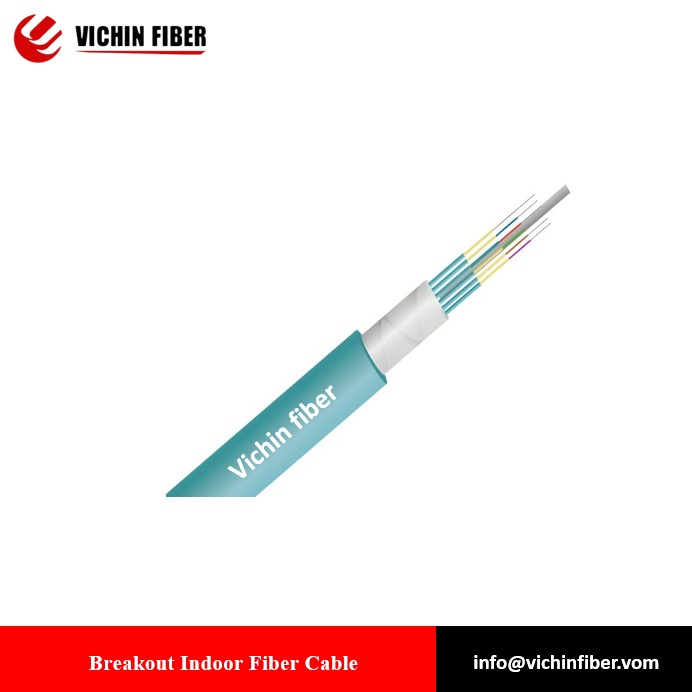

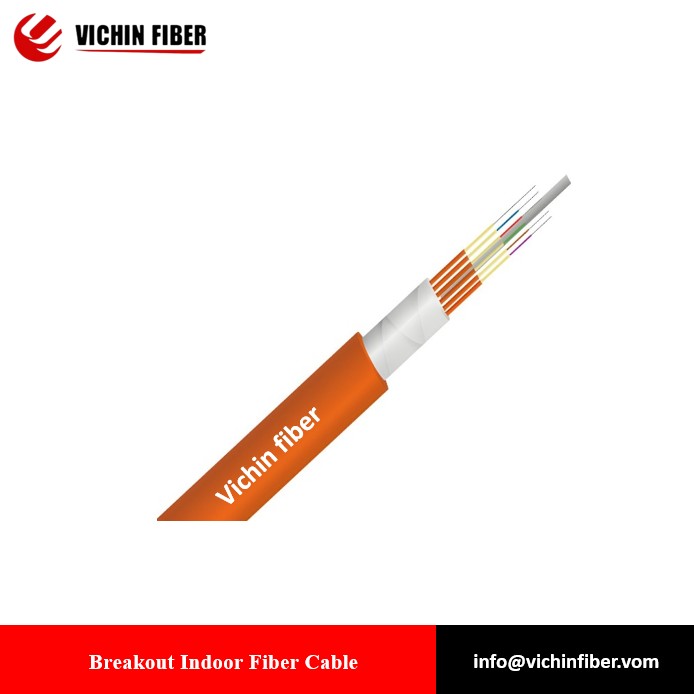

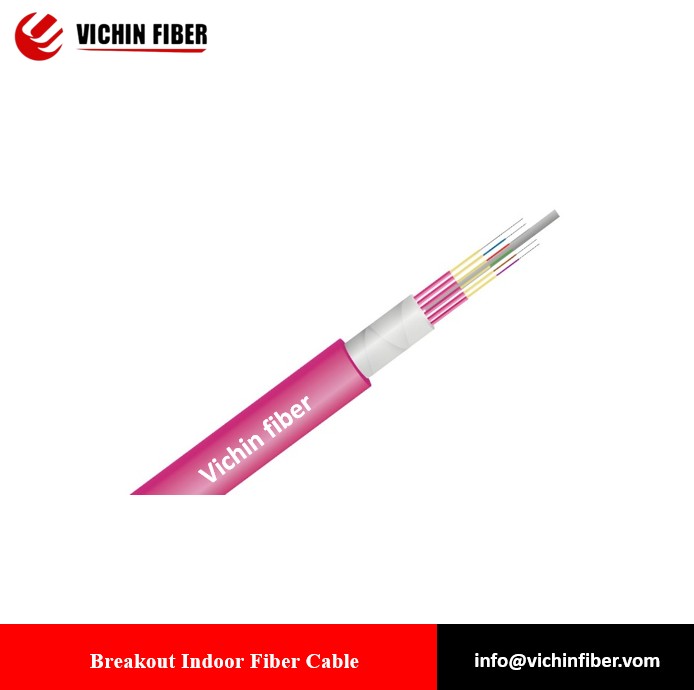

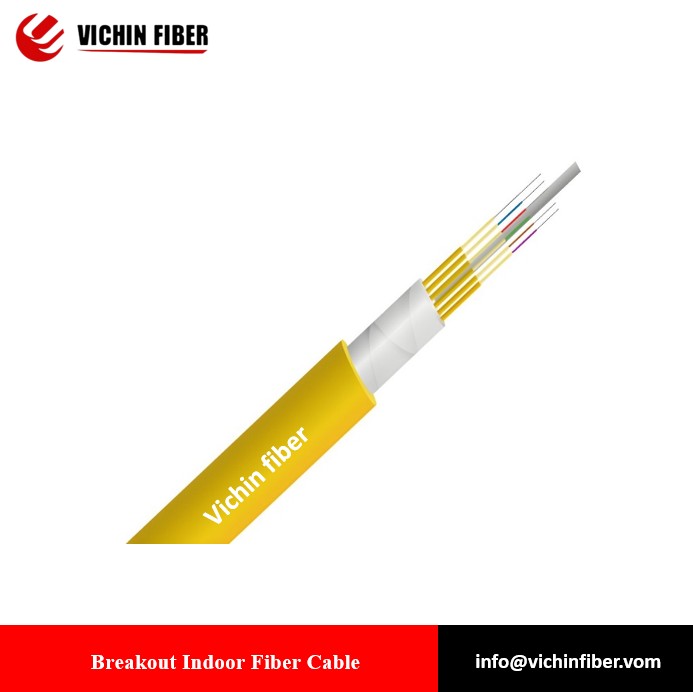

Breakout Indoor Fiber Cable（SM/OM1/OM2/OM3/OM4/OM5）
- Widely used in FTTH access network
- Telecommunication Network
- CATV Networks
- Data communications Networks
- Local area network
Description
Kabel Fiber Dalam Ruangan Breakout（SM/OM1/OM2/OM3/OM4/OM5）
Decription:

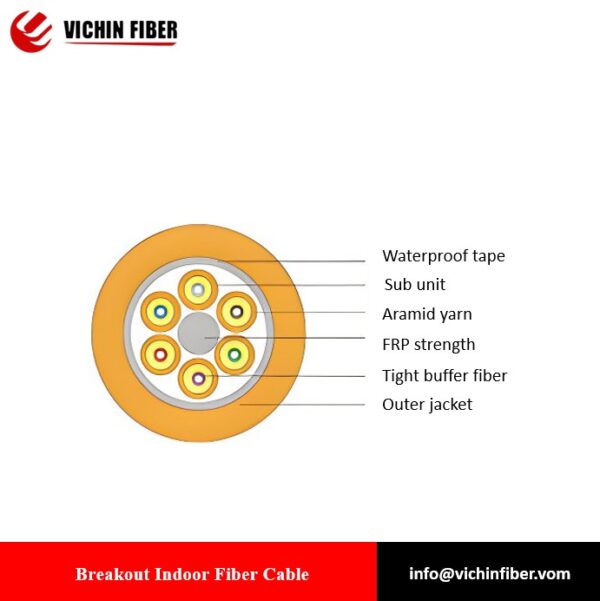

Breakout Indoor Fiber Cable is a rugged, multi-fiber cable designed for indoor use, where individual fibers need to be easily accessed and terminated. Unlike tight-buffered or distribution-style cables, breakout cables consist of multiple subunits, each containing one or more fibers with their own protective jackets. These subunits are bundled together within an outer sheath, providing
flexibility and ease of installation in environments where fibers are routed to different locations.
Technical Parameters:
| Item | Parameter | |||||||
| Fiber Core | 4 | 6 | 8 | 12 | 24 | 48 | 60 | |
| Cable Diameter(mm) | 7.5 | 8.5 | 9.5 | 12.0 | 14.5 | 19.5 | 22.0 | |
| Tensile Strength Horizontal(N) | Short-term | 400 | 800 | 660 | 1000 | 1800 | 3000 | 3600 |
| Long-term | 200 | 400 | 330 | 500 | 900 | 1500 | 1800 | |
| Tensile Strength Vertical(N) | Short-term | 450 | 650 | 850 | 1400 | 2400 | 4500 | 1000 |
| Long-term | 210 | 320 | 420 | 700 | 1200 | 2250 | 500 | |
| Crush Resistance (N/100mm) |
Short-term | 1000 | ||||||
| Long-term | 500 | |||||||
| Minimum Bend Radius(mm) |
Dynamic | 20D | ||||||
| Static | 10D | |||||||
| Max Attenuation (dB/km) |
G.652（1310nm/1550nm） | 0.4/0.3 | ||||||
| G.657（1310nm/1550nm） | 0.4/0.3 | |||||||
| 62.5µm(850nm/1300nm) | 3.5/1.5 | |||||||
| 50µm(850nm/1300nm) | 3.5/1.5 | |||||||
| 50µm(850nm/953nm) | 3.0/2.4 | |||||||
| Typical Value (dB/km) |
G.652（1310nm/1550nm） | 0.36/0.22 | ||||||
| G.657（1310nm/1550nm） | 0.36/0.22 | |||||||
| 62.5µm(850nm/1300nm) | 3.0/1.0 | |||||||
| 50µm(850nm/1300nm) | 3.0/1.0 | |||||||
| 50µm(850nm/953nm) | 2.6/1.9 | |||||||
| Operation Temperature(°C) | -20~+70 | |||||||
Features：
• Contains multiple individually jacketed fibers (often 2–12 fibers) bundled together
• Each fiber has its own tight buffer coating and strength member (aramid yarn), making it resistant to bending and crushing
• Subunits can be easily separated and terminated without needing a breakout box or furcation kit
• Suitable for vertical risers, tight spaces, and patch panels
• Available in Single-mode (OS2) or Multimode (OM1/OM2/OM3/OM4/OM5) fibers
Application：
• Data Centers
• LAN/WAN Networks
• Security Systems
• Telecommunications
• Industrial Networks
