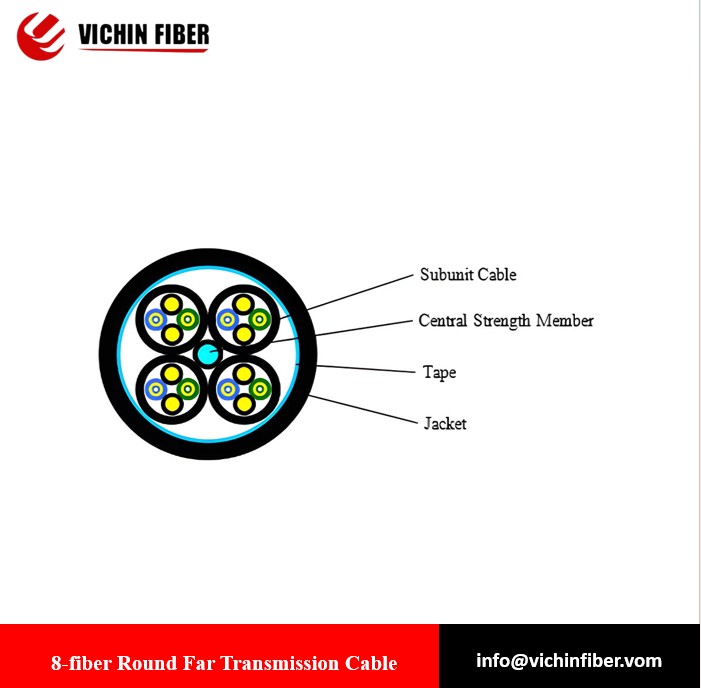

8-fiber Round Far Transmission Cable
• Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;
• Jacket Material: Enviromental flame retardant polyvinylchloride (PVC), enviromental low smoke zero halogen flame retardant polyolefin (LSZH), enviromental halogen flame retardant polyolefin (ZRPO), or other contracted material;
• Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
• Cable Dimension: The nominal cable dimension, or other contracted dimension;
Description
Kabel Transmisi Jauh Bulat 8-serat
Applications:
• Used in indoor and outdoor cabling
• Used in wireless base station(BS) horizontal and vertical cabling
Features:
• Good mechanical and environmental characteristics;
• Flame retardant characteristics meet the requirements of relevant standards;
• The mechanical characteristics of jacket meet the requirements of relevant standards;
• Soft, flexible, easy to lay and splice, and with big capacity data transmission;
• Meet various requirements of market and clients.
Specifications
| Fiber Count | Cable Dimension(mm) | Cable Weight(kg/km) | Tensile(N) | Crush(N/100mm) | Min Bend. Radius(mm) | Range of Temperature(℃) | |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 4 | 20 | 190 | 500 | 1000 | 1100 | 2200 | 20H | 10H | -20-+60 |
| Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable deimension and weight are subject to the simlex cable of 2.0mm outer diameter; 3. H is height of the flat cable; 4. The minimum bend radius(static) is 5H when G.657 fiber is used. |
|||||||||
