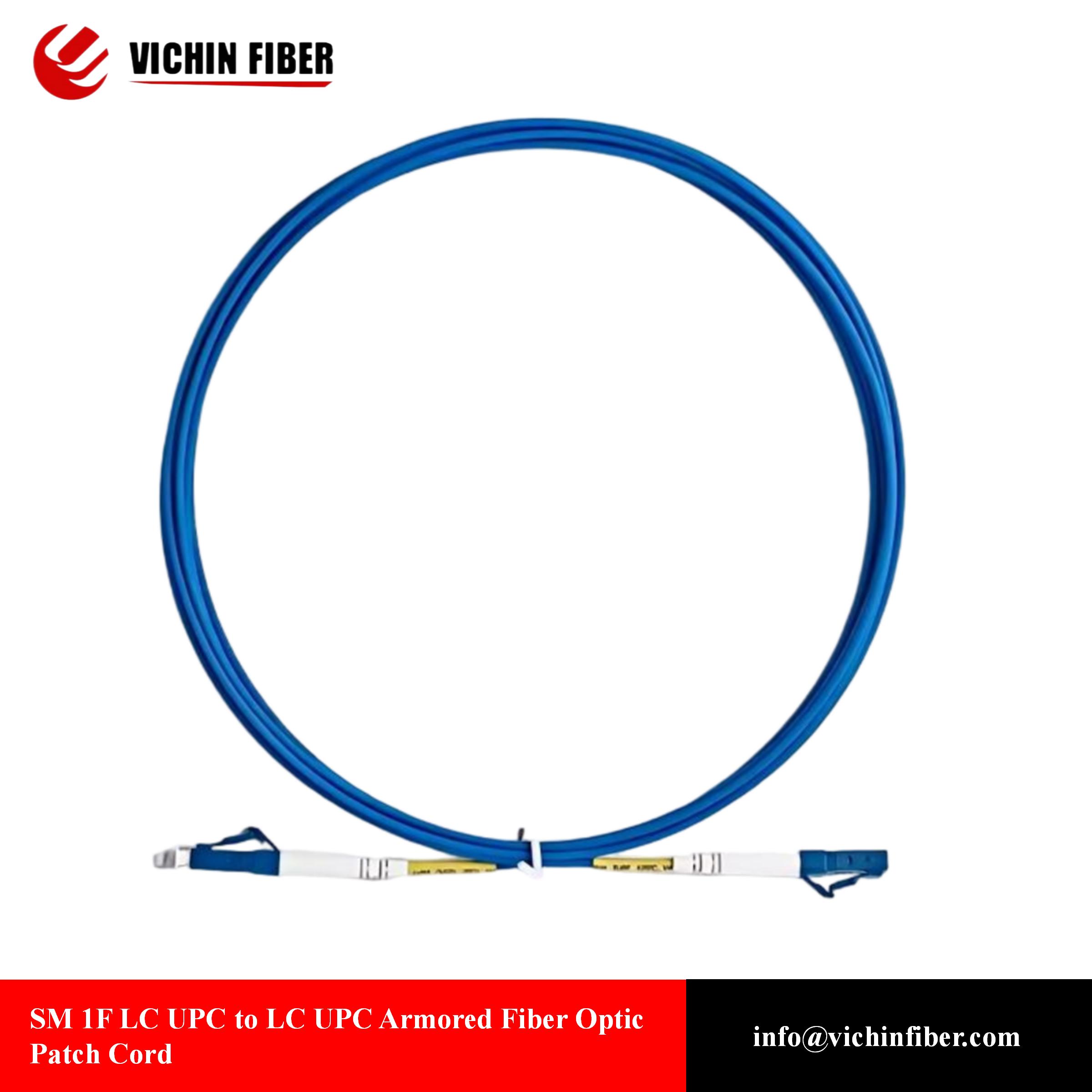

SM 1F LC UPC to LC UPC Armored Fiber Optic Patch Cord
Les câbles de brassage blindés sont constitués d’une gaine métallique logée dans une enveloppe extérieure robuste. Providing greater protection than standard cables, it enables installation in special environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.
Description
Product properties
|
MODEL NO
|
Fiber Optic Patch Cord
|
|
Fiber Type
|
Single Mode 9/125
|
|
Cable Assembilies
|
Simplex
|
|
Jacket Material
|
LSZH / Armored / UV protection
|
|
Cable Diameter (mm)
|
3.0 MM
|
|
Connector Type
|
LC / UPC
|
|
Jacket Color
|
BLACK / Customizable
|
|
Working Wavelength (nm)
|
1310/1550
|
|
Insertion Loss (dB)
|
≤0.3dB（MAX） ≤0.2dB（Typical)
|
|
Return Loss (dB)
|
UPC ≥50dB
|
|
Exchangeability
|
≤0.2dB
|
|
Operating Temperature（℃）
|
-40～85
|
|
Storage Temperature（℃）
|
-40～85
|
Feature
Low insertion loss, high return loss Good in repeatability and exchangeability High temperature stability Excellent end face geometry ISO9001:2008, ROHS
Customizable fiber cable length, jacket color, connector type and label, etc.
All products undergo 100% strict quality inspection before shipment.
